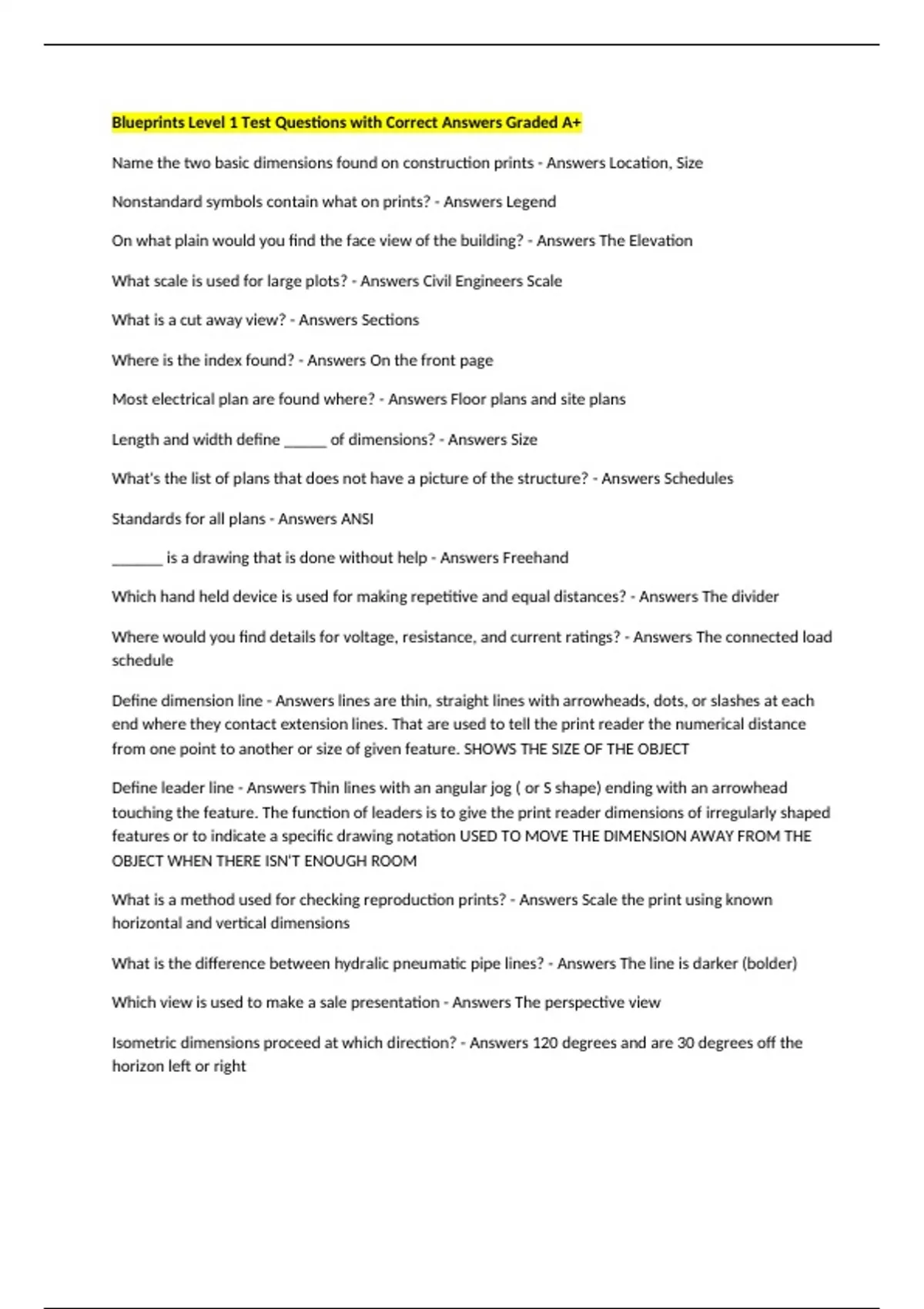

Blueprints Level 1 Test Questions with Correct Answers Graded A+
Name the two basic dimensions found on construction prints - Answers Location, Size
Nonstandard symbols contain what on prints? - Answers Legend
On what plain would you find the face view of the building? - Answers The Elevation
What scale is used for large plots? - Answers Civil Engineers Scale
What is a cut away view? - Answers Sections
Where is the index found? - Answers On the front page
Most electrical plan are found where? - Answers Floor plans and site plans
Length and width define _____ of dimensions? - Answers Size
What's the list of plans that does not have a picture of the structure? - Answers Schedules
Standards for all plans - Answers ANSI
______ is a drawing that is done without help - Answers Freehand
Which hand held device is used for making repetitive and equal distances? - Answers The divider
Where would you find details for voltage, resistance, and current ratings? - Answers The connected load
schedule
Define dimension line - Answers lines are thin, straight lines with arrowheads, dots, or slashes at each
end where they contact extension lines. That are used to tell the print reader the numerical distance
from one point to another or size of given feature. SHOWS THE SIZE OF THE OBJECT
Define leader line - Answers Thin lines with an angular jog ( or S shape) ending with an arrowhead
touching the feature. The function of leaders is to give the print reader dimensions of irregularly shaped
features or to indicate a specific drawing notation USED TO MOVE THE DIMENSION AWAY FROM THE
OBJECT WHEN THERE ISN'T ENOUGH ROOM
What is a method used for checking reproduction prints? - Answers Scale the print using known
horizontal and vertical dimensions
What is the difference between hydralic pneumatic pipe lines? - Answers The line is darker (bolder)
Which view is used to make a sale presentation - Answers The perspective view
Isometric dimensions proceed at which direction? - Answers 120 degrees and are 30 degrees off the
horizon left or right
Name the two basic dimensions found on construction prints - Answers Location, Size
Nonstandard symbols contain what on prints? - Answers Legend
On what plain would you find the face view of the building? - Answers The Elevation
What scale is used for large plots? - Answers Civil Engineers Scale
What is a cut away view? - Answers Sections
Where is the index found? - Answers On the front page
Most electrical plan are found where? - Answers Floor plans and site plans
Length and width define _____ of dimensions? - Answers Size
What's the list of plans that does not have a picture of the structure? - Answers Schedules
Standards for all plans - Answers ANSI
______ is a drawing that is done without help - Answers Freehand
Which hand held device is used for making repetitive and equal distances? - Answers The divider
Where would you find details for voltage, resistance, and current ratings? - Answers The connected load
schedule
Define dimension line - Answers lines are thin, straight lines with arrowheads, dots, or slashes at each
end where they contact extension lines. That are used to tell the print reader the numerical distance
from one point to another or size of given feature. SHOWS THE SIZE OF THE OBJECT
Define leader line - Answers Thin lines with an angular jog ( or S shape) ending with an arrowhead
touching the feature. The function of leaders is to give the print reader dimensions of irregularly shaped
features or to indicate a specific drawing notation USED TO MOVE THE DIMENSION AWAY FROM THE
OBJECT WHEN THERE ISN'T ENOUGH ROOM
What is a method used for checking reproduction prints? - Answers Scale the print using known
horizontal and vertical dimensions
What is the difference between hydralic pneumatic pipe lines? - Answers The line is darker (bolder)
Which view is used to make a sale presentation - Answers The perspective view
Isometric dimensions proceed at which direction? - Answers 120 degrees and are 30 degrees off the
horizon left or right
