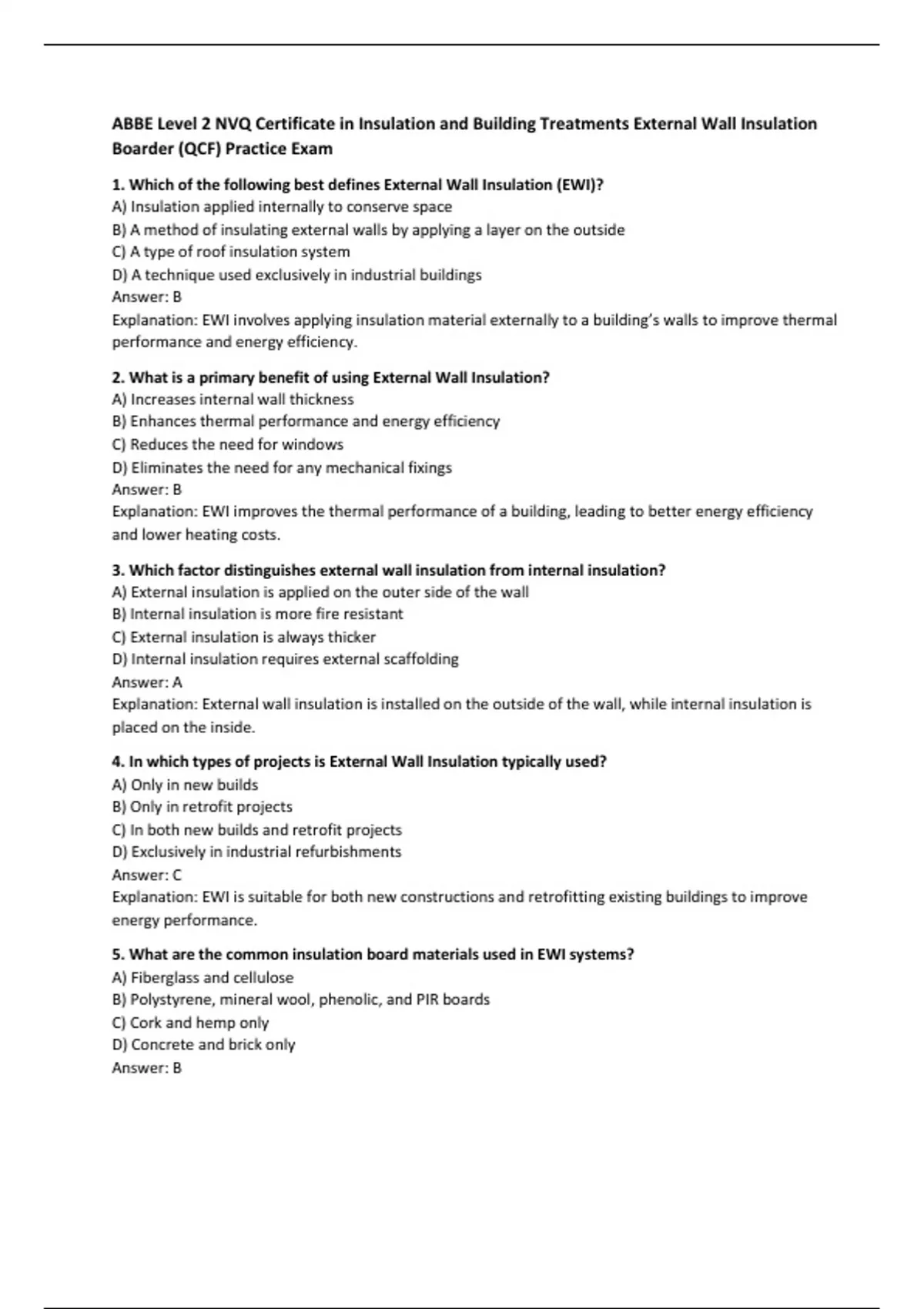

ABBE Level 2 NVQ Certificate in Insulation and Building Treatments External Wall Insulation Boarder (QCF) Practice Exam

1. Introduction to External Wall Insulation • Overview of External Wall Insulation (EWI): o Definition and importance of EWI in modern construction o Benefits of EWI for energy efficiency, thermal performance, and environmental sustainability o Differences between external wall insulation and internal insulation o Applications of external wall insulation in both new builds and retrofit projects • Types of External Wall Insulation Systems: o Insulated render systems o Cladding systems o Brick slips and alternative cladding options o Key materials used in external wall insulation: polystyrene, mineral wool, phenolic, and PIR boards o Moisture-resistant and fire-resistant boards and their applications • The Role of an External Wall Insulation Boarder: o Job description and key responsibilities of an external wall insulation boarder o Understanding the role in the installation process and collaboration with other trades o Health, safety, and environmental considerations for external wall insulation projects 2. Preparation and Planning for EWI Installation • Site Assessment and Preparation: o Evaluating the condition of existing external walls o Identifying and addressing defects such as dampness, cracks, or unstable surfaces o Site layout and planning for safe working practices o Setting out reference lines and marking areas for EWI installation • Material Selection and Calculation: o Choosing appropriate insulation boards based on wall type, location, and thermal requirements o Understanding U-values and thermal performance requirements for insulation materials o Calculation of material quantities and estimating the number of boards needed o Ordering and managing materials for the project, ensuring correct delivery • Health and Safety Planning: o Site safety protocols and risk assessments for external wall insulation projects o Ensuring proper personal protective equipment (PPE) for boarders o Working at height safety considerations and the use of scaffolding o Safe handling of insulation materials and tools 3. Tools, Equipment, and Materials for EWI Installation • Tools and Equipment for Board Installation: o Measuring tools: tape measures, spirit levels, and laser levels o Cutting tools: saws, knives, and specialized insulation cutters o Adhesive and fixing tools: notched trowels, adhesive sprayers, and drills for mechanical fixings o Safety equipment: scaffolding, ladders, harnesses, and fall protection gear • Insulation Materials: o Types of insulation boards used in EWI systems (e.g., expanded polystyrene (EPS), mineral wool, and polyisocyanurate (PIR) boards) o Characteristics of materials, including thermal performance, fire rating, and moisture resistance o Preparing and checking insulation boards before installation o Understanding the environmental impact and sustainability of insulation materials • Additional Materials and Components: o Render mixes and bonding agents for insulation board application o Fixings and mechanical fasteners (e.g., insulation anchors, plugs, and screws) o External finishing materials, including base coats, reinforcement mesh, and decorative finishes o Waterproofing and moisture control solutions to prevent damage to insulation systems 4. External Wall Insulation Installation Techniques • Surface Preparation: o Cleaning and priming surfaces before applying insulation boards o Removing obstructions and ensuring the surface is level and sound o Preparing walls for bonding agents or mechanical fixing systems • Boarding the External Wall: o Techniques for applying adhesive to insulation boards and securing them to the wall o Correct positioning and alignment of boards to ensure seamless coverage o Cutting and shaping boards to fit around windows, doors, and corners o Handling challenges such as non-square walls, gaps, and irregularities in surface • Mechanical Fixing of Insulation Boards: o Types of mechanical fixings and their installation methods (e.g., anchors, screws, plugs) o Fixing methods for different types of wall substrates (brick, concrete, timber-frame) o Ensuring the correct number and distribution of fixings for secure installation o Checking for thermal bridging and minimizing energy loss through fixings • Jointing and Sealing: o Techniques for sealing joints between boards to maintain thermal integrity o Using jointing compounds or tapes to ensure a tight seal o Methods for reinforcing joints to prevent cracking and water ingress o Checking alignment and finishes to ensure a smooth surface for further coatings 5. Reinforcement and Base Coat Application • Base Coat Preparation: o Mixing and applying the base coat material over the insulation boards o Importance of an even and consistent application to ensure proper adhesion of the subsequent layers o Application techniques for smooth and level surfaces o Curing time and conditions before proceeding to the next phase • Reinforcement Mesh Installation: o Role of mesh in reinforcing the base coat and preventing cracking o Techniques for embedding mesh within the base coat to ensure it is properly anchored o Types of reinforcement mesh (e.g., fiberglass, polyester) and their properties o Correct positioning of mesh over joints, corners, and edges to ensure maximum strength • Checking for Defects: o Inspecting the base coat and mesh application for defects such as bubbles, uneven coverage, or gaps o Ensuring the surface is level and suitable for the next finishing layer 6. Finishing and External Wall Coatings • Render Application: o Applying the render finish to the base coat and mesh system o Types of renders used in EWI (e.g., silicone, acrylic, and mineral-based renders) o Techniques for applying smooth, textured, or patterned finishes o Ensuring proper thickness and uniformity of the render layer • Final Sealing and Weatherproofing: o Methods for sealing around window and door openings, corners, and edges o Use of weatherproof coatings to protect the external wall insulation system from moisture o Techniques for ensuring long-lasting, durable finishes o Ensuring that all render surfaces are free from defects and are fully cured • Decorative Finishes: o Options for decorative finishes on external wall insulation systems (e.g., color render, brick slips, cladding) o Surface treatments to enhance aesthetic appeal and protect against environmental factors o Applying protective coatings for UV protection and enhanced durability 7. Post-Installation Procedures and Maintenance • Quality Control and Inspection: o Inspecting the finished installation for alignment, coverage, and surface smoothness o Checking for defects or areas requiring touch-up o Conducting final checks on adhesion, render quality, and finishing o Documenting the installation process and ensuring compliance with project specifications • Maintenance of External Wall Insulation Systems: o Routine maintenance practices for keeping EWI systems in good condition o Identifying and addressing issues such as cracks, damage, or degradation over time o Cleaning methods for maintaining the aesthetic and functional performance of EWI systems o Importance of regular inspections and re-coating to preserve insulation effectiveness • Troubleshooting Common Issues: o Identifying and addressing common problems such as poor adhesion, cracking, or water ingress o Solutions for common defects such as blisters, bubbling, or delamination o Preventing and managing thermal bridging or moisture-related issues 8. Health, Safety, and Environmental Considerations • Health and Safety Regulations: o Risk assessments and safe working practices for EWI projects o Ensuring compliance with health and safety legislation (e.g., Work at Height Regulations, COSHH) o Correct use of scaffolding, ladders, and lifting equipment o Preventing accidents and injuries related to the handling of insulation materials and render systems • Environmental Impact: o Sustainability of materials and methods used in external wall insulation o Managing waste and ensuring environmentally-friendly disposal of materials o Minimizing energy consumption and reducing environmental impact of EWI systems • Personal Protective Equipment (PPE): o Correct use of PPE, including gloves, safety glasses, helmets, and respiratory protection o Maintaining proper hygiene and safety standards on site o Safe handling of hazardous materials and tools
