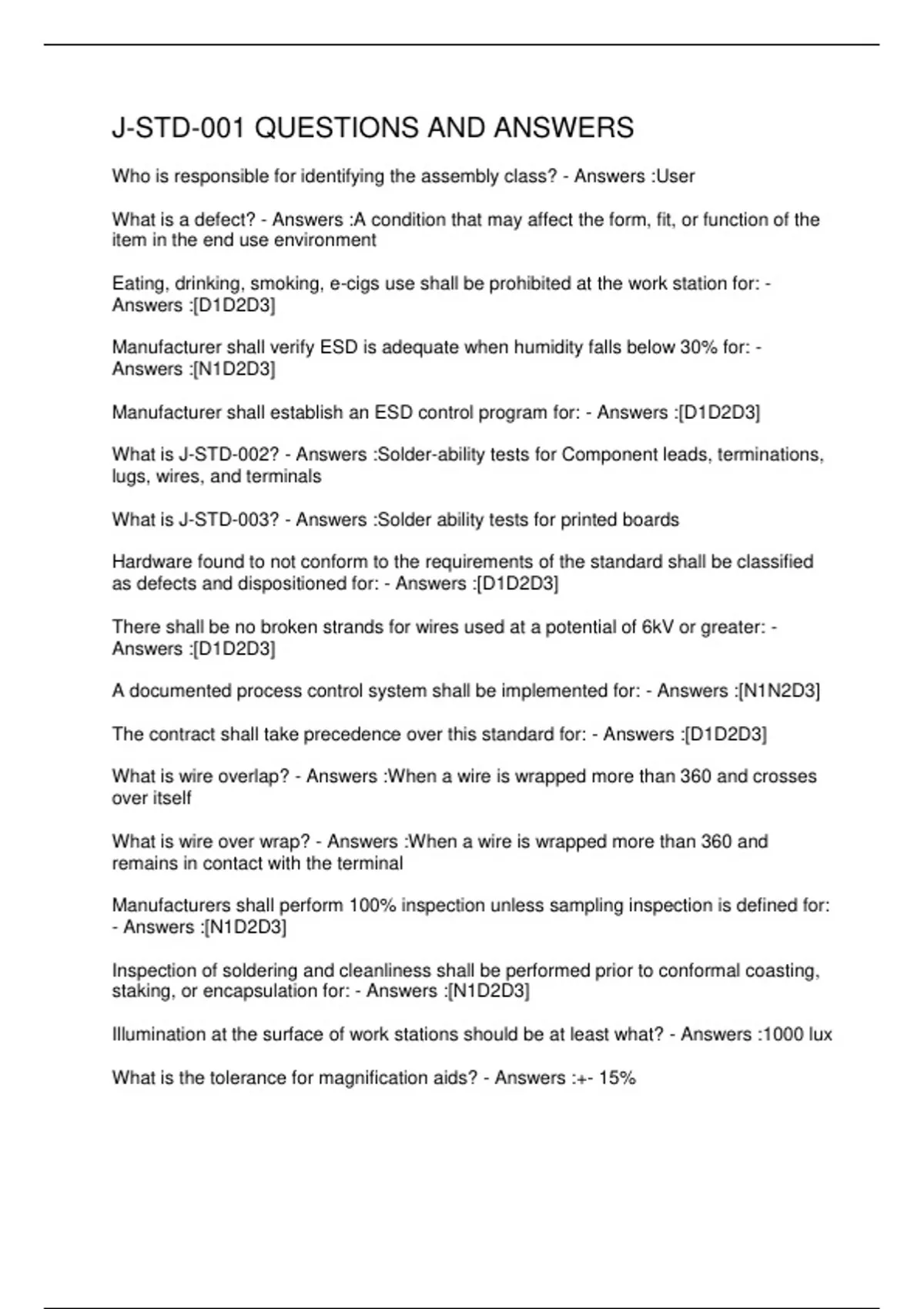

J-STD-001 QUESTIONS AND ANSWERS
Who is responsible for identifying the assembly class? - Answers :User
What is a defect? - Answers :A condition that may affect the form, fit, or function of the
item in the end use environment
Eating, drinking, smoking, e-cigs use shall be prohibited at the work station for: -
Answers :[D1D2D3]
Manufacturer shall verify ESD is adequate when humidity falls below 30% for: -
Answers :[N1D2D3]
Manufacturer shall establish an ESD control program for: - Answers :[D1D2D3]
What is J-STD-002? - Answers :Solder-ability tests for Component leads, terminations,
lugs, wires, and terminals
What is J-STD-003? - Answers :Solder ability tests for printed boards
Hardware found to not conform to the requirements of the standard shall be classified
as defects and dispositioned for: - Answers :[D1D2D3]
There shall be no broken strands for wires used at a potential of 6kV or greater: -
Answers :[D1D2D3]
A documented process control system shall be implemented for: - Answers :[N1N2D3]
The contract shall take precedence over this standard for: - Answers :[D1D2D3]
What is wire overlap? - Answers :When a wire is wrapped more than 360 and crosses
over itself
What is wire over wrap? - Answers :When a wire is wrapped more than 360 and
remains in contact with the terminal
Manufacturers shall perform 100% inspection unless sampling inspection is defined for:
- Answers :[N1D2D3]
Inspection of soldering and cleanliness shall be performed prior to conformal coasting,
staking, or encapsulation for: - Answers :[N1D2D3]
Illumination at the surface of work stations should be at least what? - Answers :1000 lux
What is the tolerance for magnification aids? - Answers :+- 15%
, What is J-STD-004? - Answers :Requirements for Soldering Fluxes
What is J-STD-005? - Answers :Requirements for Soldering Paste
What is J-STD-006? - Answers :Requirements for electronic grade solder alloys, fluxed
and non-fluxed solid solders
Manufacturers shall have a Pb-free control plan for: - Answers :[N1N2D3]
Items exposed to uncured silicone material shall not be used for processing other
material for: - Answers :[D1D2D3]
Solder alloys shall be in accordance with J-STD-006 or equivalent for: - Answers
:[D1D2D3]
Solder paste shall be in accordance with J-STD-005 or equivalent for: - Answers
:[D1D2D3]
Pb-free processing shall be in accordance with a documental procedure for: - Answers
:[N1D2D3]
SnPb solder alloys other than ... shall be in compliance for: - Answers :[N1D2D3]
Dross shall be removed from the solder surface without contacting tinned or soldered
items for: - Answers :[N1D2D3]
Type H or M fluxes shall not be used for tinning of stranded wires for: - Answers
:[D1D2D3]
Flux shall be in accordance with J-STD-004 or equivalent for: - Answers :[D1D2D3]
Adhesives shall not be detrimental and shall be cured for: - Answers :[D1D2D3]
Component coating meniscus shall not be trimmed for: - Answers :[N1D2D3]
A tool used to cut leads shall not impart shock that damages something for: - Answers
:[D1D2D3]
Loss of metallization as a result of processing shall not expose ceramic on terminal end
face ... for: - Answers :[D1D2D3]
Strands wire shall not be tinned when wires will be used in forming mesh splices, crimp
termination, or threaded fasteners for: - Answers :[D1D2D3]
Wire strands shall not be altered or cut to fit terminals for: - Answers :[A1D2D3]
