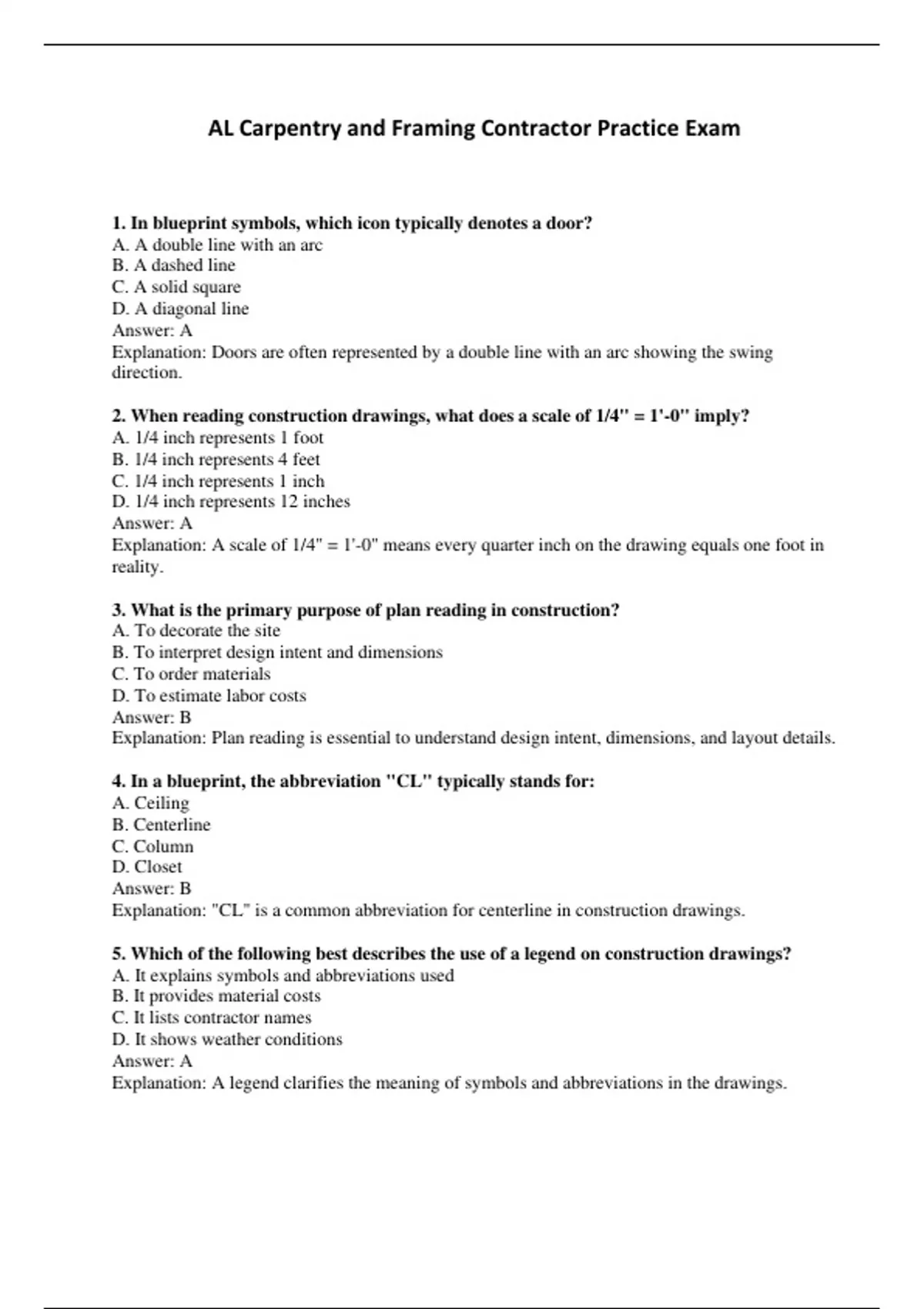

AL Carpentry and Framing Contractor Practice Exam
1. In blueprint symbols, which icon typically denotes a door?
A. A double line with an arc
B. A dashed line
C. A solid square
D. A diagonal line
Answer: A
Explanation: Doors are often represented by a double line with an arc showing the swing
direction.
2. When reading construction drawings, what does a scale of 1/4" = 1'-0" imply?
A. 1/4 inch represents 1 foot
B. 1/4 inch represents 4 feet
C. 1/4 inch represents 1 inch
D. 1/4 inch represents 12 inches
Answer: A
Explanation: A scale of 1/4" = 1'-0" means every quarter inch on the drawing equals one foot in
reality.
3. What is the primary purpose of plan reading in construction?
A. To decorate the site
B. To interpret design intent and dimensions
C. To order materials
D. To estimate labor costs
Answer: B
Explanation: Plan reading is essential to understand design intent, dimensions, and layout details.
4. In a blueprint, the abbreviation "CL" typically stands for:
A. Ceiling
B. Centerline
C. Column
D. Closet
Answer: B
Explanation: "CL" is a common abbreviation for centerline in construction drawings.
5. Which of the following best describes the use of a legend on construction drawings?
A. It explains symbols and abbreviations used
B. It provides material costs
C. It lists contractor names
D. It shows weather conditions
Answer: A
Explanation: A legend clarifies the meaning of symbols and abbreviations in the drawings.
,6. What is the importance of understanding notations on a blueprint?
A. They indicate project deadlines
B. They provide technical instructions and clarifications
C. They determine building permits
D. They list the project budget
Answer: B
Explanation: Notations provide important technical instructions and clarifications for
construction.
7. What does the term 'floor plan' refer to in architectural drawings?
A. A diagram of the roof structure
B. A horizontal layout of spaces at a particular level
C. A section of a foundation
D. A color-coded chart
Answer: B
Explanation: A floor plan is a horizontal cut-through of a building showing the layout of rooms.
8. When examining a construction drawing, which detail is critical for proper installation
of structural components?
A. The title block
B. The scale
C. The color scheme
D. The logo
Answer: B
Explanation: The scale is critical to interpret dimensions and ensure proper installation of
structural elements.
9. What does the abbreviation 'RCP' stand for on construction plans?
A. Roof Copy
B. Reflected Ceiling Plan
C. Rebar Connection Point
D. Running Cost Projection
Answer: B
Explanation: RCP stands for Reflected Ceiling Plan, which details ceiling layout and fixtures.
10. In plan reading, which of the following is essential for understanding material
specifications?
A. Reading the title block only
B. Interpreting the notes and legends
C. Ignoring the scale
D. Focusing solely on dimensions
Answer: B
Explanation: Notes and legends often contain essential information about materials and
specifications.
,11. Which tool is most commonly used to measure distances on blueprints?
A. Hammer
B. Scale ruler
C. Tape measure
D. Protractor
Answer: B
Explanation: A scale ruler is specifically designed to measure scaled dimensions on blueprints.
12. What does a section drawing illustrate in a set of construction plans?
A. The exterior facade
B. A vertical cut-through of the structure
C. Electrical layouts
D. Interior decoration details
Answer: B
Explanation: Section drawings show a vertical slice of the building to reveal interior details.
13. Why is it important to check for revision blocks on a blueprint?
A. They determine the building color
B. They indicate changes made to the original design
C. They contain contractor ratings
D. They are decorative elements
Answer: B
Explanation: Revision blocks indicate modifications to the design, ensuring the latest
information is used.
14. Which line type is often used to represent hidden details in a blueprint?
A. Solid line
B. Dashed line
C. Bold line
D. Wavy line
Answer: B
Explanation: Dashed lines are typically used to represent hidden or obscured features.
15. What is the significance of a title block in a construction drawing?
A. It provides project information and drawing details
B. It lists the safety guidelines
C. It indicates the best materials
D. It is used for decoration
Answer: A
Explanation: The title block contains key project details such as project name, date, and scale.
16. In a blueprint, what does the abbreviation 'TYP' mean?
A. Temporary
B. Typical
C. Type of material
D. Top yield
, Answer: B
Explanation: 'TYP' stands for typical, indicating that the detail is repeated in similar instances.
17. How can a construction professional verify dimensions provided in a plan?
A. By guessing the measurements
B. By using a scale and comparing with known dimensions
C. By reading the legend only
D. By relying on memory
Answer: B
Explanation: Using a scale and comparing to known dimensions ensures accurate verification.
18. When reading blueprints, what does the scale conversion ensure?
A. That the design is aesthetically pleasing
B. That the real-life dimensions are correctly interpreted
C. That the materials are of high quality
D. That the project is under budget
Answer: B
Explanation: Scale conversion helps translate drawing measurements into real-life dimensions.
19. What does the presence of detailed annotations on a blueprint suggest?
A. Lack of clarity
B. Clear communication of design intent
C. Redundancy in information
D. Extra cost estimates
Answer: B
Explanation: Detailed annotations improve understanding and communicate design intent
clearly.
20. In plan reading, which of the following is least likely to be found on the drawing?
A. Electrical outlet locations
B. Structural beam sizes
C. Weather forecasts
D. Material specifications
Answer: C
Explanation: Weather forecasts are not typically included in construction blueprints.
21. Which feature is important for identifying structural load paths on a blueprint?
A. Decorative patterns
B. Beam and column layouts
C. Window placements
D. Furniture arrangements
Answer: B
Explanation: Beam and column layouts indicate the paths through which loads are transferred.
22. When reviewing construction drawings, why is it critical to understand the symbols
used for materials?
1. In blueprint symbols, which icon typically denotes a door?
A. A double line with an arc
B. A dashed line
C. A solid square
D. A diagonal line
Answer: A
Explanation: Doors are often represented by a double line with an arc showing the swing
direction.
2. When reading construction drawings, what does a scale of 1/4" = 1'-0" imply?
A. 1/4 inch represents 1 foot
B. 1/4 inch represents 4 feet
C. 1/4 inch represents 1 inch
D. 1/4 inch represents 12 inches
Answer: A
Explanation: A scale of 1/4" = 1'-0" means every quarter inch on the drawing equals one foot in
reality.
3. What is the primary purpose of plan reading in construction?
A. To decorate the site
B. To interpret design intent and dimensions
C. To order materials
D. To estimate labor costs
Answer: B
Explanation: Plan reading is essential to understand design intent, dimensions, and layout details.
4. In a blueprint, the abbreviation "CL" typically stands for:
A. Ceiling
B. Centerline
C. Column
D. Closet
Answer: B
Explanation: "CL" is a common abbreviation for centerline in construction drawings.
5. Which of the following best describes the use of a legend on construction drawings?
A. It explains symbols and abbreviations used
B. It provides material costs
C. It lists contractor names
D. It shows weather conditions
Answer: A
Explanation: A legend clarifies the meaning of symbols and abbreviations in the drawings.
,6. What is the importance of understanding notations on a blueprint?
A. They indicate project deadlines
B. They provide technical instructions and clarifications
C. They determine building permits
D. They list the project budget
Answer: B
Explanation: Notations provide important technical instructions and clarifications for
construction.
7. What does the term 'floor plan' refer to in architectural drawings?
A. A diagram of the roof structure
B. A horizontal layout of spaces at a particular level
C. A section of a foundation
D. A color-coded chart
Answer: B
Explanation: A floor plan is a horizontal cut-through of a building showing the layout of rooms.
8. When examining a construction drawing, which detail is critical for proper installation
of structural components?
A. The title block
B. The scale
C. The color scheme
D. The logo
Answer: B
Explanation: The scale is critical to interpret dimensions and ensure proper installation of
structural elements.
9. What does the abbreviation 'RCP' stand for on construction plans?
A. Roof Copy
B. Reflected Ceiling Plan
C. Rebar Connection Point
D. Running Cost Projection
Answer: B
Explanation: RCP stands for Reflected Ceiling Plan, which details ceiling layout and fixtures.
10. In plan reading, which of the following is essential for understanding material
specifications?
A. Reading the title block only
B. Interpreting the notes and legends
C. Ignoring the scale
D. Focusing solely on dimensions
Answer: B
Explanation: Notes and legends often contain essential information about materials and
specifications.
,11. Which tool is most commonly used to measure distances on blueprints?
A. Hammer
B. Scale ruler
C. Tape measure
D. Protractor
Answer: B
Explanation: A scale ruler is specifically designed to measure scaled dimensions on blueprints.
12. What does a section drawing illustrate in a set of construction plans?
A. The exterior facade
B. A vertical cut-through of the structure
C. Electrical layouts
D. Interior decoration details
Answer: B
Explanation: Section drawings show a vertical slice of the building to reveal interior details.
13. Why is it important to check for revision blocks on a blueprint?
A. They determine the building color
B. They indicate changes made to the original design
C. They contain contractor ratings
D. They are decorative elements
Answer: B
Explanation: Revision blocks indicate modifications to the design, ensuring the latest
information is used.
14. Which line type is often used to represent hidden details in a blueprint?
A. Solid line
B. Dashed line
C. Bold line
D. Wavy line
Answer: B
Explanation: Dashed lines are typically used to represent hidden or obscured features.
15. What is the significance of a title block in a construction drawing?
A. It provides project information and drawing details
B. It lists the safety guidelines
C. It indicates the best materials
D. It is used for decoration
Answer: A
Explanation: The title block contains key project details such as project name, date, and scale.
16. In a blueprint, what does the abbreviation 'TYP' mean?
A. Temporary
B. Typical
C. Type of material
D. Top yield
, Answer: B
Explanation: 'TYP' stands for typical, indicating that the detail is repeated in similar instances.
17. How can a construction professional verify dimensions provided in a plan?
A. By guessing the measurements
B. By using a scale and comparing with known dimensions
C. By reading the legend only
D. By relying on memory
Answer: B
Explanation: Using a scale and comparing to known dimensions ensures accurate verification.
18. When reading blueprints, what does the scale conversion ensure?
A. That the design is aesthetically pleasing
B. That the real-life dimensions are correctly interpreted
C. That the materials are of high quality
D. That the project is under budget
Answer: B
Explanation: Scale conversion helps translate drawing measurements into real-life dimensions.
19. What does the presence of detailed annotations on a blueprint suggest?
A. Lack of clarity
B. Clear communication of design intent
C. Redundancy in information
D. Extra cost estimates
Answer: B
Explanation: Detailed annotations improve understanding and communicate design intent
clearly.
20. In plan reading, which of the following is least likely to be found on the drawing?
A. Electrical outlet locations
B. Structural beam sizes
C. Weather forecasts
D. Material specifications
Answer: C
Explanation: Weather forecasts are not typically included in construction blueprints.
21. Which feature is important for identifying structural load paths on a blueprint?
A. Decorative patterns
B. Beam and column layouts
C. Window placements
D. Furniture arrangements
Answer: B
Explanation: Beam and column layouts indicate the paths through which loads are transferred.
22. When reviewing construction drawings, why is it critical to understand the symbols
used for materials?
