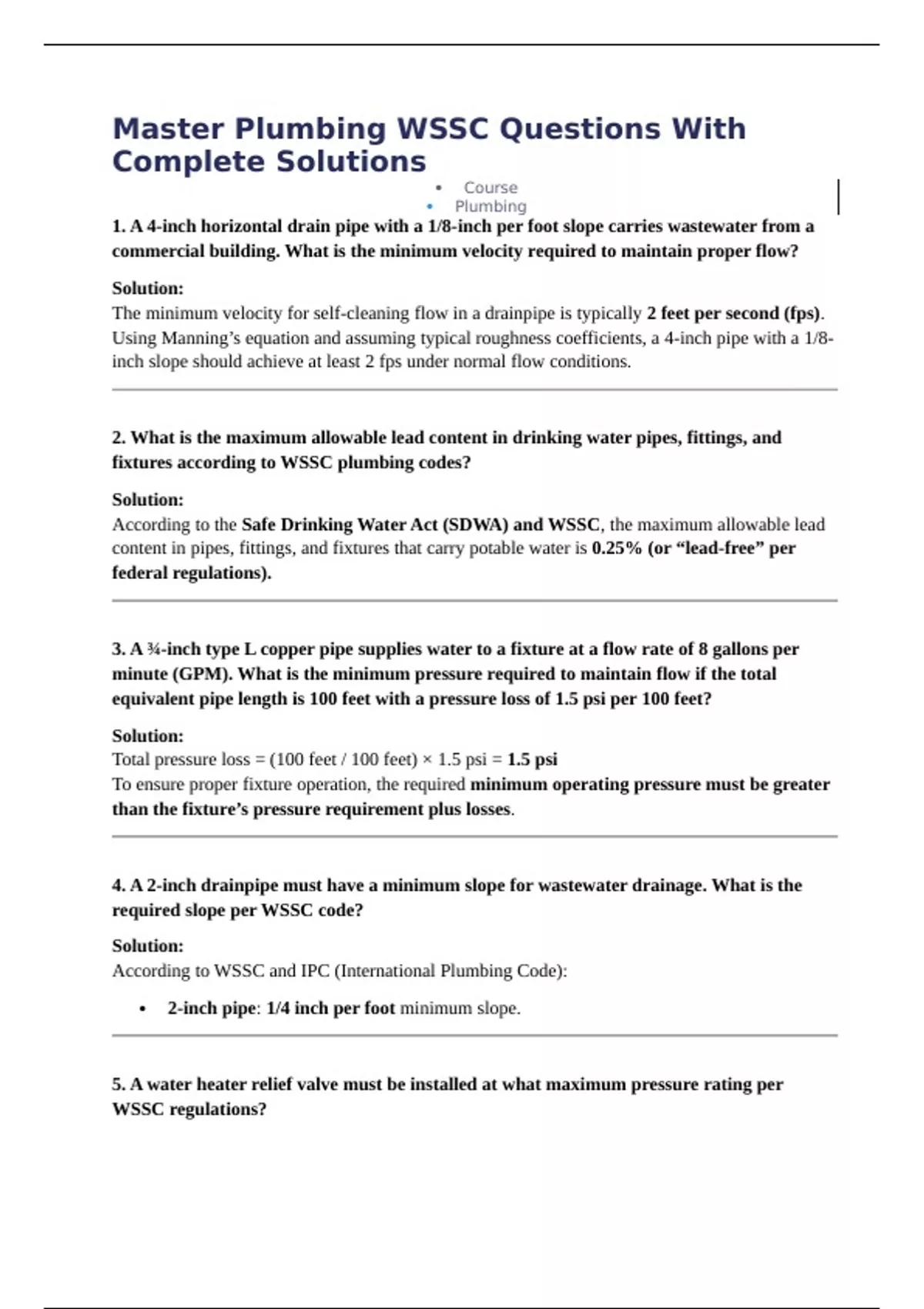

Master Plumbing WSSC Questions With
Complete Solutions
Course
Plumbing
1. A 4-inch horizontal drain pipe with a 1/8-inch per foot slope carries wastewater from a
commercial building. What is the minimum velocity required to maintain proper flow?
Solution:
The minimum velocity for self-cleaning flow in a drainpipe is typically 2 feet per second (fps).
Using Manning’s equation and assuming typical roughness coefficients, a 4-inch pipe with a 1/8-
inch slope should achieve at least 2 fps under normal flow conditions.
2. What is the maximum allowable lead content in drinking water pipes, fittings, and
fixtures according to WSSC plumbing codes?
Solution:
According to the Safe Drinking Water Act (SDWA) and WSSC, the maximum allowable lead
content in pipes, fittings, and fixtures that carry potable water is 0.25% (or “lead-free” per
federal regulations).
3. A ¾-inch type L copper pipe supplies water to a fixture at a flow rate of 8 gallons per
minute (GPM). What is the minimum pressure required to maintain flow if the total
equivalent pipe length is 100 feet with a pressure loss of 1.5 psi per 100 feet?
Solution:
Total pressure loss = (100 feet / 100 feet) × 1.5 psi = 1.5 psi
To ensure proper fixture operation, the required minimum operating pressure must be greater
than the fixture’s pressure requirement plus losses.
4. A 2-inch drainpipe must have a minimum slope for wastewater drainage. What is the
required slope per WSSC code?
Solution:
According to WSSC and IPC (International Plumbing Code):
2-inch pipe: 1/4 inch per foot minimum slope.
5. A water heater relief valve must be installed at what maximum pressure rating per
WSSC regulations?
,Solution:
Per WSSC and plumbing codes, a temperature and pressure (T&P) relief valve should be
rated for 150 psi and 210°F.
6. A plumbing system has a 3-inch drain pipe carrying waste from a restroom group. What
is the minimum vent pipe size required by WSSC code?
Solution:
According to WSSC:
A 3-inch drain requires at least a 1.5-inch vent (minimum). However, a 2-inch vent is
recommended for better performance.
7. A gas water heater requires a minimum combustion air volume of 50 cubic feet per 1,000
BTU/h. If a heater is rated at 40,000 BTU/h, what is the minimum required air volume?
Solution:
Air volume required = (40,000 BTU/h) × (50 cu ft per 1,000 BTU/h)
= 2,000 cubic feet
8. A sanitary sump pump is used to lift wastewater 10 feet to a gravity drain line. What is
the minimum pump capacity required in gallons per minute (GPM)?
Solution:
Standard minimum pump sizing:
For typical residential use: 30 GPM is a common minimum requirement.
For commercial buildings: Larger capacities (e.g., 50+ GPM) may be required
depending on demand.
9. What is the maximum distance a toilet fixture can be from its vent connection according
to WSSC?
Solution:
Under WSSC code (similar to IPC & UPC):
3-inch pipe: Maximum 6 feet
4-inch pipe: Maximum 10 feet
,10. A fire sprinkler system is being installed in a building with a required minimum
pressure of 100 psi at the highest sprinkler head. If the static pressure at the supply is 150
psi and there is a 60-foot elevation difference, what is the available pressure at the sprinkler
head?
Solution:
Pressure drop due to elevation = (60 feet) × (0.433 psi per foot) = 25.98 psi
Available pressure = 150 psi - 25.98 psi = 124 psi
Since 124 psi is greater than the required 100 psi, the pressure is adequate.
11. What is the minimum cover required for underground water service piping per WSSC
code?
Solution:
The minimum cover required for underground water service piping is 30 inches to
prevent freezing.
12. What is the minimum trap seal depth required for any fixture trap?
Solution:
The minimum trap seal depth per WSSC is 2 inches.
The maximum is 4 inches to prevent siphoning.
13. A 1-inch water meter is installed in a commercial building. What is the typical
maximum flow rate it can handle?
Solution:
A 1-inch water meter can typically handle 50 GPM (gallons per minute) at peak
demand.
14. A horizontal branch drain serves four water closets. What is the minimum pipe size
required?
Solution:
Each water closet requires 3 DFU (Drainage Fixture Units).
Four WCs = 12 DFUs.
, Per WSSC, a 3-inch pipe can only handle 12 DFUs max, so a 4-inch pipe is required
for reliability.
15. What is the minimum slope required for a 6-inch sanitary sewer pipe?
Solution:
6-inch pipe minimum slope = 1/8 inch per foot
16. A backflow preventer is required on which type of plumbing fixture?
Solution:
Backflow preventers are required on fixtures that pose contamination risks, such as:
o Hose bibbs
o Irrigation systems
o Commercial dishwashers
o Medical and laboratory equipment
17. What is the minimum air gap distance required for an indirect waste pipe terminating
above a floor sink?
Solution:
Minimum air gap = 2 times the pipe diameter.
Example: If the pipe is 1 inch, the minimum gap = 2 inches.
18. A 2-inch vent pipe is serving a multi-story building. What is the maximum developed
length allowed?
Solution:
Per WSSC, a 2-inch vent has a maximum developed length of 50 feet before requiring
an increase in size.
19. What is the required water pressure range for a public water distribution system?
