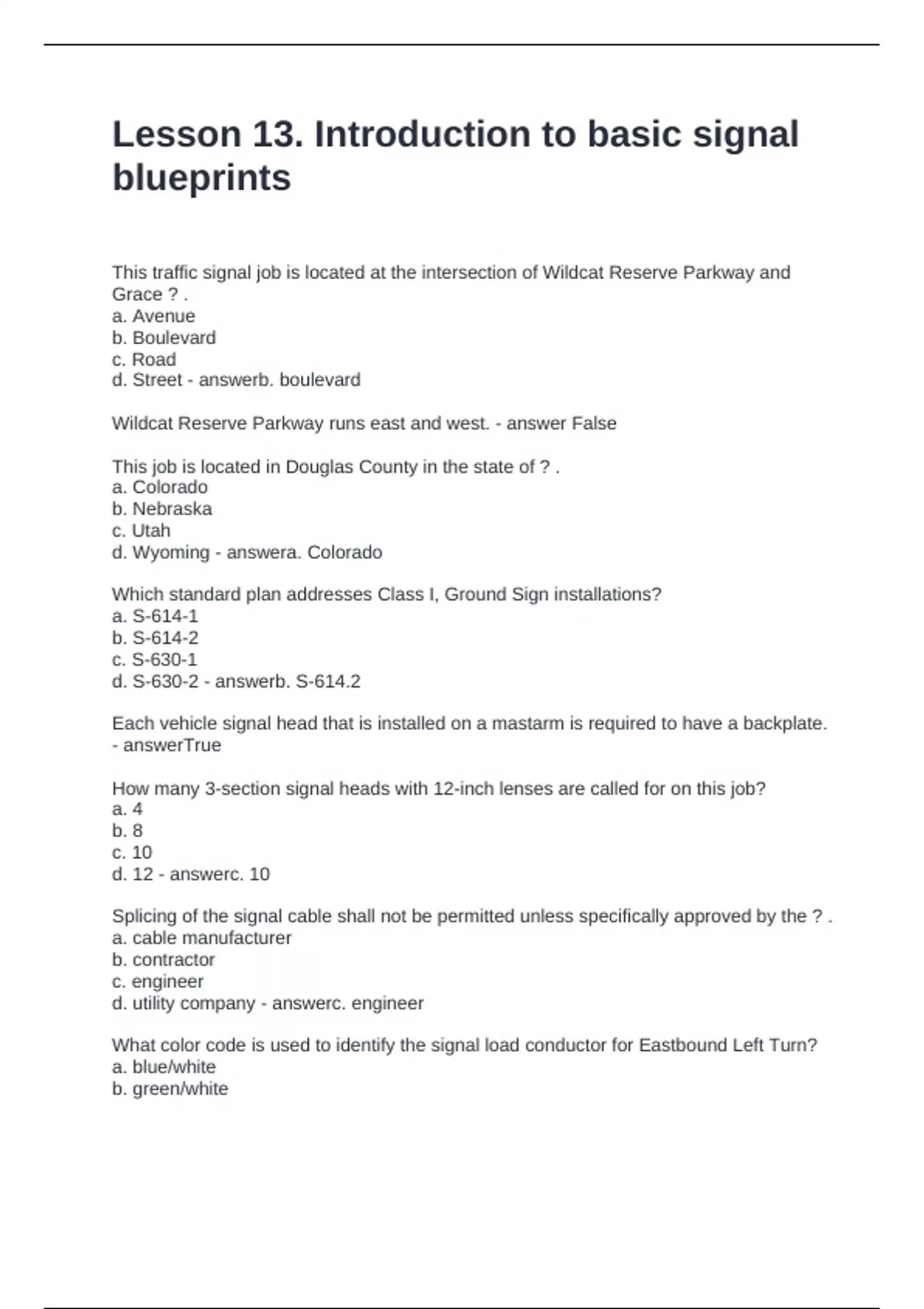

Lesson 13. Introduction to basic signal
blueprints
This traffic signal job is located at the intersection of Wildcat Reserve Parkway and
Grace ? .
a. Avenue
b. Boulevard
c. Road
d. Street - answerb. boulevard
Wildcat Reserve Parkway runs east and west. - answer False
This job is located in Douglas County in the state of ? .
a. Colorado
b. Nebraska
c. Utah
d. Wyoming - answera. Colorado
Which standard plan addresses Class I, Ground Sign installations?
a. S-614-1
b. S-614-2
c. S-630-1
d. S-630-2 - answerb. S-614.2
Each vehicle signal head that is installed on a mastarm is required to have a backplate.
- answerTrue
How many 3-section signal heads with 12-inch lenses are called for on this job?
a. 4
b. 8
c. 10
d. 12 - answerc. 10
Splicing of the signal cable shall not be permitted unless specifically approved by the ? .
a. cable manufacturer
b. contractor
c. engineer
d. utility company - answerc. engineer
What color code is used to identify the signal load conductor for Eastbound Left Turn?
a. blue/white
b. green/white
