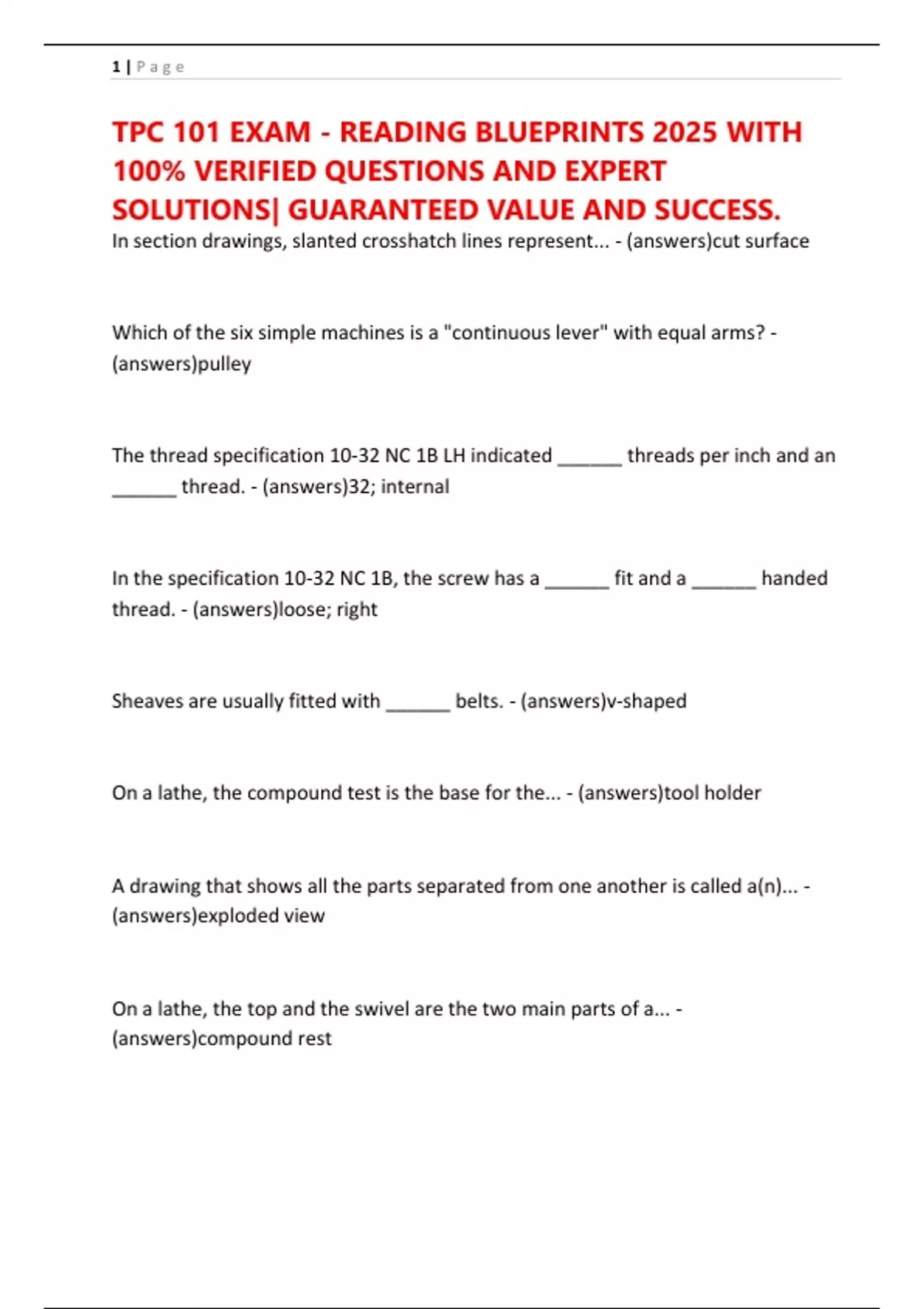

In section drawings, slanted crosshatch lines represent... - (answers)cut surface
Which of the six simple machines is a "continuous lever" with equal arms? -
(answers)pulley
The thread specification 10-32 NC 1B LH indicated ______ threads per inch and an
______ thread. - (answers)32; internal
In the specification 10-32 NC 1B, the screw has a ______ fit and a ______ handed
thread. - (answers)loose; right
Sheaves are usually fitted with ______ belts. - (answers)v-shaped
On a lathe, the compound test is the base for the... - (answers)tool holder
A drawing that shows all the parts separated from one another is called a(n)... -
(answers)exploded view
On a lathe, the top and the swivel are the two main parts of a... -
(answers)compound rest
, 2|Page
What kind of drawing compresses all the parts into a two-dimensional plane? -
(answers)orthographic projection
A drawing may show all the shafts of a gear train in a single plane in order to ... -
(answers)avoid confusion
The part in a duct that directs and spreads the air is called a(n)... -
(answers)diffuser
What kind of development is used for making a sheet metal piece with a constant
taper? - (answers)radial line
Most industrial plants specify bearings in terms of ______. They specify distance
in ______. - (answers)north; feet
The location of machinery and equipment in a building is shown on a ______. -
(answers)floor plan
Structural drawings of a building show its framework, floors, and ______. -
(answers)foundations
A vertical view of a building can be used as a flow diagram called a(n) ______
drawing. - (answers)elevation
