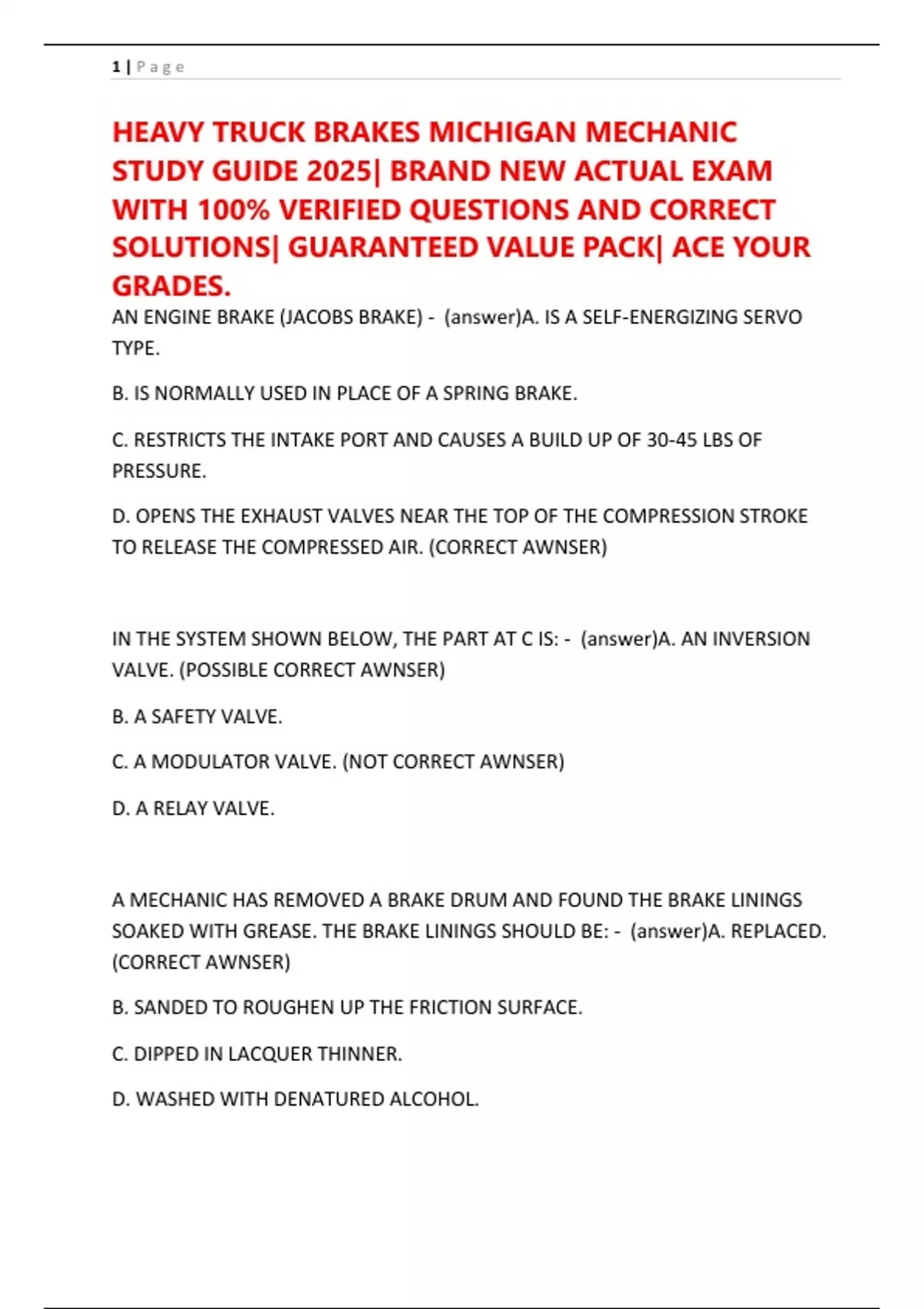

1|Page
HEAVY TRUCK BRAKES MICHIGAN MECHANIC
STUDY GUIDE 2025| BRAND NEW ACTUAL EXAM
WITH 100% VERIFIED QUESTIONS AND CORRECT
SOLUTIONS| GUARANTEED VALUE PACK| ACE YOUR
GRADES.
AN ENGINE BRAKE (JACOBS BRAKE) - (answer)A. IS A SELF-ENERGIZING SERVO
TYPE.
B. IS NORMALLY USED IN PLACE OF A SPRING BRAKE.
C. RESTRICTS THE INTAKE PORT AND CAUSES A BUILD UP OF 30-45 LBS OF
PRESSURE.
D. OPENS THE EXHAUST VALVES NEAR THE TOP OF THE COMPRESSION STROKE
TO RELEASE THE COMPRESSED AIR. (CORRECT AWNSER)
IN THE SYSTEM SHOWN BELOW, THE PART AT C IS: - (answer)A. AN INVERSION
VALVE. (POSSIBLE CORRECT AWNSER)
B. A SAFETY VALVE.
C. A MODULATOR VALVE. (NOT CORRECT AWNSER)
D. A RELAY VALVE.
A MECHANIC HAS REMOVED A BRAKE DRUM AND FOUND THE BRAKE LININGS
SOAKED WITH GREASE. THE BRAKE LININGS SHOULD BE: - (answer)A. REPLACED.
(CORRECT AWNSER)
B. SANDED TO ROUGHEN UP THE FRICTION SURFACE.
C. DIPPED IN LACQUER THINNER.
D. WASHED WITH DENATURED ALCOHOL.
, 2|Page
IN THE DRAWING BELOW, THE PARKING BRAKES ARE APPLIED BY: - (answer)A.
AIR PRESSURE AT POINT F.
B. VACUUM IN AREA B.
C. SPRING AT POINT C.
D. PRESSURE IN AREA A. (NOT CORRECT AWNSER)
WHAT IS THE PURPOSE OF A VACUUM BOOSTER? - (answer)A. TO DECREASE
BRAKE PEDAL EFFORT. (POSSIBLE CORRECT AWNSER)
B. TO PREVENT FADE UNDER HEAVY BRAKING.
C. TO PROVIDE ASSISTANCE WHEN THE ENGINE VACUUM IS LOW. (NOT CORRECT
AWNSER)
D. TO MAINTAIN UNIFORM PEDAL TRAVEL AS THE LININGS WEAR.
THE TRAILER BRAKES DO NOT WORK. THE TRACTOR SYSTEM IS AT NORMAL
PRESSURE. THERE ARE NO LEAKS AND THE SERVICE AND EMERGENCY LINES ARE
HOOKED UP RIGHT. WHAT COULD CAUSE THIS PROBLEM? - (answer)A. ICE IN THE
LINES AT THE TRAILER.
B. A BAD RELAY VALVE.
C. A BAD SAFETY RELIEF VALVE.
D. BOTH A AND B. (CORRECT AWNSER)
THE RESIDUAL VALVE IN THE MASTER CYLINDER: - (answer)A. LIMITS PRESSURE
BUILD UP IN THE SYSTEM.
