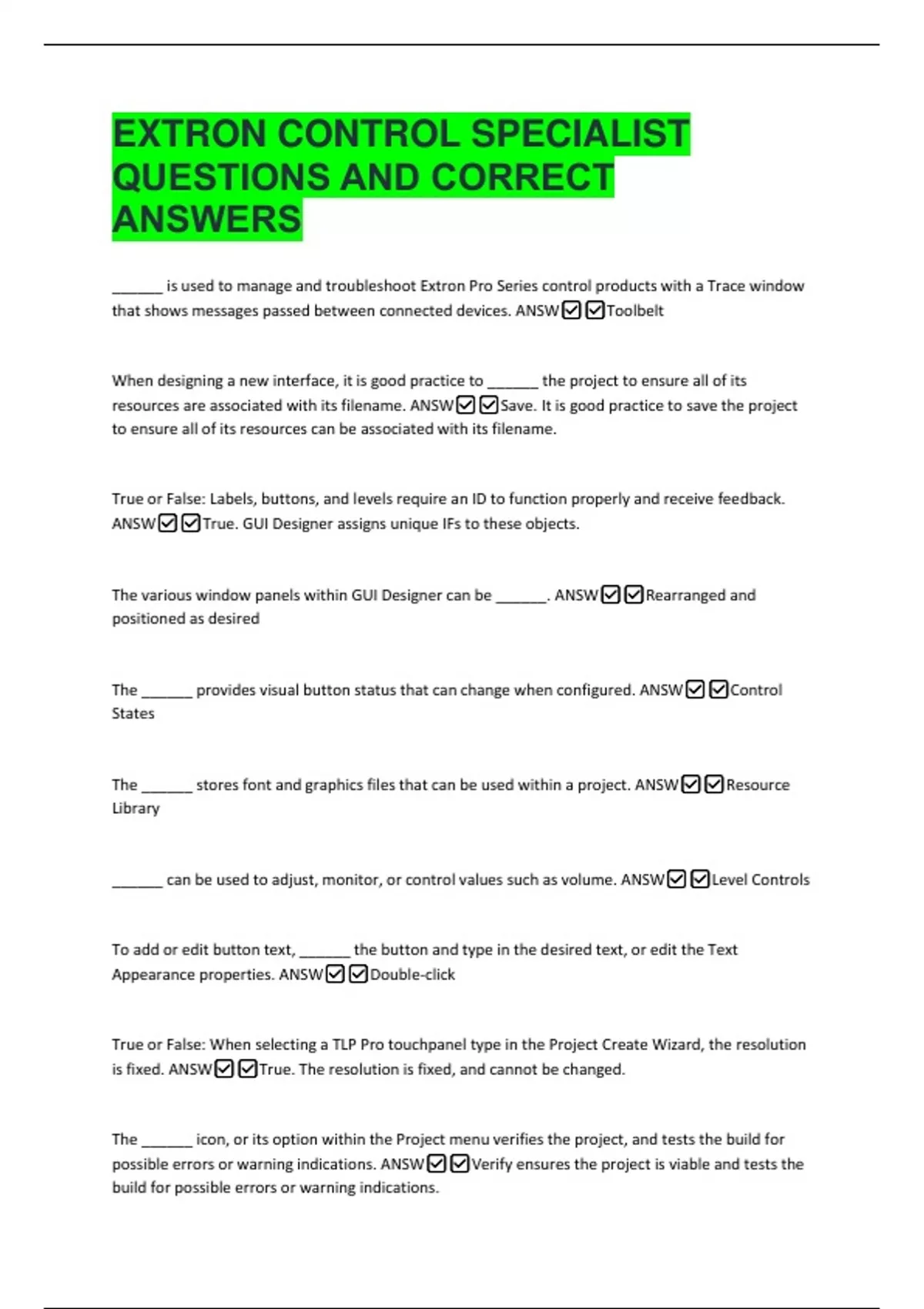

EXTRON CONTROL SPECIALIST
QUESTIONS AND CORRECT
ANSWERS
______ is used to manage and troubleshoot Extron Pro Series control products with a Trace window
that shows messages passed between connected devices. ANSW✅✅Toolbelt
When designing a new interface, it is good practice to ______ the project to ensure all of its
resources are associated with its filename. ANSW✅✅Save. It is good practice to save the project
to ensure all of its resources can be associated with its filename.
True or False: Labels, buttons, and levels require an ID to function properly and receive feedback.
ANSW✅✅True. GUI Designer assigns unique IFs to these objects.
The various window panels within GUI Designer can be ______. ANSW✅✅Rearranged and
positioned as desired
The ______ provides visual button status that can change when configured. ANSW✅✅Control
States
The ______ stores font and graphics files that can be used within a project. ANSW✅✅Resource
Library
______ can be used to adjust, monitor, or control values such as volume. ANSW✅✅Level Controls
To add or edit button text, ______ the button and type in the desired text, or edit the Text
Appearance properties. ANSW✅✅Double-click
True or False: When selecting a TLP Pro touchpanel type in the Project Create Wizard, the resolution
is fixed. ANSW✅✅True. The resolution is fixed, and cannot be changed.
The ______ icon, or its option within the Project menu verifies the project, and tests the build for
possible errors or warning indications. ANSW✅✅Verify ensures the project is viable and tests the
build for possible errors or warning indications.
, To select and modify more than one object, click the objects while pressing the ______ key.
ANSW✅✅The <Ctrl> key selects more than one object.
When multiple objects are selected, the object surrounded with white squares is referred to as the
______ on which spacing, sizing, or alignment adjustments are based. ANSW✅✅Anchor
The ______ icon on the Toolbar and within the View menu, is a toggle to display the IDs for a
layout's button, level and text control objects. ANSW✅✅Show Control Info
The items in the Workspace are identified as ______. ANSW✅✅Pages, Popup Pages, Modal
Popup Pages
True or False: The Save and Build function is used to prepare the interface for use with Global
Configurator Plus. ANSW✅✅Save and Build is used to prepare the interface for use with Global
Configurator Plus.
Graphics can be added to a page or popup page by using the ______ object. ANSW✅✅Image
Control
True or False: The appearance and design property settings of a selected object or button can be
copied and then pasted onto other objects. ANSW✅✅True. Design properties can be copied and
pasted onto other objects.
Which of the following resources can be found on the Extron website? ANSW✅✅Design Guides
Software downloads
Specification sheets
Video tutorials
Extron offers ______ as a training method to keep pace with new products and technologies:
ANSW✅✅Instructor-led Classes
