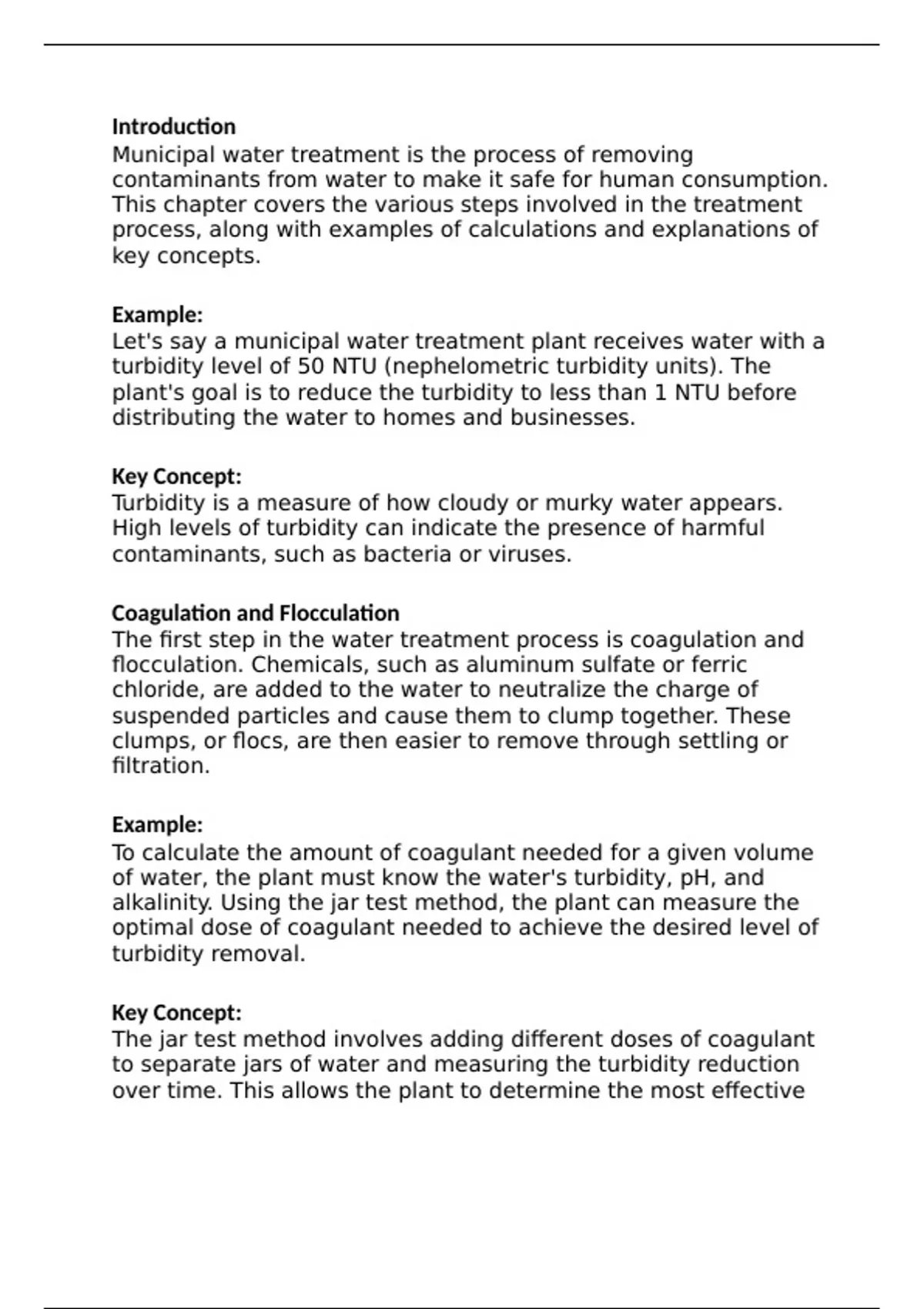

Introduction
Municipal water treatment is the process of removing
contaminants from water to make it safe for human consumption.
This chapter covers the various steps involved in the treatment
process, along with examples of calculations and explanations of
key concepts.
Example:
Let's say a municipal water treatment plant receives water with a
turbidity level of 50 NTU (nephelometric turbidity units). The
plant's goal is to reduce the turbidity to less than 1 NTU before
distributing the water to homes and businesses.
Key Concept:
Turbidity is a measure of how cloudy or murky water appears.
High levels of turbidity can indicate the presence of harmful
contaminants, such as bacteria or viruses.
Coagulation and Flocculation
The first step in the water treatment process is coagulation and
flocculation. Chemicals, such as aluminum sulfate or ferric
chloride, are added to the water to neutralize the charge of
suspended particles and cause them to clump together. These
clumps, or flocs, are then easier to remove through settling or
filtration.
Example:
To calculate the amount of coagulant needed for a given volume
of water, the plant must know the water's turbidity, pH, and
alkalinity. Using the jar test method, the plant can measure the
optimal dose of coagulant needed to achieve the desired level of
turbidity removal.
Key Concept:
The jar test method involves adding different doses of coagulant
to separate jars of water and measuring the turbidity reduction
over time. This allows the plant to determine the most effective
, and cost-efficient dose of coagulant.
Sedimentation
After coagulation and flocculation, the water is allowed to settle in
a clarifier or sedimentation basin. The heavier flocs sink to the
bottom, where they are removed by scrapers and transported to a
sludge holding tank.
Example:
To calculate the detention time, or the amount of time the water
must remain in the clarifier, the plant can use the following
formula:
detention time = volume of clarifier / flow rate
For example, if the clarifier has a volume of 10,000 cubic meters
and the flow rate is 1,000 cubic meters per hour, the detention
time would be 10 hours.
Key Concept:
Detention time is an important factor in sedimentation, as it
allows the flocs enough time to settle out of the water. If the
detention time is too short, some flocs may not have enough time
to settle, resulting in lower removal efficiency.
Filtration
The clarified water then undergoes filtration, where it passes
through a bed of sand or other filter media. The filter removes any
remaining suspended particles and provides a final polishing step
before disinfection.
Example:
To calculate the filtration rate, or the amount of water that can be
filtered through the bed per unit time, the plant can use the
following formula:
filtration rate = flow rate / surface area of filter
For example, if the flow rate is 1,000 cubic meters per hour and
the surface area of the filter is 1,000 square meters, the filtration
Municipal water treatment is the process of removing
contaminants from water to make it safe for human consumption.
This chapter covers the various steps involved in the treatment
process, along with examples of calculations and explanations of
key concepts.
Example:
Let's say a municipal water treatment plant receives water with a
turbidity level of 50 NTU (nephelometric turbidity units). The
plant's goal is to reduce the turbidity to less than 1 NTU before
distributing the water to homes and businesses.
Key Concept:
Turbidity is a measure of how cloudy or murky water appears.
High levels of turbidity can indicate the presence of harmful
contaminants, such as bacteria or viruses.
Coagulation and Flocculation
The first step in the water treatment process is coagulation and
flocculation. Chemicals, such as aluminum sulfate or ferric
chloride, are added to the water to neutralize the charge of
suspended particles and cause them to clump together. These
clumps, or flocs, are then easier to remove through settling or
filtration.
Example:
To calculate the amount of coagulant needed for a given volume
of water, the plant must know the water's turbidity, pH, and
alkalinity. Using the jar test method, the plant can measure the
optimal dose of coagulant needed to achieve the desired level of
turbidity removal.
Key Concept:
The jar test method involves adding different doses of coagulant
to separate jars of water and measuring the turbidity reduction
over time. This allows the plant to determine the most effective
, and cost-efficient dose of coagulant.
Sedimentation
After coagulation and flocculation, the water is allowed to settle in
a clarifier or sedimentation basin. The heavier flocs sink to the
bottom, where they are removed by scrapers and transported to a
sludge holding tank.
Example:
To calculate the detention time, or the amount of time the water
must remain in the clarifier, the plant can use the following
formula:
detention time = volume of clarifier / flow rate
For example, if the clarifier has a volume of 10,000 cubic meters
and the flow rate is 1,000 cubic meters per hour, the detention
time would be 10 hours.
Key Concept:
Detention time is an important factor in sedimentation, as it
allows the flocs enough time to settle out of the water. If the
detention time is too short, some flocs may not have enough time
to settle, resulting in lower removal efficiency.
Filtration
The clarified water then undergoes filtration, where it passes
through a bed of sand or other filter media. The filter removes any
remaining suspended particles and provides a final polishing step
before disinfection.
Example:
To calculate the filtration rate, or the amount of water that can be
filtered through the bed per unit time, the plant can use the
following formula:
filtration rate = flow rate / surface area of filter
For example, if the flow rate is 1,000 cubic meters per hour and
the surface area of the filter is 1,000 square meters, the filtration
