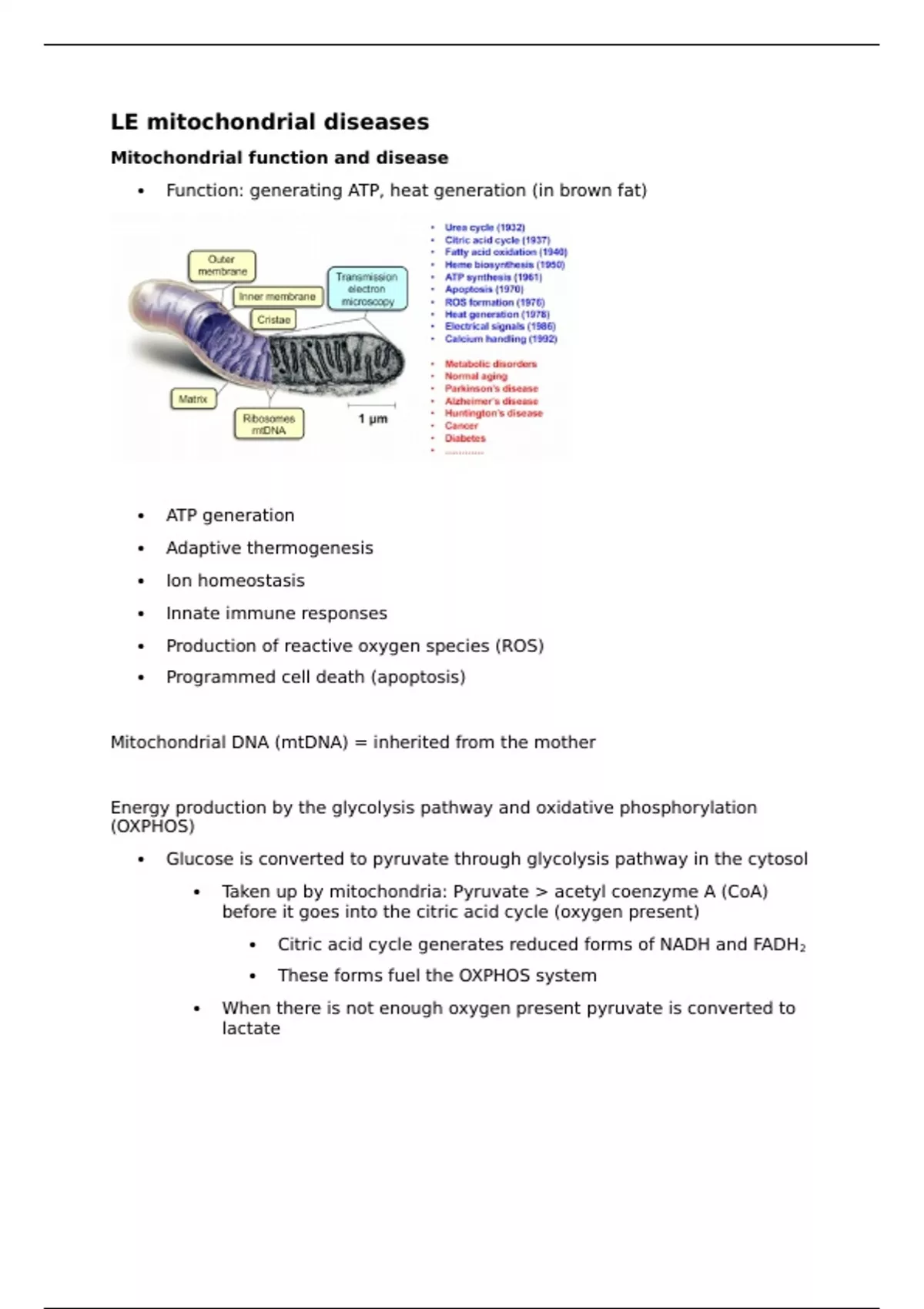

LE mitochondrial diseases
Mitochondrial function and disease
Function: generating ATP, heat generation (in brown fat)
ATP generation
Adaptive thermogenesis
Ion homeostasis
Innate immune responses
Production of reactive oxygen species (ROS)
Programmed cell death (apoptosis)
Mitochondrial DNA (mtDNA) = inherited from the mother
Energy production by the glycolysis pathway and oxidative phosphorylation
(OXPHOS)
Glucose is converted to pyruvate through glycolysis pathway in the cytosol
Taken up by mitochondria: Pyruvate > acetyl coenzyme A (CoA)
before it goes into the citric acid cycle (oxygen present)
Citric acid cycle generates reduced forms of NADH and FADH 2
These forms fuel the OXPHOS system
When there is not enough oxygen present pyruvate is converted to
lactate
, OXPHOS system is bi-genomic (nDNA, mtDNA)
Mitochondrial OXPHOS (oxidative phosphorylation) system is embedded in the
mitochondrial inner membrane (MIM) and represents the final step in the
conversion of nutrients to energy by catalyzing the generation of ATP.
Other cellular ATP producing pathways
Glycolysis pathway (cytosol)
Pyruvate dehydrogenase complex (PDHC, mitochondrial matrix)
Tricarboxylic acid (TCA) cycle
OXPHOS system (MIM)
The mitochondrial electron transport chain (ETC)
Complex I get electrons from oxireductase/dehydrogenase of NADH to
NAD+ (has proton pump but also donates electrons to Q)
Complex II get electrons from oxireductase of FADH2 to FAD (complex II has
no proton pump so donates to Q)
, Donating of electrons to the different complexes
Q = Coenzyme Q10
C = cytochrome C
Electron transport chain (ETC) complex = complex I - IV
o Complex I and II abstract electrons from reduced nicotinamide adenine
dinucleotide (NADH) and reduced flavin adenine dinucleotide (FADH 2)
These electrons are donated to the electron carrier coenzyme Q 10
which transports them to complex III
o Complex III transfers electrons to the electron carrier cytochrome c which
transports to complex IV
o Complex IV (latter complex) donated electrons to molecular oxygen (O 2) to
form water
o Energy released by the electron transport is used to drive trans-MIM proton
(H+) efflux from the mitochondrial matrix by complexes I, III and IV, and
thereby creating an inward-directed proton-motive force (PMF)
o Latter consists of chemical (pH) and electrical component that
complex V uses to generate ATP
Complex V = ATP synthese
Gradient difference of pH and electrons, therefore protein motive force
(PMF) occurs and ATP synthese can occur
ADP > ATP, therefore PMF are needed
ATP-producing F0F1-ATPase = complex V
Mitochondrial have there own DNA
Looks like bacterial plasmid
, Contains 37 genes, encode 13 different proteins, 22 transfer RNAs, 2
subunits of mitochondrial ribosome
13 different proteins are made in the mitochondria > these proteins are in
oxidative phosphorylation system
o Complex I has 7 proteins
o Complex II has 0
o Complex III has 1
o Complex IV has 3
o Complex C has 2
Mutations can cause many different diseases
MELAS = mitochondrial encephalomyopathy, lactic acidosis, and stroke-
like episodes
Neurodegenerative diseases
Inheritance of mtDNA-encoded mutations: heteroplasmy
For mtDNA mutations, their effect is linked to the fraction of mutated
mtDNAs
If one mutation is in DNA of mitochondrial, daughter cells can have
multiple mutations because division is not predictable
Threshold effect: when >70% of the DNA is mutated this oxygen
consumption decreases
Mitochondrial bottleneck causes heteroplasmy during oogenesis
Bottleneck phenomenon = homogeneity of mitochondrial genomes with
organisms
Mitochondrial is received from the mother > maternal inheritance (mtDNA)
Mendelian (nDNA) is the normal inheritance from generations
