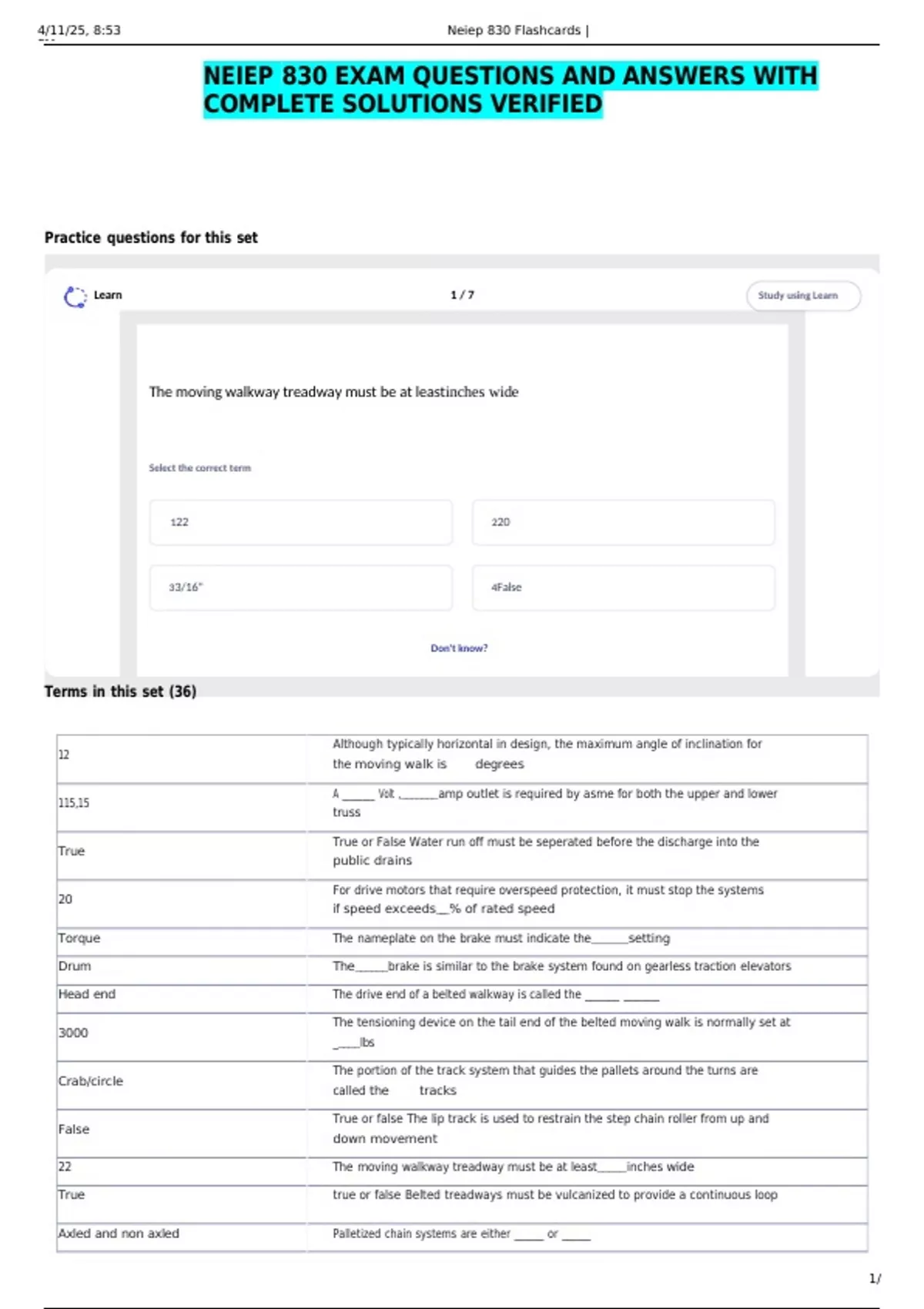

NEIEP 830 EXAM QUESTIONS AND ANSWERS WITH
COMPLETE SOLUTIONS VERIFIED
Practice questions for this set
Learn 1/7 Study using Learn
The moving walkway treadway must be at leastinches wide
Select the correct term
122 220
33/16" 4False
Don't know?
Terms in this set (36)
Although typically horizontal in design, the maximum angle of inclination for
12
the moving walk is degrees
A ________ Volt ,_______amp outlet is required by asme for both the upper and lower
115,15
truss
True or False Water run off must be seperated before the discharge into the
True
public drains
For drive motors that require overspeed protection, it must stop the systems
20
if speed exceeds___% of rated speed
Torque The nameplate on the brake must indicate the______setting
Drum The______brake is similar to the brake system found on gearless traction elevators
Head end The drive end of a belted walkway is called the _______ ________
The tensioning device on the tail end of the belted moving walk is normally set at
3000
_____lbs
The portion of the track system that guides the pallets around the turns are
Crab/circle
called the tracks
True or false The lip track is used to restrain the step chain roller from up and
False
down movement
22 The moving walkway treadway must be at least_____inches wide
True true or false Belted treadways must be vulcanized to provide a continuous loop
Axled and non axled Palletized chain systems are either ______ or ______
1/
2
