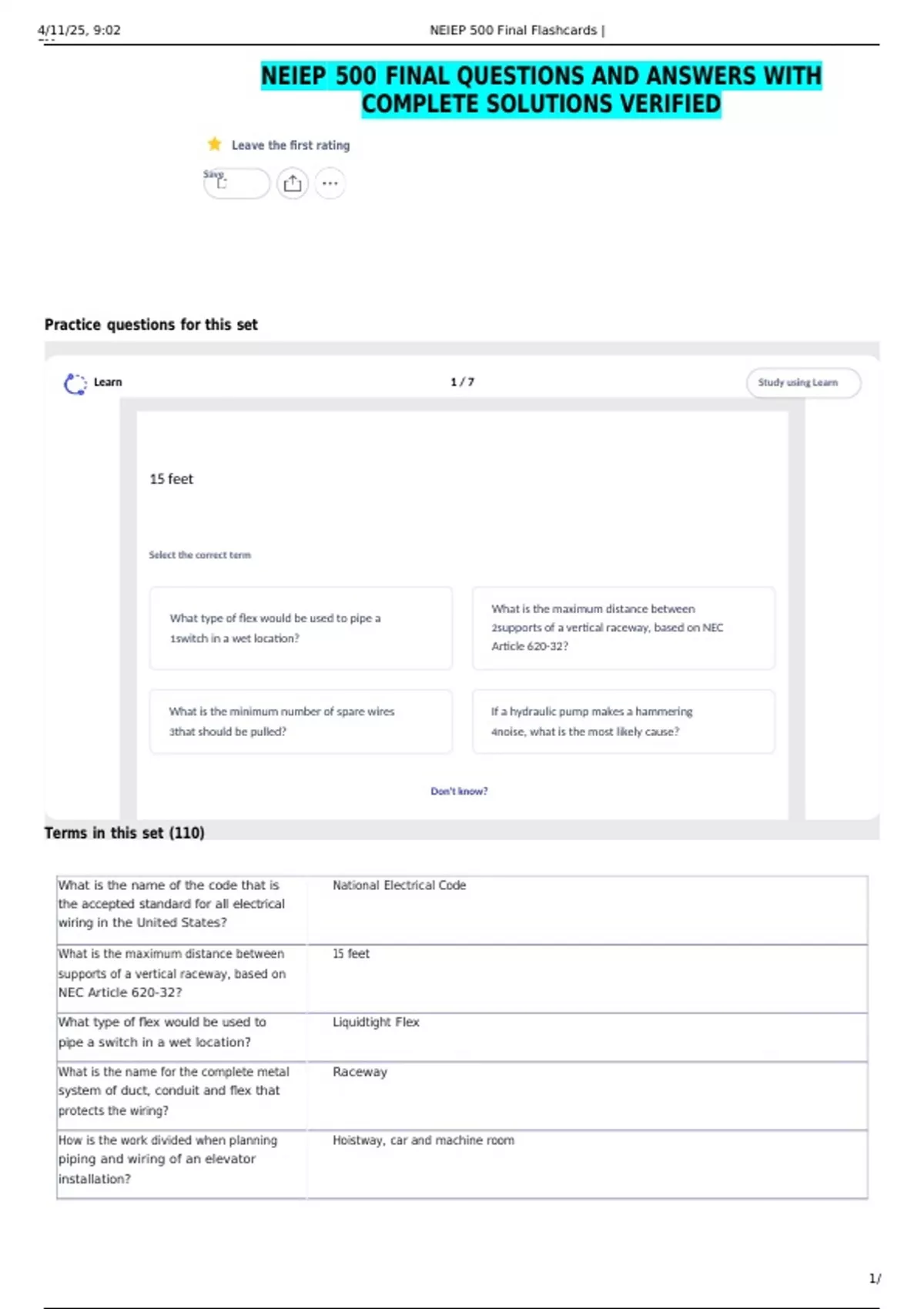

NEIEP 500 FINAL QUESTIONS AND ANSWERS WITH
COMPLETE SOLUTIONS VERIFIED
Leave the first rating
Save
Practice questions for this set
Learn 1/7 Study using Learn
15 feet
Select the correct term
What is the maximum distance between
What type of flex would be used to pipe a
2supports of a vertical raceway, based on NEC
1switch in a wet location?
Article 620-32?
What is the minimum number of spare wires If a hydraulic pump makes a hammering
3that should be pulled? 4noise, what is the most likely cause?
Don't know?
Terms in this set (110)
What is the name of the code that is National Electrical Code
the accepted standard for all electrical
wiring in the United States?
What is the maximum distance between 15 feet
supports of a vertical raceway, based on
NEC Article 620-32?
What type of flex would be used to Liquidtight Flex
pipe a switch in a wet location?
What is the name for the complete metal Raceway
system of duct, conduit and flex that
protects the wiring?
How is the work divided when planning Hoistway, car and machine room
piping and wiring of an elevator
installation?
1/
6
, 4/11/25, 9:02 NEIEP 500 Final Flashcards |
PM
What document may be the only place to Job abstract
look for such information as type of
fixtures, car panel, fire service floor, etc?
What information is shown on a pull Terminal connections
sheet?
Which type of diagram shows a simplified Straight line
path from positive to negative for all
components in a circuit?
How are multiple installations of traveling From the rail regardless of placement in the hoistway
cables numbered for a single car?
What is shown on the final layout? A plan drawing and an elevation giving dimensions
In the circuit shown, which is the common DC+
wired for the second level?
How are wire sizes larger than 4/0 In circular mils
measured?
What is the abbreviated term for current Ampacity
carry8ing capacity?
What is the minimum size wired for #14
lighting circuits in an elevator installation?
What is the special about wire used for It must be rated for 200 degrees C
the interlock circuit?
What is the smallest wire that is permitted #24
in an elevator installation?
When bending conduit, what is the 90 degrees
maximum number of decrees of bend
allowed between access points?
What is the reference point on the thin- The star point
wall bender for the finish line of a back to
back bend?
What is the total in degrees of the bends 90 degrees
in a three-bend saddle?
You have 10' length of ¾" rigid 9 inches
conduit which needs to have a 90
degree bend with a 16" stub height.
With a 7" take- up, what is the distance
from the end of the pipe to the mark
where the hickey arrow is aligned?
21 Size of conduit is determined by the inside diameter
22 NEC states wire used in elevators must have flame retardant insulation
23 Thin wall pipe, the radius of the bend is controlled by the bender
24 Three bend offset, center bend is 45 degrees, other bends are 22 ½
25 Final layout, pipe planning/wiring
26 Job abstract, fixture
27 Single travel cable may contain over 100 conductors
28 Straight line diagrams are intended for troubleshooting
29 Ampacity- means current carrying capacity
What is the maximum distance between 15 feet
supports on a vertical raceway?
2/
6
