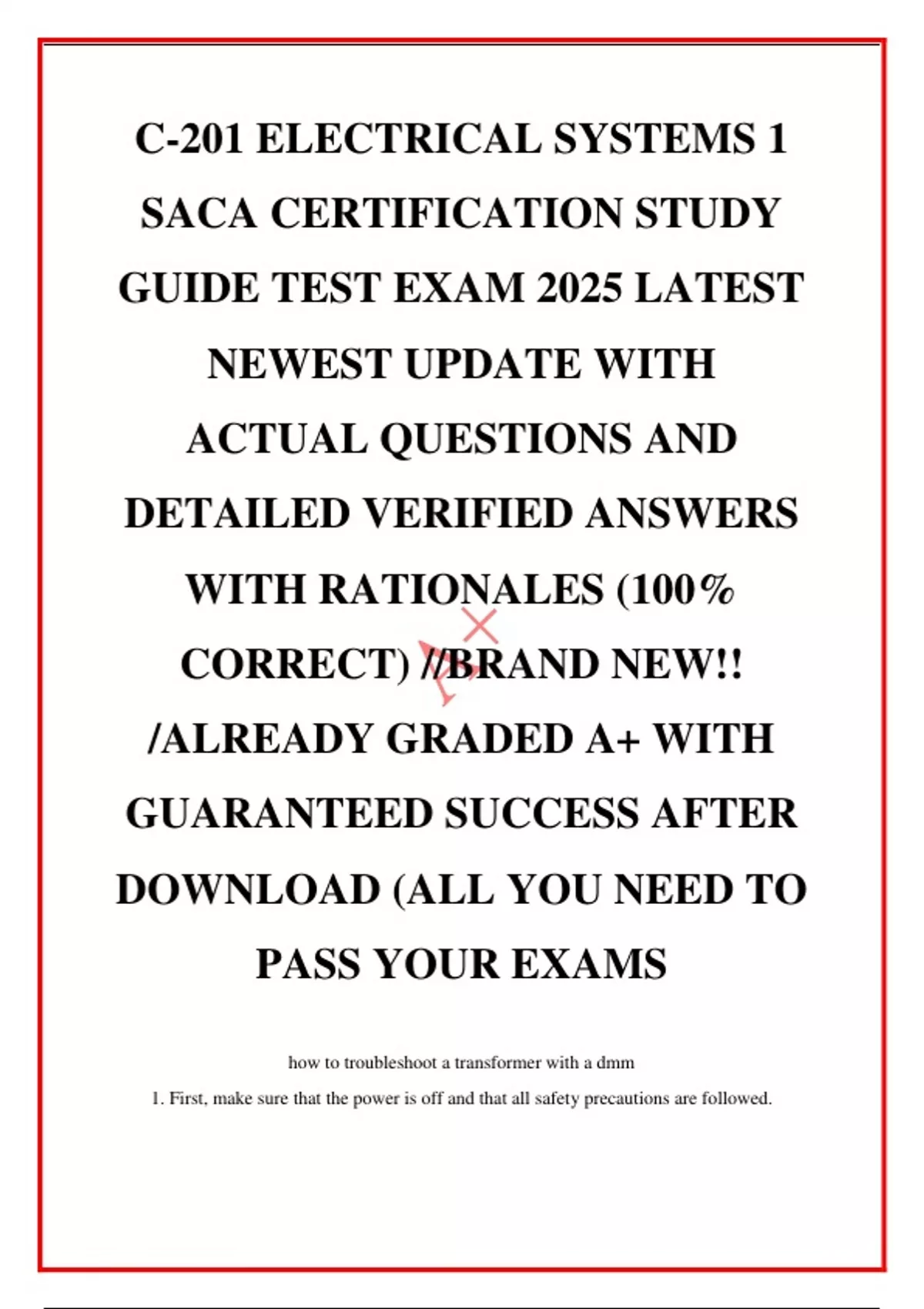

C-201 ELECTRICAL SYSTEMS 1
SACA CERTIFICATION STUDY
GUIDE TEST EXAM 2025 LATEST
NEWEST UPDATE WITH
ACTUAL QUESTIONS AND
DETAILED VERIFIED ANSWERS
WITH RATIONALES (100%
CORRECT) //BRAND NEW!!
/ALREADY GRADED A+ WITH
GUARANTEED SUCCESS AFTER
DOWNLOAD (ALL YOU NEED TO
PASS YOUR EXAMS
how to troubleshoot a transformer with a dmm
1. First, make sure that the power is off and that all safety precautions are followed.
, 2. Set the DMM to measure DC voltage, and check the input and output terminals of the
transformer for any voltage. If there is no voltage at the input terminals, but there is voltage at
the output terminals, it could indicate a shorted primary coil or an open secondary coil.
3. Set the DMM to measure resistance, and check the resistance of the primary and secondary
coils. If the resistance of the primary or secondary coil is much higher or lower than
expected, it could indicate a problem with the coil.
4. Set the DMM to measure continuity, and check the connections between the primary and
secondary coils. If there is no continuity between the coils, it could indicate a broken wire or
a loose connection.
size a transformer given the voltage and load of the circuit
what is a power source
The power source is the source of electrical energy for the circuit. It can be a battery, a
generator, or a power outlet. The power source provides the electrical current that flows
through the circuit.
what is a conductor
The conductor is a material that allows electricity to flow through it, such as a wire. The
conductor carries the electrical current from the power source to the load.
what is a load
The load is the device or appliance that is being powered by the circuit. It can be a light bulb,
a motor, or any other device that uses electricity. The load converts the electrical energy from
the circuit into some other form of energy, such as light or motion.
what is a switch
The switch is a device that is used to control the flow of electrical current in the circuit. It can
be used to turn the circuit on or off, allowing the load to be powered or de-powered as
needed.
two types of power supplies and schematic symbol
AC and DC
be able to interperate an electrical schematic which includes symbols
on youtube look up engineering mindset- Single Phase Electricity Explained - wiring diagram
energy meter
resistor symbol
Capacitor symbol
