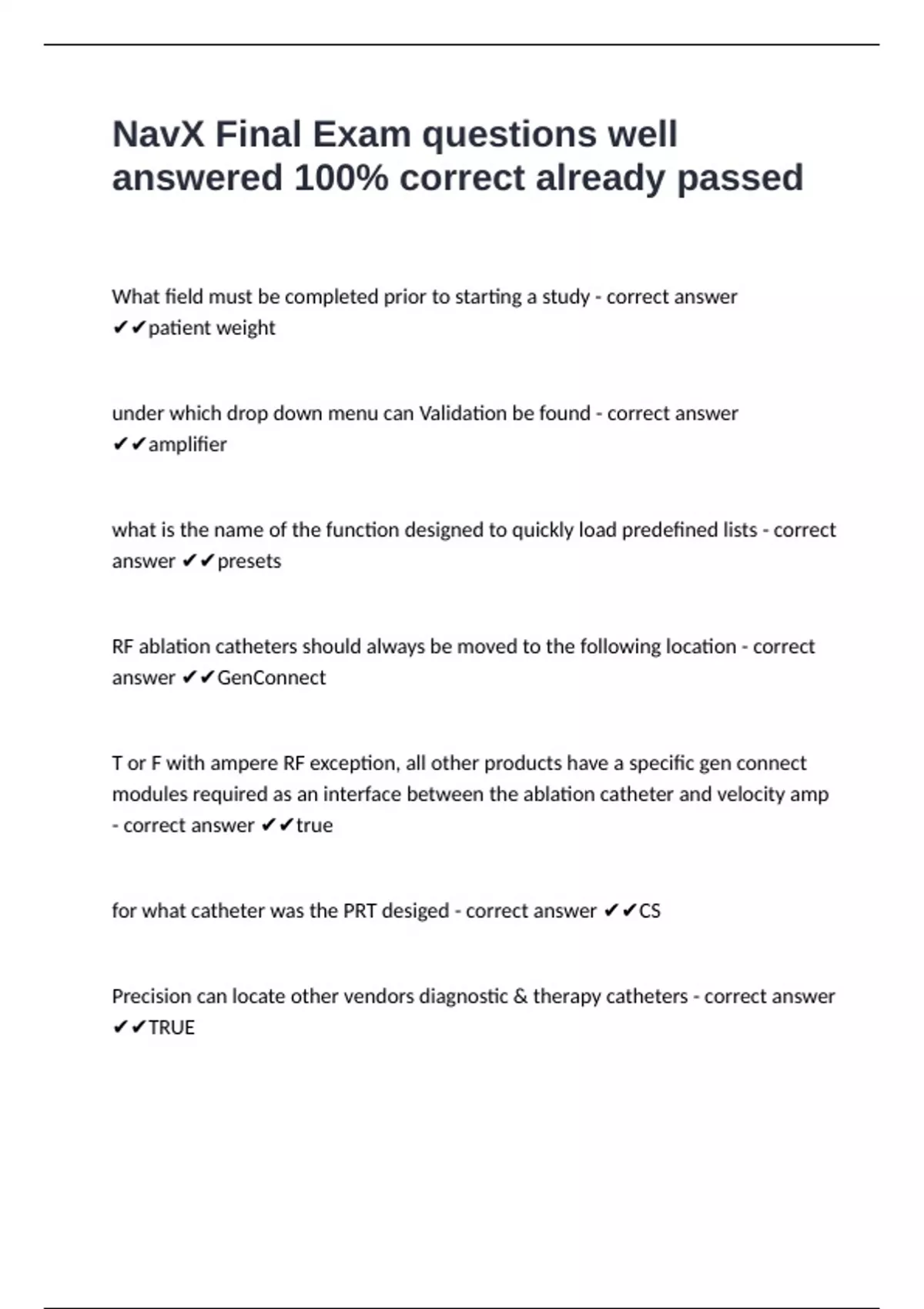

NavX Final Exam questions well
answered 100% correct already passed
What field must be completed prior to starting a study - correct answer
✔✔patient weight
under which drop down menu can Validation be found - correct answer
✔✔amplifier
what is the name of the function designed to quickly load predefined lists - correct
answer ✔✔presets
RF ablation catheters should always be moved to the following location - correct
answer ✔✔GenConnect
T or F with ampere RF exception, all other products have a specific gen connect
modules required as an interface between the ablation catheter and velocity amp
- correct answer ✔✔true
for what catheter was the PRT desiged - correct answer ✔✔CS
Precision can locate other vendors diagnostic & therapy catheters - correct answer
✔✔TRUE
,if a catheter has a broken or noisey electrode which - correct answer ✔✔SHOW
CATHETER
when adding a catheter, what much be entered to complete the process - correct
answer ✔✔electrode spacing
In AP if the CS is pointing withthe distal tip to the left of the screen what is cause -
correct answer ✔✔right and left patches switched
what should be connected prior to any case - correct answer ✔✔amplifier
plugged in and on, quick connect cables plugged in and fiber optics
If EGM are visibile on the recording system but not velocity, what is cause - correct
answer ✔✔record connect
which ethernet does the amplifer fiber optic media converter plug into the back of
of the DWS - correct answer ✔✔ETH1
T or F it is recommended to charge a cell phone on the DWS - correct answer
✔✔false
first indication there is a problem with the amplifer and dws - correct answer
✔✔12 lead screen no visible in set up task
green light on front of amplifier is indicative of what - correct answer ✔✔amplifier
has passed self test
, T or F reference shadows will automatically be stored for all 12 lead ecg signals
even if not displayed when the first point is collected - correct answer ✔✔true
when mapping in precision, if the user clicks freeze button for a mapping point,
what is the new option avialable - correct answer ✔✔save to existing or create a
new map
T or F the user now has the ability to nae or edit the name of the current map
without navigating outside the mapping task - correct answer ✔✔true
what is the benefit to the users ability to edit/name the map in the mapping
control panel - correct answer ✔✔instantly name the map without leaving the
mapping workflow
what toggle gives the user the option of displaying all mapping oint annotations
onto the corresponding 3D points of the map - correct answer ✔✔3D annotations
where is the translucency slider - correct answer ✔✔on the map display window
T or F the user as the option to convert bipolar voltage mapping data into peak to
peak unipolar voltage - correct answer ✔✔true
T or F the user can now toggle roving and ref shadows on/off independtly - correct
answer ✔✔true
