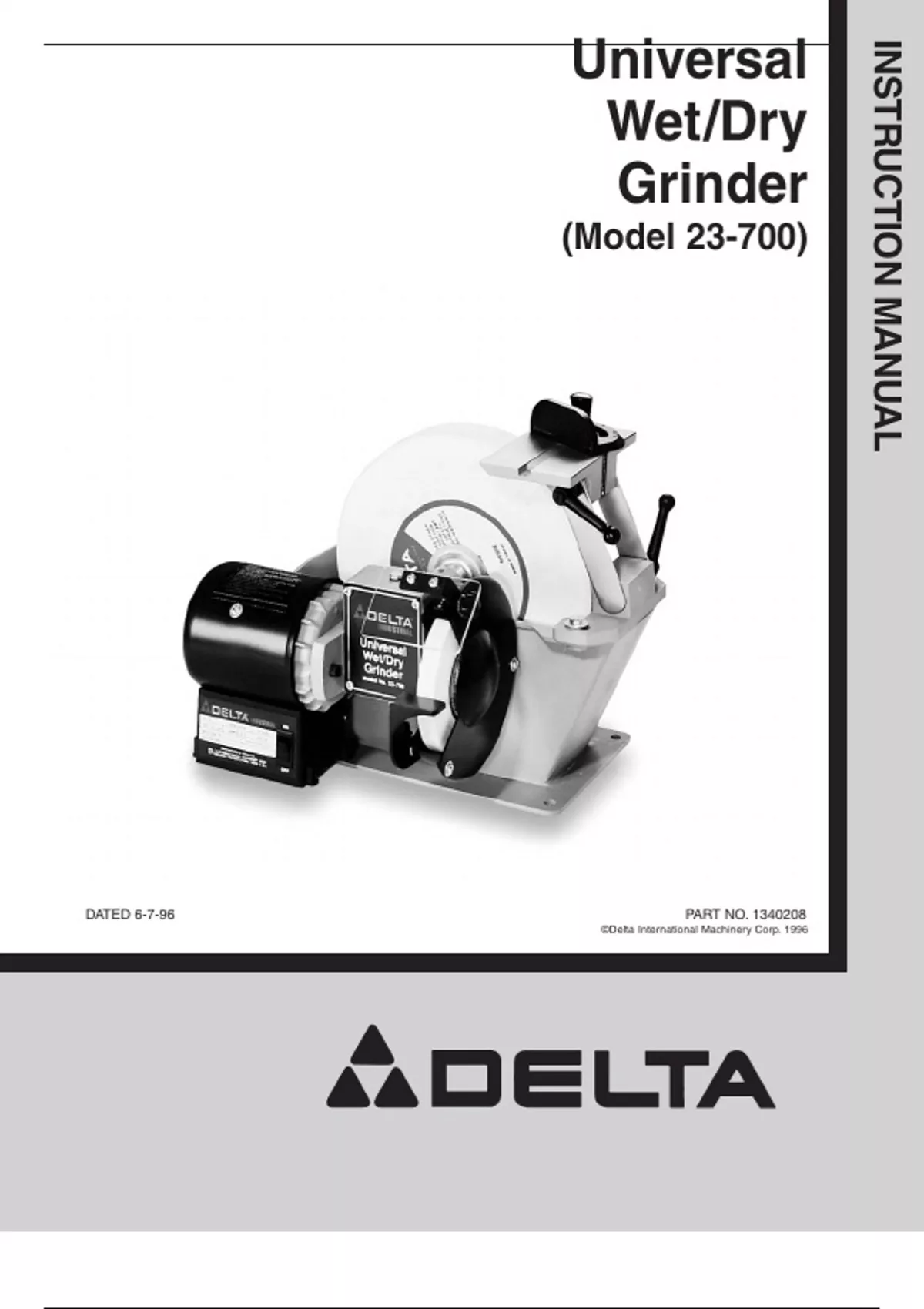

Universal
INSTRUCTION MANUAL
Wet/Dry
Grinder
(Model 23-700)
DATED 6-7-96 PART NO. 1340208
©Delta International Machinery Corp. 1996
, SAFETY RULES
Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain
hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibil-
ity of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result.
Safety equipment such as guards, push sticks, hold-downs, featherboards, goggles, dust masks and hearing protection can reduce
your potential for injury. But even the best guard won’t make up for poor judgment, carelessness or inattention. Always use common
sense and exercise caution in the workshop. If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels
safer. REMEMBER: Your personal safety is your responsibility.
This machine was designed for certain applications only. Delta Machinery strongly recommends that this machine not be modified
and/or used for any application other than that for which it was designed. If you have any questions relative to a particular applica-
tion, DO NOT use the machine until you have first contacted Delta to determine if it can or should be performed on the product.
DELTA INTERNATIONAL MACHINERY CORP.
MANAGER OF TECHNICAL SERVICES
246 ALPHA DRIVE
PITTSBURGH, PENNSYLVANIA 15238
(IN CANADA: 644 IMPERIAL ROAD, GUELPH, ONTARIO N1H 6M7)
WARNING: FAILURE TO FOLLOW THESE RULES
MAY RESULT IN SERIOUS PERSONAL INJURY
1. FOR YOUR OWN SAFETY, READ INSTRUCTION 15. DON’T OVERREACH. Keep proper footing and balance
MANUAL BEFORE OPERATING THE TOOL. Learn the at all times.
tool’s application and limitations as well as the specific 16. MAINTAIN TOOLS IN TOP CONDITION. Keep tools
hazards peculiar to it. sharp and clean for best and safest performance. Follow
2. KEEP GUARDS IN PLACE and in working order. instructions for lubricating and changing accessories.
3. ALWAYS WEAR EYE PROTECTION. 17. DISCONNECT TOOLS before servicing and when
4. GROUND ALL TOOLS. If tool is equipped with three- changing accessories such as blades, bits, cutters, etc.
prong plug, it should be plugged into a three-hole electrical 18. USE RECOMMENDED ACCESSORIES. The use of
receptacle. If an adapter is used to accommodate a two- accessories and attachments not recommended by Delta
prong receptacle, the adapter lug must be attached to a may cause hazards or risk of injury to persons.
known ground. Never remove the third prong. 19. REDUCE THE RISK OF UNINTENTIONAL START-
5. REMOVE ADJUSTING KEYS AND WRENCHES. Form ING. Make sure switch is in “OFF” position before plugging
habit of checking to see that keys and adjusting wrenches are in power cord.
removed from tool before turning it “on.” 20. NEVER STAND ON TOOL. Serious injury could occur
6. KEEP WORK AREA CLEAN. Cluttered areas and if the tool is tipped or if the cutting tool is accidentally
benches invite accidents. contacted.
7. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t 21. CHECK DAMAGED PARTS. Before further use of the
use power tools in damp or wet locations, or expose them to tool, a guard or other part that is damaged should be care-
rain. Keep work area well-lighted. fully checked to ensure that it will operate properly and
8. KEEP CHILDREN AND VISITORS AWAY. All children perform its intended function – check for alignment of moving
and visitors should be kept a safe distance from work area. parts, binding of moving parts, breakage of parts, mounting,
and any other conditions that may affect its operation. A
9. MAKE WORKSHOP CHILDPROOF – with padlocks, guard or other part that is damaged should be properly
master switches, or by removing starter keys. repaired or replaced.
10. DON’T FORCE TOOL. It will do the job better and be 22. DIRECTION OF FEED. Feed work into a blade or cutter
safer at the rate for which it was designed. against the direction of rotation of the blade or cutter only.
11. USE RIGHT TOOL. Don’t force tool or attachment to do 23. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
a job for which it was not designed. POWER OFF. Don’t leave tool until it comes to a complete
12. WEAR PROPER APPAREL. No loose clothing, gloves, stop.
neckties, rings, bracelets, or other jewelry to get caught in 24. DRUGS, ALCOHOL, MEDICATION. Do not operate
moving parts. Nonslip footwear is recommended. Wear tool while under the influence of drugs, alcohol or any
protective hair covering to contain long hair. medication.
13. ALWAYS USE SAFETY GLASSES. Wear safety glasses. 25. MAKE SURE TOOL IS DISCONNECTED FROM POWER
Everyday eyeglasses only have impact resistant lenses; SUPPLY while motor is being mounted, connected or re-
they are not safety glasses. Also use face or dust mask if connected.
cutting operation is dusty.
26. WARNING: The dust generated by certain woods and
14. SECURE WORK. Use clamps or a vise to hold work wood products can be injurious to your health. Always oper-
when practical. It’s safer than using your hand and frees ate machinery in well ventilated areas and provide for proper
both hands to operate tool. dust removal. Use wood dust collection systems whenever
possible.
2
