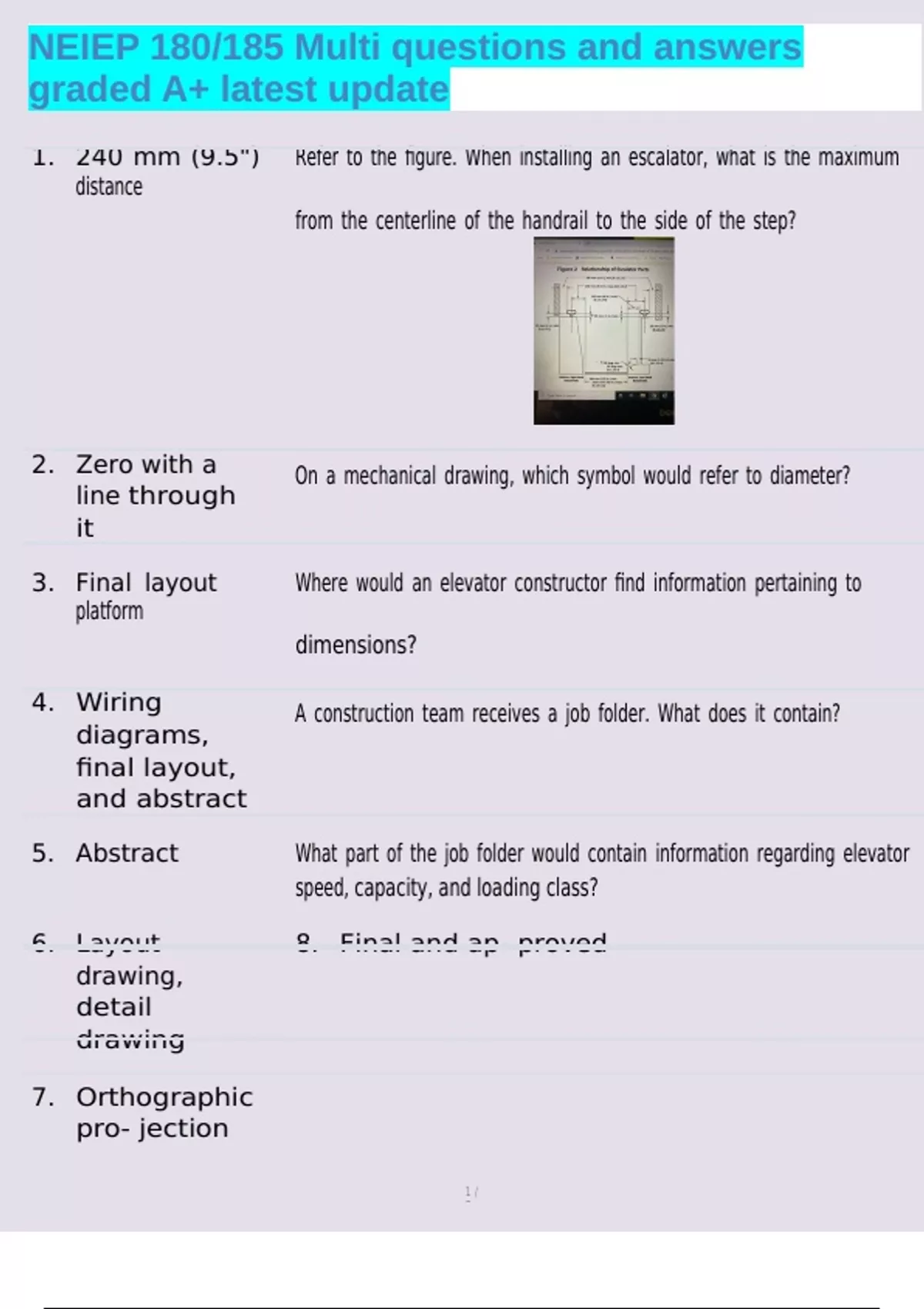

NEIEP 180/185 Multi questions and answers
graded A+ latest update
1. 240 mm (9.5") Refer to the figure. When installing an escalator, what is the maximum
distance
from the centerline of the handrail to the side of the step?
2. Zero with a On a mechanical drawing, which symbol would refer to diameter?
line through
it
3. Final layout Where would an elevator constructor find information pertaining to
platform
dimensions?
4. Wiring A construction team receives a job folder. What does it contain?
diagrams,
final layout,
and abstract
5. Abstract What part of the job folder would contain information regarding elevator
speed, capacity, and loading class?
6. Layout 8. Final and ap- proved
drawing,
detail
drawing
7. Orthographic
pro- jection
1/
7
, NEIEP 180/185 Multi questions and answers
graded A+ latest update
What are 2 types of
mechanical drawings used in What is the term for viewing an object straight on from many sides, with
elevator installations? each side being at right angles to its adjacent side?
Elevator constructors should only use which type of drawings?
9. Cut washer Mounting specifications for a governor call for plain lockwashers. Which
type is
required?
2/
7
