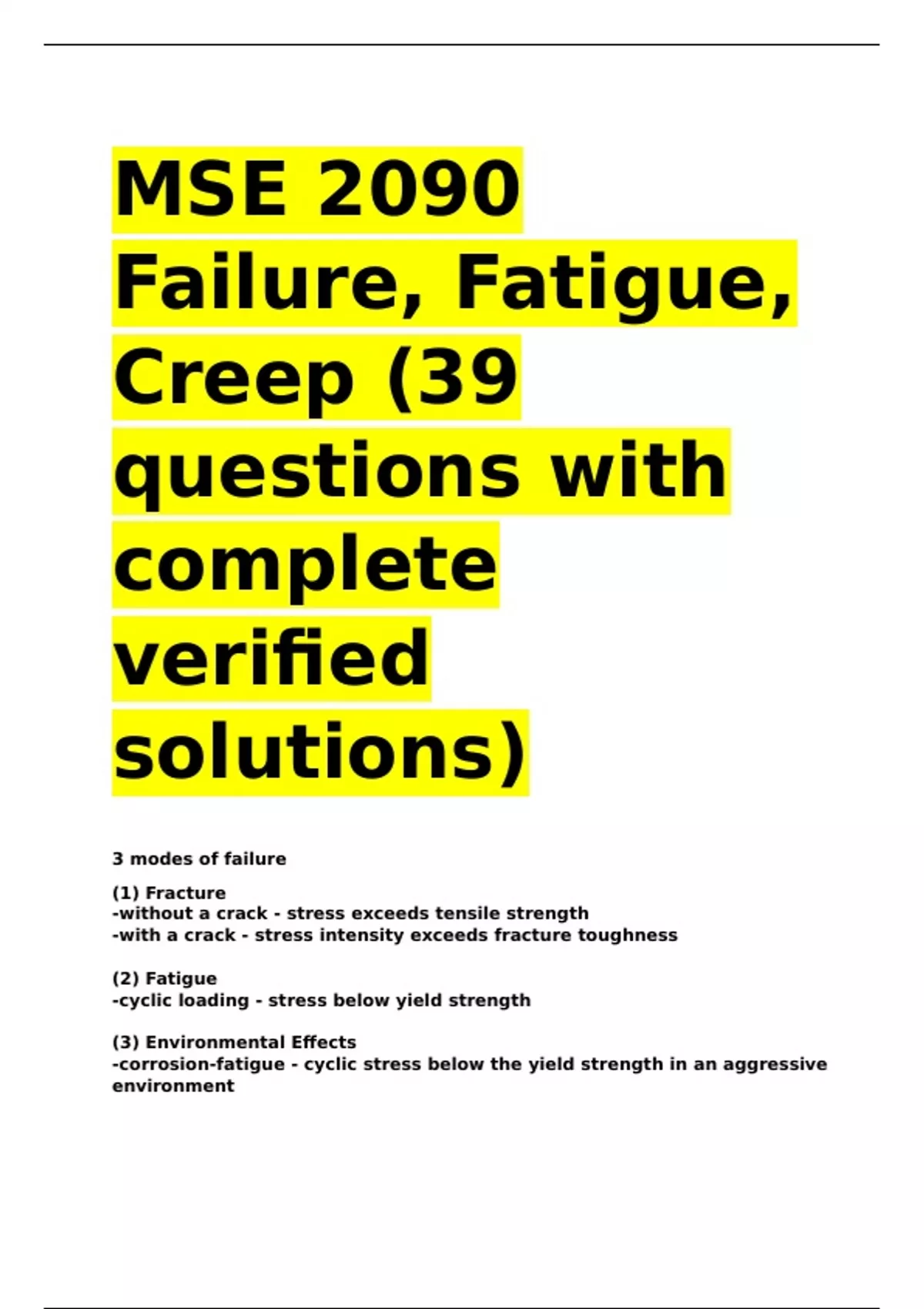

MSE 2090
Failure, Fatigue,
Creep (39
questions with
complete
verified
solutions)
3 modes of failure
(1) Fracture
-without a crack - stress exceeds tensile strength
-with a crack - stress intensity exceeds fracture toughness
(2) Fatigue
-cyclic loading - stress below yield strength
(3) Environmental Effects
-corrosion-fatigue - cyclic stress below the yield strength in an aggressive
environment
, -creep - static stress below yield strength and High T (increased strain at
constant stress)
Fracture
Separation of a body into two or more pieces in response to a static stress
at T<<Tm
2 types of fracture
(1) ductile
(2) brittle
Ductile Fracture
-extensive plastic deformation proceeds fracture
-fracture occurs slowly: "stable cracking"
-large energy absorption required
evolution of moderately ductile fracture:
necking -> void nucleation -> stable void growth and linkage (micro-void
coalescence) -> shearing at surface (unstable rapid cracking at 45˚) ->
fracture
Why is unstable rapid cracking at 45˚ along edges?
diagonal shear
Brittle Fracture
-very little plastic deformation before fracture
-fracture occurs rapidly: "unstable cracking"
-small energy absorption required
2 types of brittle fracture morphology
(1) transgranular: across the grains (most common)
(2) intergranular: along the grain boundaries (less common)
Flaws are stress concentrators
There is an elliptical hole in a plate and a stress distribution that exists in
front of a hole. Maximum stress is along the edge of the hole.
stress concentration factor (when is it bad??)
Kt (bad when greater than 3, large stress conc. factor promotes failure)
