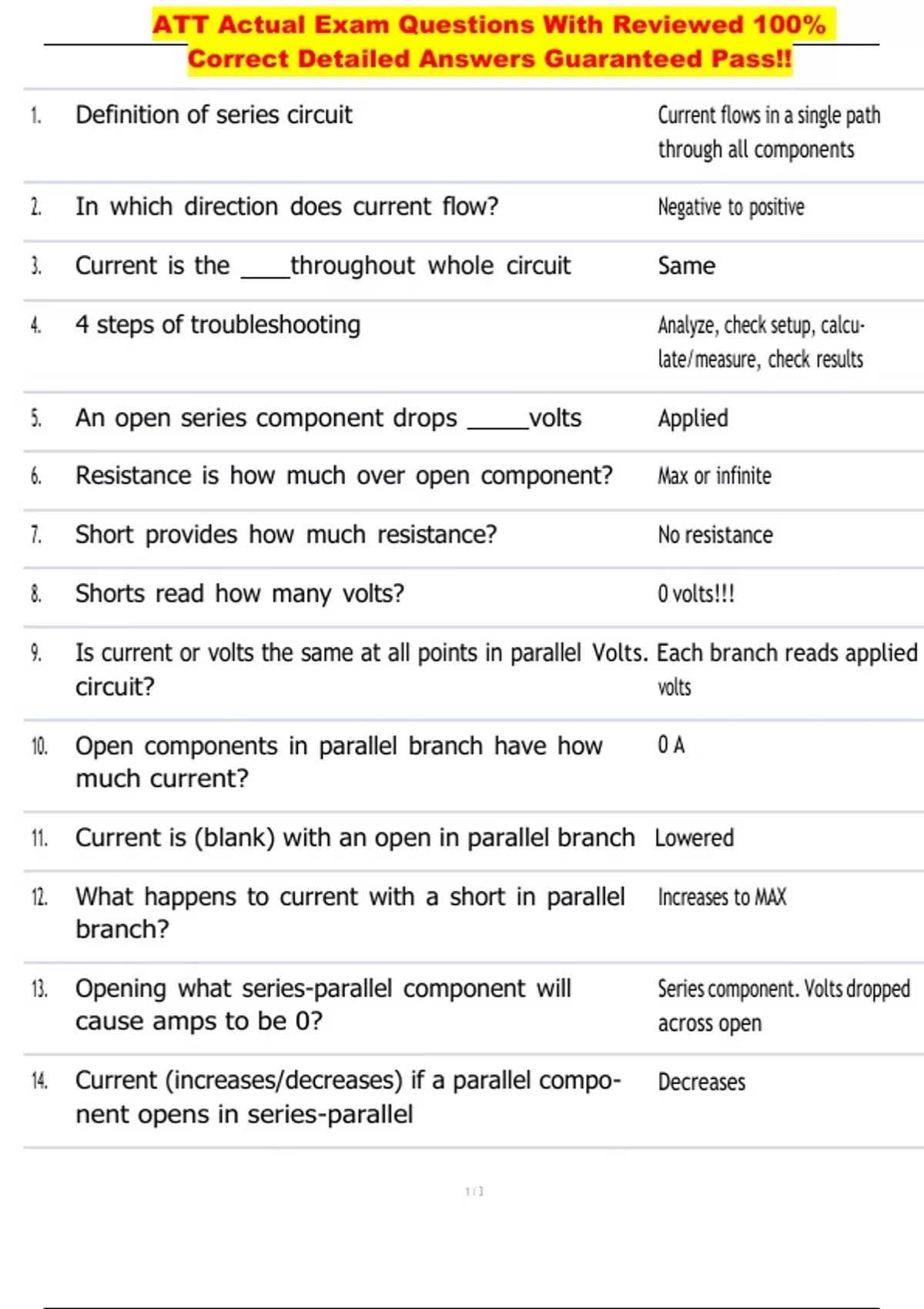

Correct Detailed Answers Guaranteed Pass!!
1. Definition of series circuit Current flows in a single path
through all components
2. In which direction does current flow? Negative to positive
3. Current is the throughout whole circuit Same
4. 4 steps of troubleshooting Analyze, check setup, calcu-
late/measure, check results
5. An open series component drops volts Applied
6. Resistance is how much over open component? Max or infinite
7. Short provides how much resistance? No resistance
8. Shorts read how many volts? 0 volts!!!
9. Is current or volts the same at all points in parallel Volts. Each branch reads applied
circuit? volts
10. Open components in parallel branch have how 0A
much current?
11. Current is (blank) with an open in parallel branch Lowered
12. What happens to current with a short in parallel Increases to MAX
branch?
13. Opening what series-parallel component will Series component. Volts dropped
cause amps to be 0? across open
14. Current (increases/decreases) if a parallel compo- Decreases
nent opens in series-parallel
