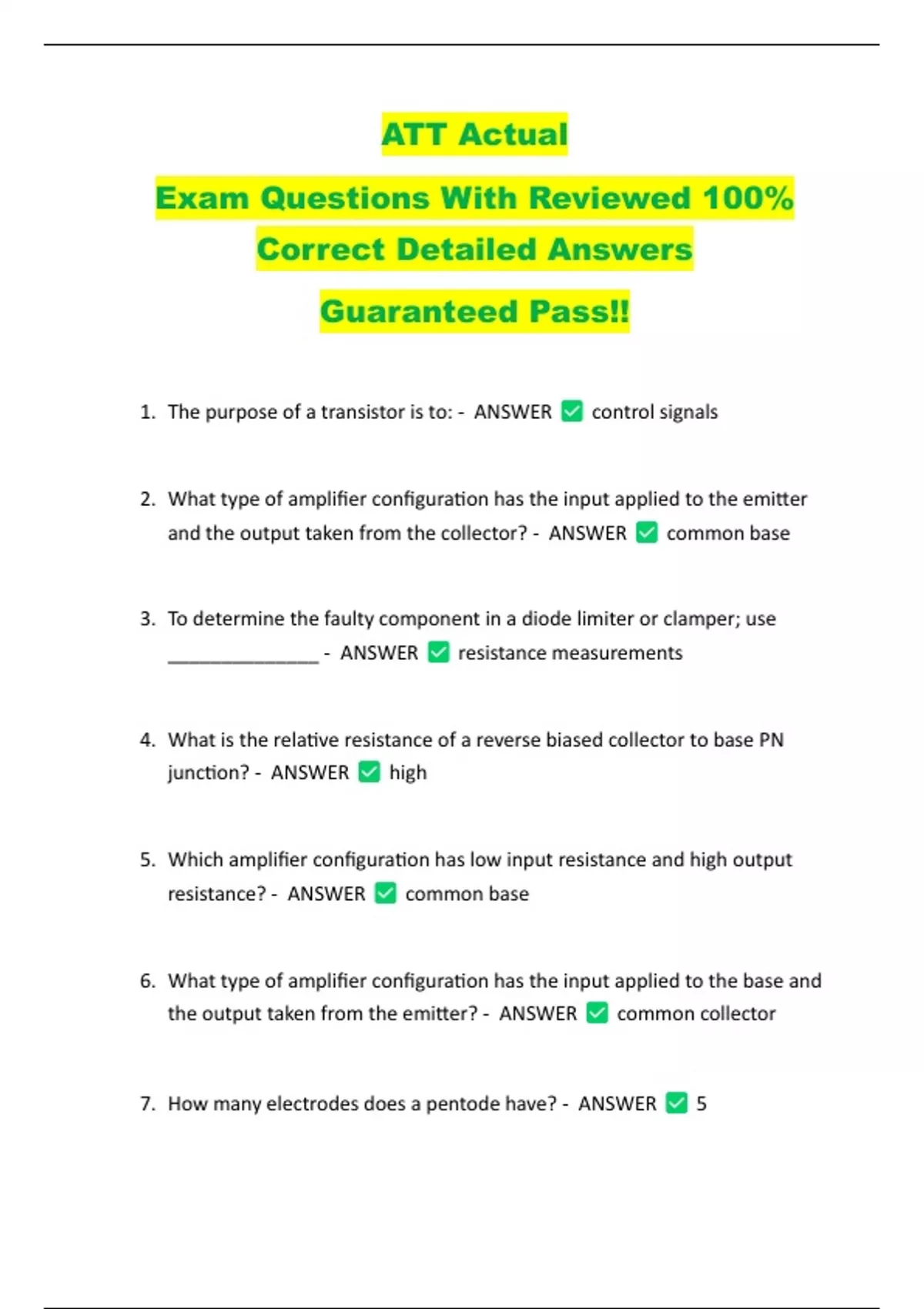

ATT Actual
Exam Questions With Reviewed 100%
Correct Detailed Answers
Guaranteed Pass!!
1. The purpose of a transistor is to: - ANSWER control signals
2. What type of amplifier configuration has the input applied to the emitter
and the output taken from the collector? - ANSWER common base
3. To determine the faulty component in a diode limiter or clamper; use
______________ - ANSWER resistance measurements
4. What is the relative resistance of a reverse biased collector to base PN
junction? - ANSWER high
5. Which amplifier configuration has low input resistance and high output
resistance? - ANSWER common base
6. What type of amplifier configuration has the input applied to the base and
the output taken from the emitter? - ANSWER common collector
7. How many electrodes does a pentode have? - ANSWER 5
, 8. To determine if a diode limiter or clamper circuit is operating normally, you
use _______ - ANSWER waveform measurements
9. When the diode is forward biased. - ANSWER When does limiting
action occurs in a parallel limiter?
10.The capacitor in a clamper circuit has a fast charge path when diode is
_____ - ANSWER Forward bias
11.To determine faulty component in a diode limiter or clamper circuit, you
use ____. - ANSWER Resistance measurement
12.What happens in a transistor when the saturation point is reached? -
ANSWER Collector current (Ic) stops increasing
13.What happens in a transistor when the saturation point is reached? -
ANSWER Ic stops increasing
14.What happens in a transistor when the base voltage reverse biases the
emitter to base PN junction? - ANSWER cutoff occurs
15.What happens in a transistor when the base voltage reverse biases the
emitter to base junction? - ANSWER Cutoff occurs
