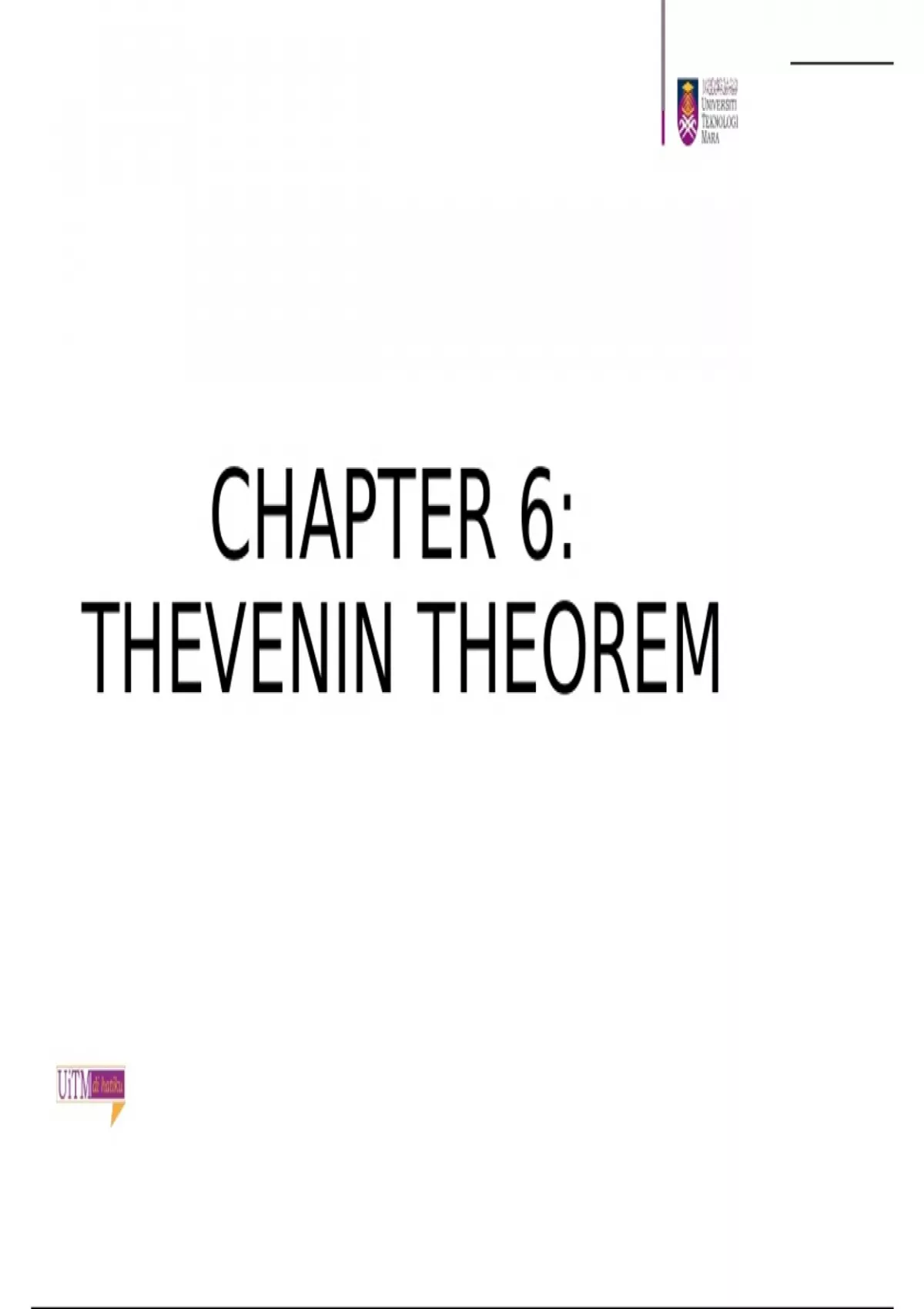

CHAPTER 6:
THEVENIN THEOREM
, INTRODUCTION
1. Thevenin theorem normally is used in power circuit
where there is a load connected with the linear/bilateral
circuit.
2. The linear/bilateral circuit can be simplified using
Thevenin theorem to be a single supply and a single
resistor (or impedance for AC circuit) connected in
series. This is called Thevenin equivalent circuit.
3. The load connected with the linear circuit, can be varied
depends on the load type, current and voltage.
THEVENIN THEOREM
, INTRODUCTION
1. Thevenin theorem normally is used in power circuit
where there is a load connected with the linear/bilateral
circuit.
2. The linear/bilateral circuit can be simplified using
Thevenin theorem to be a single supply and a single
resistor (or impedance for AC circuit) connected in
series. This is called Thevenin equivalent circuit.
3. The load connected with the linear circuit, can be varied
depends on the load type, current and voltage.
