1

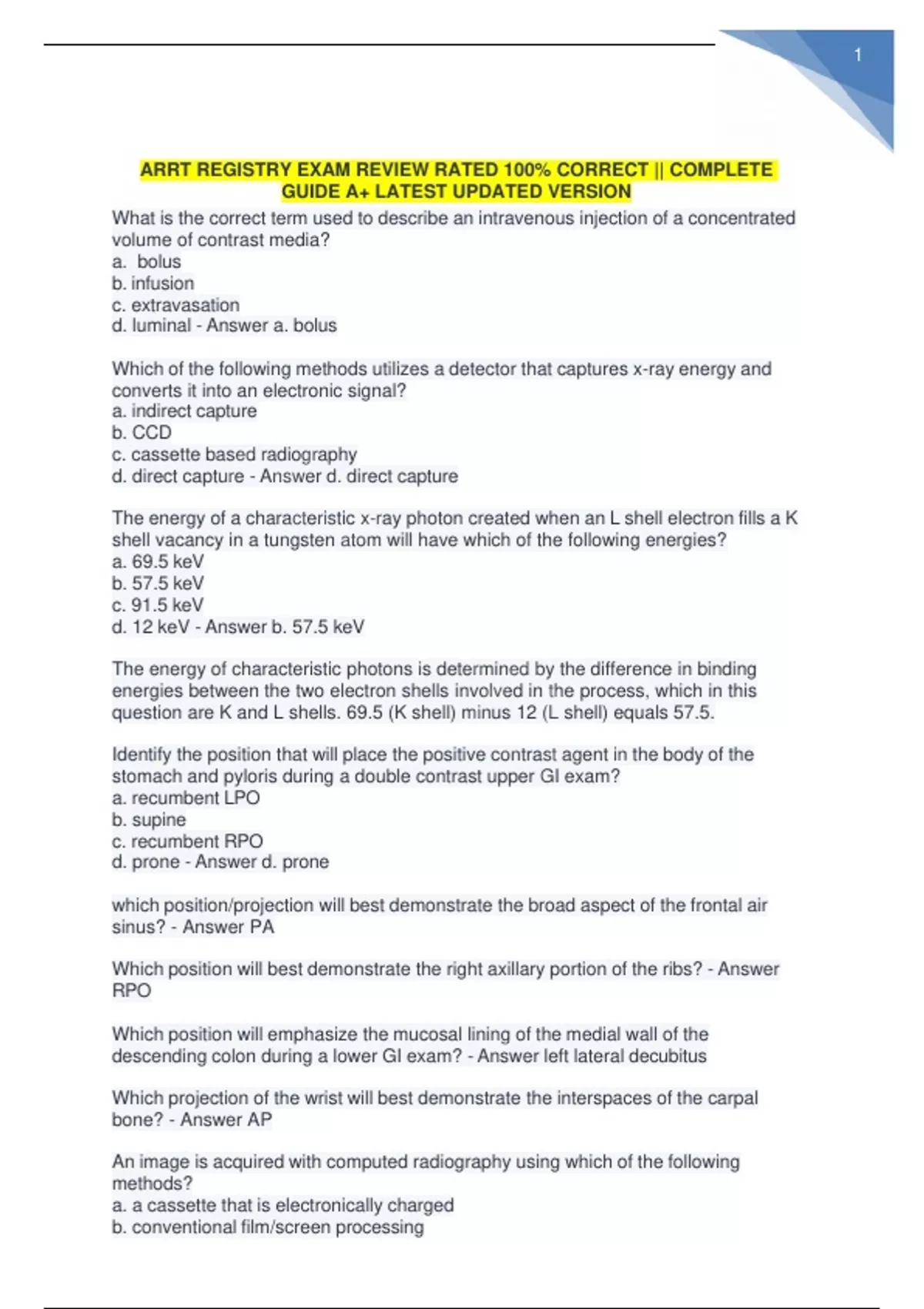

ARRT REGISTRY EXAM REVIEW RATED 100% CORRECT || COMPLETE
GUIDE A+ LATEST UPDATED VERSION
What is the correct term used to describe an intravenous injection of a concentrated
volume of contrast media?
a. bolus
b. infusion
c. extravasation
d. luminal - Answer a. bolus
Which of the following methods utilizes a detector that captures x-ray energy and
converts it into an electronic signal?
a. indirect capture
b. CCD
c. cassette based radiography
PR
d. direct capture - Answer d. direct capture
The energy of a characteristic x-ray photon created when an L shell electron fills a K
shell vacancy in a tungsten atom will have which of the following energies?
a. 69.5 keV
b. 57.5 keV
O
c. 91.5 keV
d. 12 keV - Answer b. 57.5 keV
FD
The energy of characteristic photons is determined by the difference in binding
energies between the two electron shells involved in the process, which in this
question are K and L shells. 69.5 (K shell) minus 12 (L shell) equals 57.5.
Identify the position that will place the positive contrast agent in the body of the
stomach and pyloris during a double contrast upper GI exam?
O
a. recumbent LPO
b. supine
c. recumbent RPO
C
d. prone - Answer d. prone
which position/projection will best demonstrate the broad aspect of the frontal air
sinus? - Answer PA
Which position will best demonstrate the right axillary portion of the ribs? - Answer
RPO
Which position will emphasize the mucosal lining of the medial wall of the
descending colon during a lower GI exam? - Answer left lateral decubitus
Which projection of the wrist will best demonstrate the interspaces of the carpal
bone? - Answer AP
An image is acquired with computed radiography using which of the following
methods?
a. a cassette that is electronically charged
b. conventional film/screen processing
, 2
c. the use of a storage phosphor
d. nonne of the above - Answer c. the use of a storage phosphor
A transformer constructed with 10,00 primary turns and 2,500 secondary turns will
yield an output voltage of when being supplied with 210 volts.
a. 2710 volts
b. 52.5 volts
c. 840 volts
d. 525 volts - Answer b. 52.5 volts
Which of the following circuit components is considered to be the source for kVp?
a. step-up transformer
b. autotransformer
c. step-down transformer
d. high voltage transformer - Answer b. autotransformer
PR
Which of the following meds is administered to a patient during an allergic reaction?
a. Adenocard
b. Intropin
c. Lasix
O
d. Decadron - Answer d. Decadron
If the improper body part is selected from the exam menu, which of the following may
result?
FD
a. there will be no image
b. there may be image misinterpretation
c. will exhibit proper contrast and density
d. image sharpness will not be affected - Answer b. there may be image
misinterpretation
O
Which of the following combinations are needed in digital radiography system to
produce an image?
C
a. intensifying screen & TFT
b. x-ray absorber & CCD
c. . storage phosphor plate & CCD
d. storage phosphor plate & TFT - Answer b. x-ray absorber & CCD
Exposure latitude is also known as which of the following?
a. dynamic range
b. spatial resolution
c. subject contrast
d. characteristic response - Answer a. dynamic range
All of the following components are within the glass/metal enclosure of the x-ray tube
except...
a. anode
b. stators
c. rotors
, 3
d. filament wires - Answer b. stators
Universal precautions should be practiced on..
a. all isolation patients
b. CCU patients
c. pediatric patients
d. All patients - Answer d. All patients
What is the minimum source to skin distance allowed for a mobile fluoroscopic unit?
- Answer 12 inches
Pregnant technologists should not receive more than rem for the duration of the
pregnancy.
a. 3
b. 0.5
PR
c. 0.15
d. 2.5 - Answer b. 0.5 rem
How much annual exposure can a 49 year old occupational worker receive?
a. 490 mSv
O
b. 290 mSv
c. 50 mSv
d. 75 mSv - Answer c. 50 mSv
FD
What is the primary purpose for the use of beam filtration?
a. to reduce skin entrance exposure
b. to modify subject contrast
c. to limit the production of secondary radiation
d. to offset variations in part thickness - Answer a. to reduce skin entrance exposure
O
The reproducibility of exposures of a radiographic unit must not vary more than
% to be considered within acceptable limits.
C
a. 2.5
b. 5
c. 10
d. 12.5 - Answer 5%
Average body build comprising 50% of the population? - Answer Sthenic
Below average body build comprising 35% of the population? - Answer Hyposthenic
Extremely small body build comprising 10% of the population? - Answer Asthenic
Above average or massive body build comprising 5% of the population? - Answer
Hypersthenic
What makes up the axial skeleton? - Answer toward the center or middle of the
body- includes skull, hyoid, vertebral column, and thorax.
, 4
What makes up the appendicular skeleton? - Answer upper & lower extremities, the
shoulder girdle & pelvic girdle
The mastoid process is located at the level of... - Answer C1
The thyroid cartilage is located at the level of... - Answer C4-5
The vertebral prominens is located at the level of... - Answer C7
The sternal/jugular notch is located at the level of... - Answer T2-3
The sternal angle is located at the level of... - Answer T4-5
The inferior angle of the scapula is located at the level of... - Answer T7
PR
The xiphoid tip is located at the level of... - Answer T10
The umbilicus is at the level of... - Answer L3-4
O
The iliac crest is at the level of... - Answer L4
The greater trochanter is at the level of... - Answer the pubic symphysis
FD
The lower costal margin is at the level of... - Answer L1-2
The ASIS is at the level of... - Answer S1
AP Axial Skull is also known as... - Answer "Townes" method
O
PA Axial skull is also known as... - Answer Caldwell method
C
In a PA Axial skull, where should the petrous ridges be seen? - Answer projected in
the lower third of the orbits
The CR for a PA axial skull? - Answer 15 degrees caudad, exiting the nasion
The CR for an AP axial skull? - Answer 30 degrees caudad thru the foramen
magnum to the OML
Which line in perpendicular to the IR for a lateral skull? - Answer IPL
The cassette-based digital image receptor uses which of the following as the image
receptor?
a. TFT
b. PSP
c. CCD
d. none of the above - Answer b. PSP
