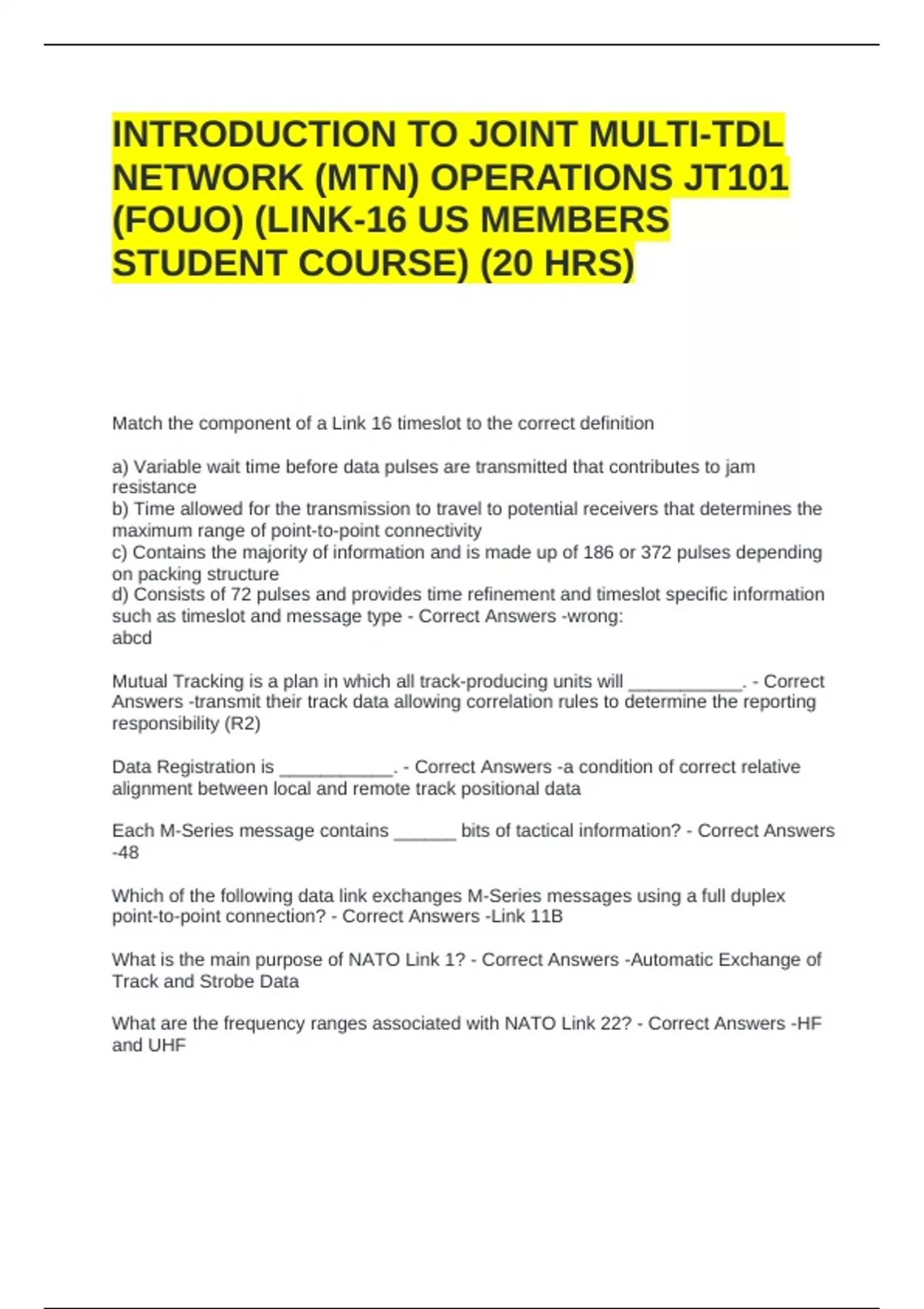

INTRODUCTION TO JOINT MULTI-TDL
NETWORK (MTN) OPERATIONS JT101
(FOUO) (LINK-16 US MEMBERS
STUDENT COURSE) (20 HRS)
Match the component of a Link 16 timeslot to the correct definition
a) Variable wait time before data pulses are transmitted that contributes to jam
resistance
b) Time allowed for the transmission to travel to potential receivers that determines the
maximum range of point-to-point connectivity
c) Contains the majority of information and is made up of 186 or 372 pulses depending
on packing structure
d) Consists of 72 pulses and provides time refinement and timeslot specific information
such as timeslot and message type - Correct Answers -wrong:
abcd
Mutual Tracking is a plan in which all track-producing units will ___________. - Correct
Answers -transmit their track data allowing correlation rules to determine the reporting
responsibility (R2)
Data Registration is ___________. - Correct Answers -a condition of correct relative
alignment between local and remote track positional data
Each M-Series message contains ______ bits of tactical information? - Correct Answers
-48
Which of the following data link exchanges M-Series messages using a full duplex
point-to-point connection? - Correct Answers -Link 11B
What is the main purpose of NATO Link 1? - Correct Answers -Automatic Exchange of
Track and Strobe Data
What are the frequency ranges associated with NATO Link 22? - Correct Answers -HF
and UHF
,Select the following platforms that are JREAP capable. Select all that apply.
[Remediation Accessed :N]
F-15E
AWACS
TAOC
P-8A - Correct Answers -not:
3 wo TAOC
3woF-15E
_________ produce and transmit surveillance tracks. - Correct Answers -C2IUs
If a TN is in use, operators should be alerted and prohibited from assigning that TN. -
Correct Answers -True
The legal Link 11/11B Track Qualities (TQs) are _____ while Link 16 TQs range from
_____. - Correct Answers -0-7, 0-15
The only tracks that can't be manually correlated are: Select all that apply. [Remediation
Accessed :N]
A local track and a remote track
Simulated to live
Different environments of track with active environment conflict
Two remote tracks - Correct Answers -not:
3 wo Different environments of track with active environment conflict
_______ exist when the same track number is used by two or more IUs for two or more
different tracks. [Remediation Accessed :N] - Correct Answers -not:
Environmental conflicts
Match the proper terminology to the correct definition
a) A set of protocols used to exchange J-Series messages using non-JTIDS/MIDS
equipment
b) The language Link 16 capable weapons systems use to exchange tactical
information
c) Conventions and record message formats that support information exchange defined
by MIL-STD-6016
d) Communications component of Link 16
JTIDS/MIDS
Link 16
J-Series Messages
JREAP - Correct Answers -wrong:
a Link 16
b JTIDS/MIDS
c JREAP
d J-Series Messages
, b JTIDS/MIDS
c J-Series Messages
a JREAP
d Link 16
b JTIDS/MIDS
a J-Series Messages
d Link 16
c JREAP
a Link 16
b JTIDS/MIDS
c JREAP
b J-Series Messages
The ____________ pseudo-randomly assigns a center frequency to each pulse.
[Remediation Accessed :N] - Correct Answers -wrong:
Message Security (MSEC) crypto variable
What portion of the electromagnetic spectrum do Link 16 terminals operate?
[Remediation Accessed :N] - Correct Answers -wrong:
225 - 400 MHz frequency band
175 - 255 MHz frequency band
What is the link margin value that must be achieved to force an enemy jammer at equal
distance to a receiving Link 16 terminal to use 128 times more power than the
transmitting terminal? [Remediation Accessed :N] - Correct Answers -wrong:
72 dB
31 dB
16 dB
Which of the following IS NOT true of the use of the Link 16 information assurance
feature known as double pulse transmissions? [Remediation Accessed :N] - Correct
Answers -wrong:
Receiving terminal will decode the redundant information as normal
Provides redundancy to prevent against jamming-induced data loss
Which of the following IS NOT true of Link 16 spread spectrum processing? - Correct
Answers -Decreases the power transmitted over any single frequency
Which Link 16 jam resistance characteristic defines the required distance between a
jammer and a receiver to jam Link 16 communications using equal power?
[Remediation Accessed :N] - Correct Answers -Range ratio
wrong:
Link margin
