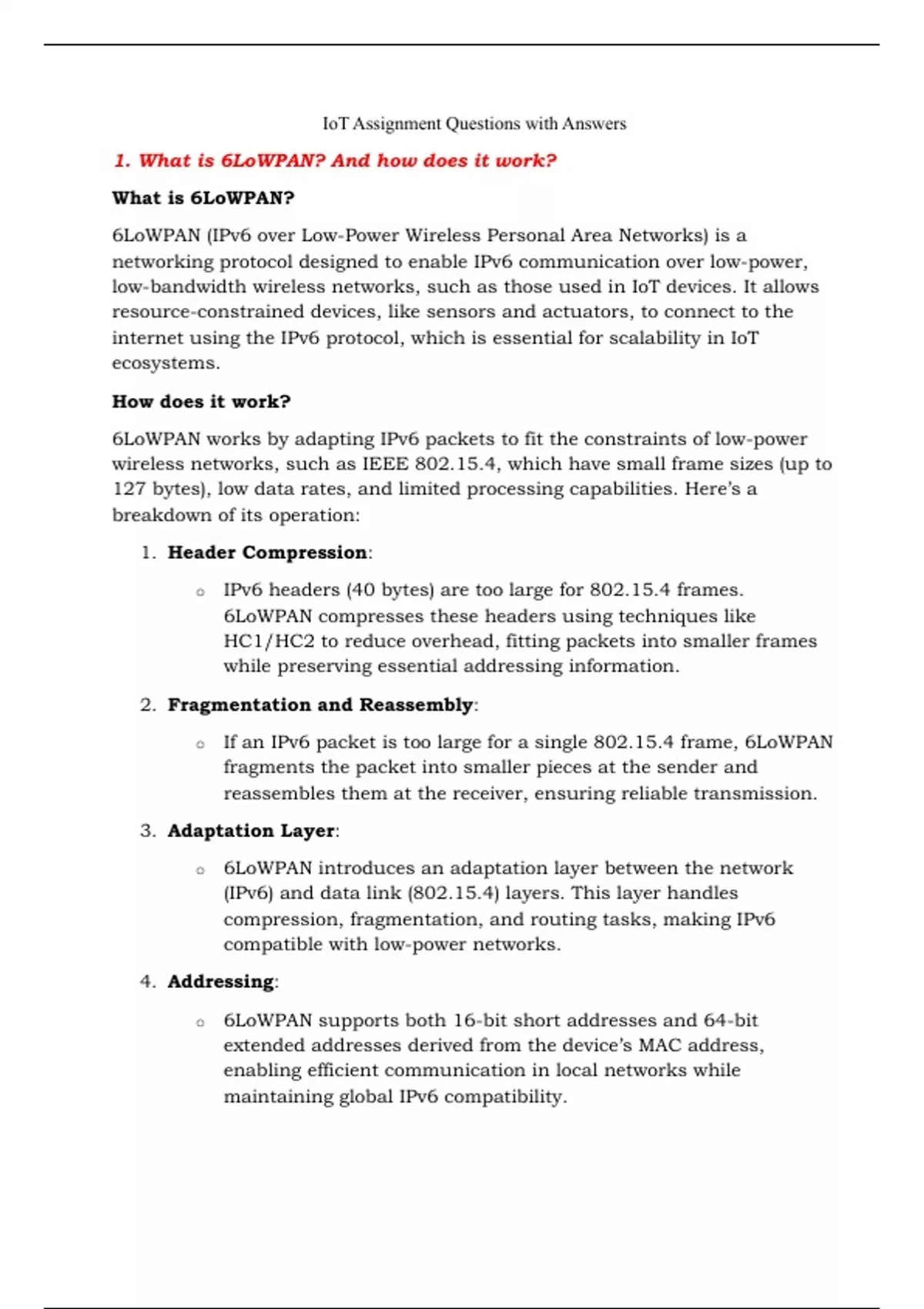

IoT Assignment Questions with Answers
1. What is 6LoWPAN? And how does it work?
What is 6LoWPAN?
6LoWPAN (IPv6 over Low-Power Wireless Personal Area Networks) is a
networking protocol designed to enable IPv6 communication over low-power,
low-bandwidth wireless networks, such as those used in IoT devices. It allows
resource-constrained devices, like sensors and actuators, to connect to the
internet using the IPv6 protocol, which is essential for scalability in IoT
ecosystems.
How does it work?
6LoWPAN works by adapting IPv6 packets to fit the constraints of low-power
wireless networks, such as IEEE 802.15.4, which have small frame sizes (up to
127 bytes), low data rates, and limited processing capabilities. Here’s a
breakdown of its operation:
1. Header Compression:
o IPv6 headers (40 bytes) are too large for 802.15.4 frames.
6LoWPAN compresses these headers using techniques like
HC1/HC2 to reduce overhead, fitting packets into smaller frames
while preserving essential addressing information.
2. Fragmentation and Reassembly:
o If an IPv6 packet is too large for a single 802.15.4 frame, 6LoWPAN
fragments the packet into smaller pieces at the sender and
reassembles them at the receiver, ensuring reliable transmission.
3. Adaptation Layer:
o 6LoWPAN introduces an adaptation layer between the network
(IPv6) and data link (802.15.4) layers. This layer handles
compression, fragmentation, and routing tasks, making IPv6
compatible with low-power networks.
4. Addressing:
o 6LoWPAN supports both 16-bit short addresses and 64-bit
extended addresses derived from the device’s MAC address,
enabling efficient communication in local networks while
maintaining global IPv6 compatibility.
, 5. Routing:
o It supports mesh networking and routing protocols like RPL
(Routing Protocol for Low-Power and Lossy Networks) to enable
multi-hop communication, allowing devices to relay data through
neighboring nodes to reach a gateway or edge router.
6. Integration with IP Networks:
o A 6LoWPAN border router (6LBR) or gateway connects the low-
power network to the broader internet, translating between
compressed 6LoWPAN packets and standard IPv6 packets for
seamless communication.
Key Features:
• Enables end-to-end IPv6 connectivity for IoT devices.
• Supports low-power operation, critical for battery-powered devices.
• Compatible with standards like IEEE 802.15.4, Zigbee, Bluetooth Low
Energy, and Thread.
By compressing and fragmenting IPv6 packets, 6LoWPAN ensures that even
resource-constrained IoT devices can participate in IP-based networks,
enabling scalable and interoperable IoT deployments.
----------x---------------x-------------------x-----------------x---------------x------------
2. What are the key features of 6LoWPAN?
6LoWPAN (IPv6 over Low-Power Wireless Personal Area Networks) is designed
to enable IPv6 communication for resource-constrained IoT devices. Its key
features include:
• IPv6 Support: Enables end-to-end connectivity for IoT devices using
IPv6, ensuring scalability and global addressability.
• Header Compression: Compresses large IPv6 headers (40 bytes) to fit
within the small frame sizes of low-power networks (e.g., IEEE 802.15.4’s
127-byte limit), reducing overhead.
• Fragmentation and Reassembly: Splits large IPv6 packets into smaller
fragments for transmission over low-bandwidth networks and
reassembles them at the destination.
, • Low-Power Operation: Optimized for energy-efficient communication,
critical for battery-powered IoT devices like sensors and actuators.
• Adaptation Layer: Introduces a layer between the network (IPv6) and
data link (e.g., 802.15.4) layers to handle compression, fragmentation,
and routing.
• Mesh Networking: Supports multi-hop communication through mesh
topologies, using routing protocols like RPL to extend network coverage.
• Efficient Addressing: Uses 16-bit short addresses or 64-bit extended
addresses derived from MAC addresses for local communication,
maintaining IPv6 compatibility.
• Interoperability: Compatible with standards like IEEE 802.15.4, Zigbee,
Thread, and Bluetooth Low Energy, enabling integration with various IoT
ecosystems.
• Seamless Internet Integration: Connects low-power networks to the
internet via border routers (6LBR), translating between 6LoWPAN and
standard IPv6 packets.
• Security Support: Leverages IPv6 security mechanisms (e.g., IPsec)
while adapting to resource constraints, ensuring secure communication.
These features make 6LoWPAN ideal for IoT applications like smart homes,
industrial monitoring, and healthcare, where devices have limited power,
memory, and bandwidth.
----------x---------------x-------------------x-----------------x---------------x------------
3. How does 6LoWPAN differ from traditional IPv6 networks?
, ----------x---------------x-------------------x-----------------x---------------x------------
