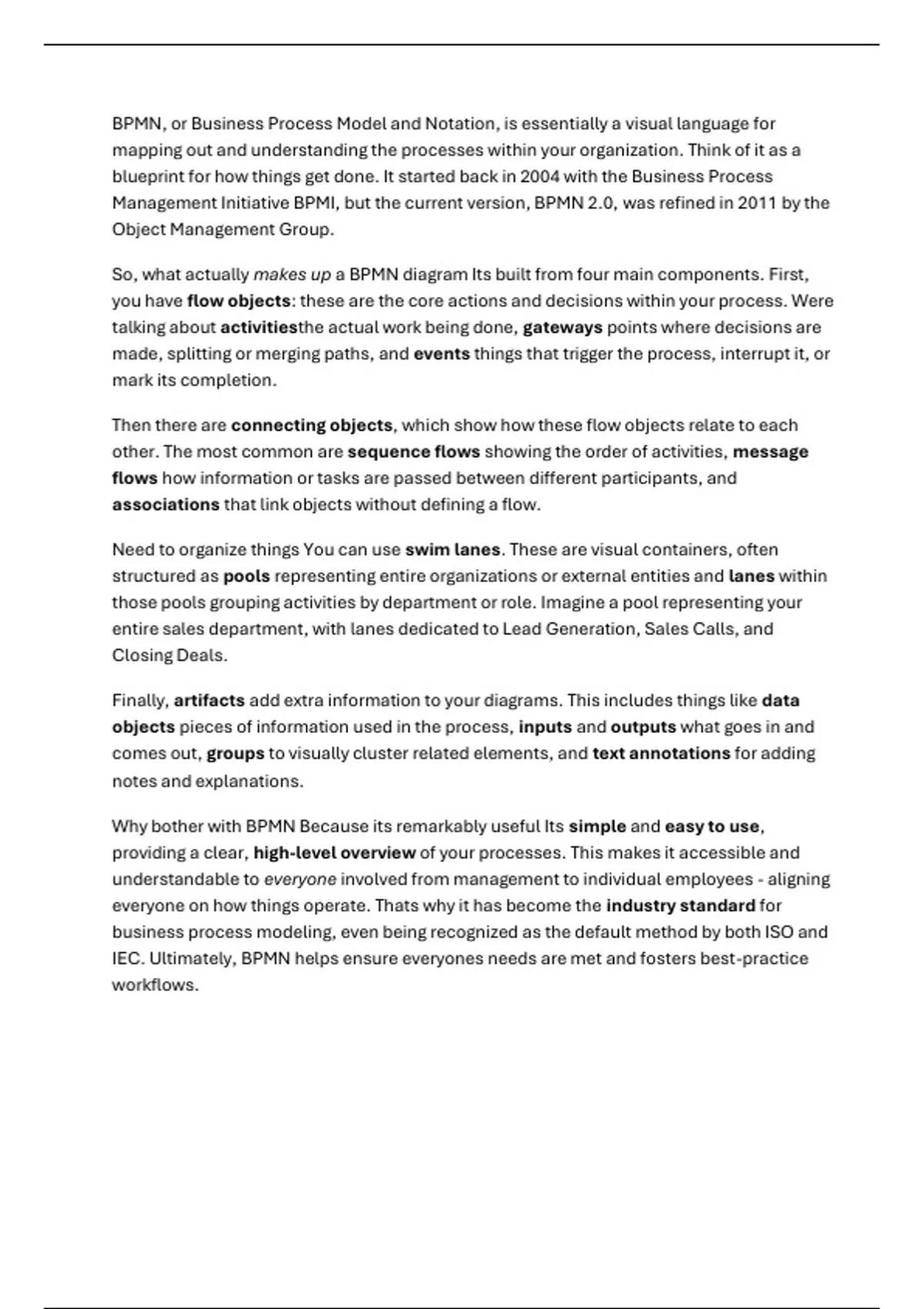

BPMN, or Business Process Model and Notation, is essentially a visual language for
mapping out and understanding the processes within your organization. Think of it as a
blueprint for how things get done. It started back in 2004 with the Business Process
Management Initiative BPMI, but the current version, BPMN 2.0, was refined in 2011 by the
Object Management Group.
So, what actually makes up a BPMN diagram Its built from four main components. First,
you have flow objects: these are the core actions and decisions within your process. Were
talking about activitiesthe actual work being done, gateways points where decisions are
made, splitting or merging paths, and events things that trigger the process, interrupt it, or
mark its completion.
Then there are connecting objects, which show how these flow objects relate to each
other. The most common are sequence flows showing the order of activities, message
flows how information or tasks are passed between different participants, and
associations that link objects without defining a flow.
Need to organize things You can use swim lanes. These are visual containers, often
structured as pools representing entire organizations or external entities and lanes within
those pools grouping activities by department or role. Imagine a pool representing your
entire sales department, with lanes dedicated to Lead Generation, Sales Calls, and
Closing Deals.
Finally, artifacts add extra information to your diagrams. This includes things like data
objects pieces of information used in the process, inputs and outputs what goes in and
comes out, groups to visually cluster related elements, and text annotations for adding
notes and explanations.
Why bother with BPMN Because its remarkably useful Its simple and easy to use,
providing a clear, high-level overview of your processes. This makes it accessible and
understandable to everyone involved from management to individual employees - aligning
everyone on how things operate. Thats why it has become the industry standard for
business process modeling, even being recognized as the default method by both ISO and
IEC. Ultimately, BPMN helps ensure everyones needs are met and fosters best-practice
workflows.
mapping out and understanding the processes within your organization. Think of it as a
blueprint for how things get done. It started back in 2004 with the Business Process
Management Initiative BPMI, but the current version, BPMN 2.0, was refined in 2011 by the
Object Management Group.
So, what actually makes up a BPMN diagram Its built from four main components. First,
you have flow objects: these are the core actions and decisions within your process. Were
talking about activitiesthe actual work being done, gateways points where decisions are
made, splitting or merging paths, and events things that trigger the process, interrupt it, or
mark its completion.
Then there are connecting objects, which show how these flow objects relate to each
other. The most common are sequence flows showing the order of activities, message
flows how information or tasks are passed between different participants, and
associations that link objects without defining a flow.
Need to organize things You can use swim lanes. These are visual containers, often
structured as pools representing entire organizations or external entities and lanes within
those pools grouping activities by department or role. Imagine a pool representing your
entire sales department, with lanes dedicated to Lead Generation, Sales Calls, and
Closing Deals.
Finally, artifacts add extra information to your diagrams. This includes things like data
objects pieces of information used in the process, inputs and outputs what goes in and
comes out, groups to visually cluster related elements, and text annotations for adding
notes and explanations.
Why bother with BPMN Because its remarkably useful Its simple and easy to use,
providing a clear, high-level overview of your processes. This makes it accessible and
understandable to everyone involved from management to individual employees - aligning
everyone on how things operate. Thats why it has become the industry standard for
business process modeling, even being recognized as the default method by both ISO and
IEC. Ultimately, BPMN helps ensure everyones needs are met and fosters best-practice
workflows.
