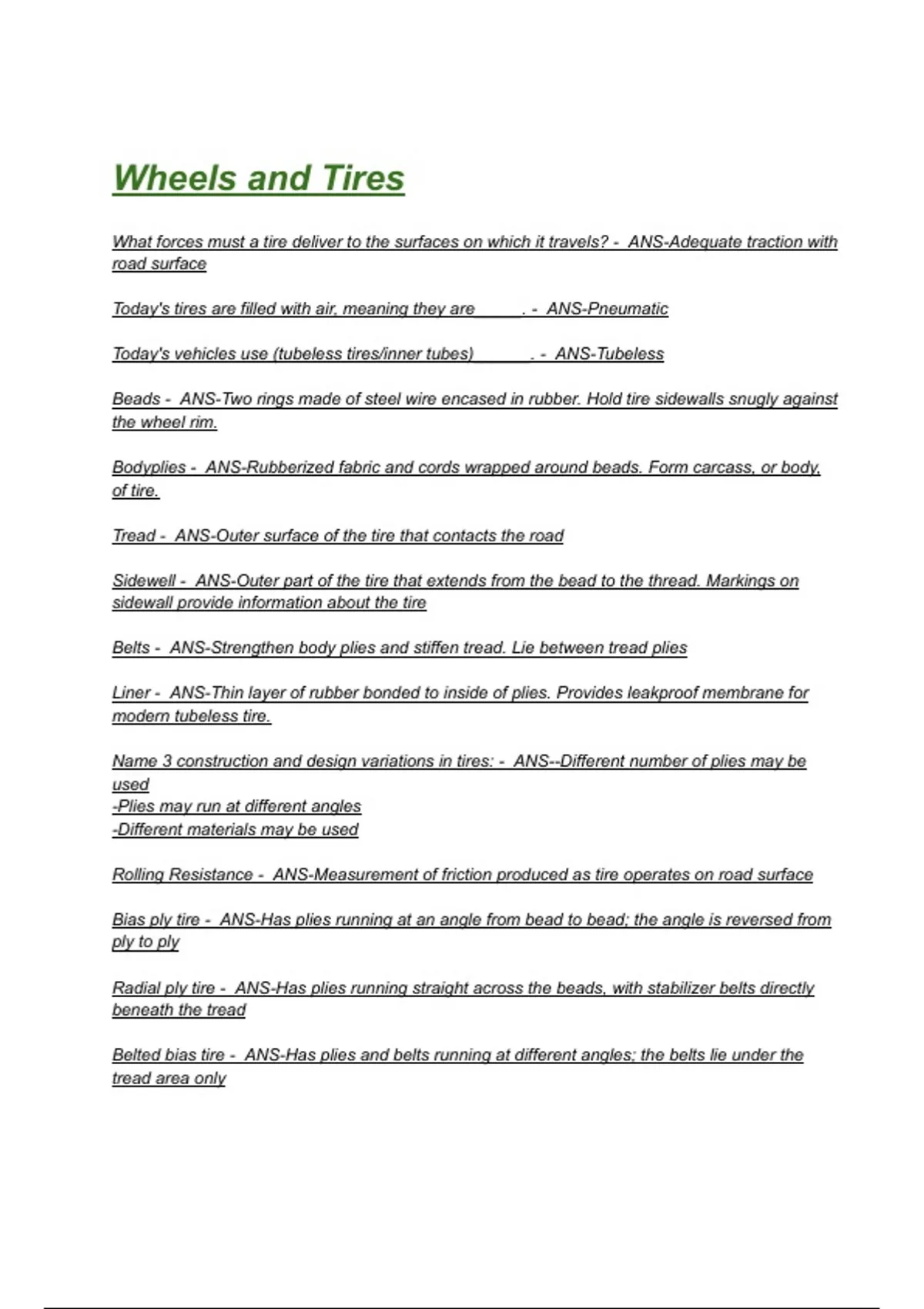

Wheels and Tires
What forces must a tire deliver to the surfaces on which it travels? - ANS-Adequate traction with
road surface
Today's tires are filled with air, meaning they are_____. - ANS-Pneumatic
Today's vehicles use (tubeless tires/inner tubes)______. - ANS-Tubeless
Beads - ANS-Two rings made of steel wire encased in rubber. Hold tire sidewalls snugly against
the wheel rim.
Bodyplies - ANS-Rubberized fabric and cords wrapped around beads. Form carcass, or body,
of tire.
Tread - ANS-Outer surface of the tire that contacts the road
Sidewell - ANS-Outer part of the tire that extends from the bead to the thread. Markings on
sidewall provide information about the tire
Belts - ANS-Strengthen body plies and stiffen tread. Lie between tread plies
Liner - ANS-Thin layer of rubber bonded to inside of plies. Provides leakproof membrane for
modern tubeless tire.
Name 3 construction and design variations in tires: - ANS--Different number of plies may be
used
-Plies may run at different angles
-Different materials may be used
Rolling Resistance - ANS-Measurement of friction produced as tire operates on road surface
Bias ply tire - ANS-Has plies running at an angle from bead to bead; the angle is reversed from
ply to ply
Radial ply tire - ANS-Has plies running straight across the beads, with stabilizer belts directly
beneath the tread
Belted bias tire - ANS-Has plies and belts running at different angles; the belts lie under the
tread area only
, What was a benefit of the stable footprint found on a radial tire? - ANS-Very flexible sidewall
and stiff tread fo very stable footprint
What do tire markings reveal? - ANS--Tire size
-Tire model
-Load-carrying ability
-Inflation pressure
-Number of plies
-Speed rating
-Manufacturer
Identify the 2 common size designations for tires: - ANS--Alpha-numeric
-P-metric
What does GR 78-15 mean on a tire sidewall? - ANS--Load/size relationship
-Radial design
-Height-to-width ratio (65, 70, 78)
-Rim or wheel diameter in inches (13, 14, 15)
The height-to-width ratio, known as the ________ ratio, is the most difficult value to understand
in the tire size designation. - ANS-Aspect
The amount of weight the tire can carry at the recommended inflation pressure is known as the
__________ ______ rating. - ANS-Maximum load
A maximum recommended inflation pressure of ____ psi is common for many tires. - ANS-32
What does a greater number of plies or higher ply rating generally indicate? - ANS-Greater
load-carrying ability
What is the significance of DOT on the tire sidewall? - ANS-Indicates tire passed prescribed
safety tests. identifies particular tire manufacturer, plant location, construction, and date of
manufacturer
The higher the tread wear number, the (more/less)______ resistant the tire is to wear. -
ANS-More
Which tire rating provides the least traction out of ratings A, B, and C (A being best and C being
worst)? - ANS-C
Tire Speed Ratings - ANS-Maximum allowable sustained road speed a tire can withstand
without failure. Range from B(31 MPH) to Z(149 MPH). Tire's speed rating of tire must be higher
than speed at which vehicle will be driven
