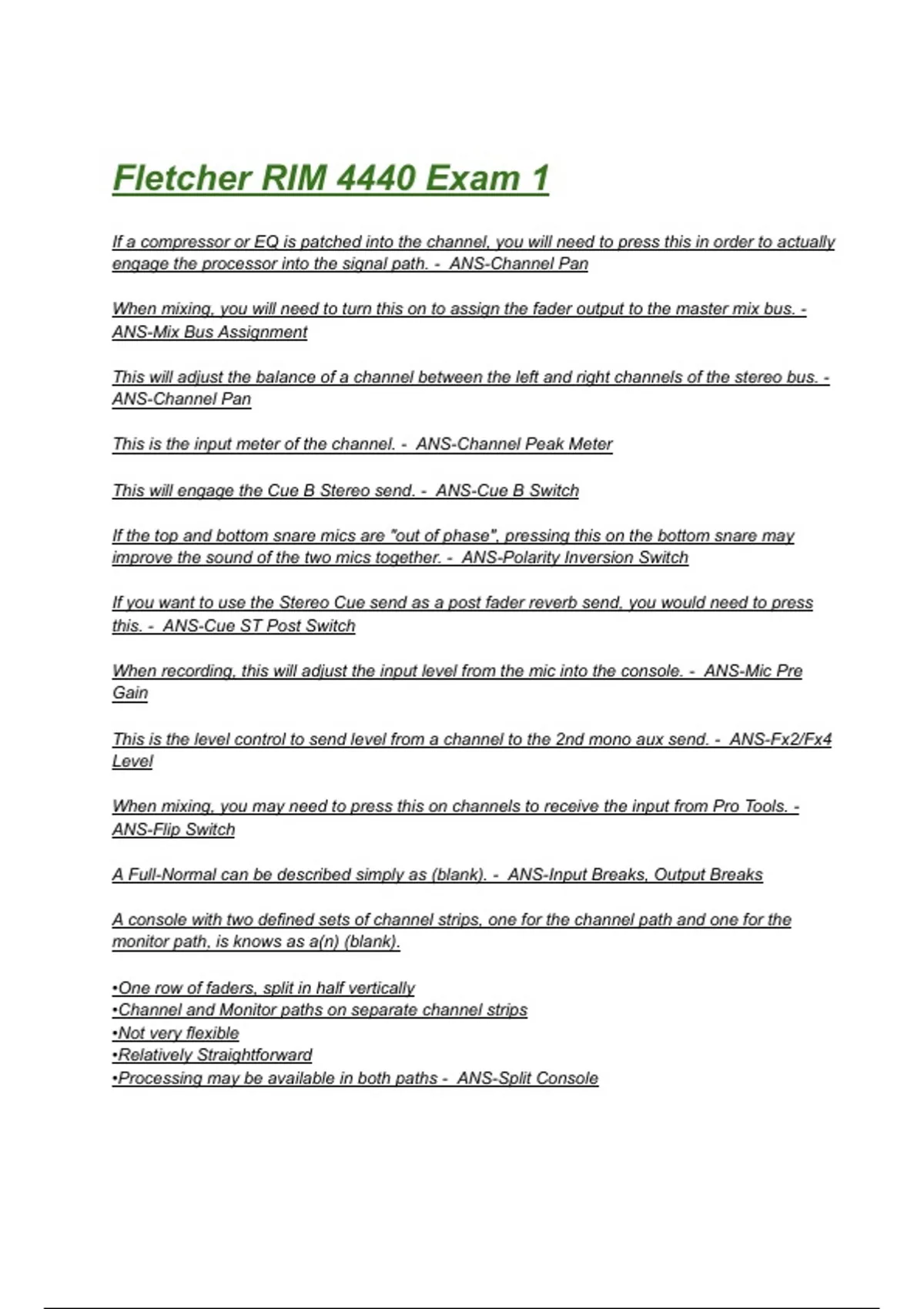

Fletcher RIM 4440 Exam 1
If a compressor or EQ is patched into the channel, you will need to press this in order to actually
engage the processor into the signal path. - ANS-Channel Pan
When mixing, you will need to turn this on to assign the fader output to the master mix bus. -
ANS-Mix Bus Assignment
This will adjust the balance of a channel between the left and right channels of the stereo bus. -
ANS-Channel Pan
This is the input meter of the channel. - ANS-Channel Peak Meter
This will engage the Cue B Stereo send. - ANS-Cue B Switch
If the top and bottom snare mics are "out of phase", pressing this on the bottom snare may
improve the sound of the two mics together. - ANS-Polarity Inversion Switch
If you want to use the Stereo Cue send as a post fader reverb send, you would need to press
this. - ANS-Cue ST Post Switch
When recording, this will adjust the input level from the mic into the console. - ANS-Mic Pre
Gain
This is the level control to send level from a channel to the 2nd mono aux send. - ANS-Fx2/Fx4
Level
When mixing, you may need to press this on channels to receive the input from Pro Tools. -
ANS-Flip Switch
A Full-Normal can be described simply as (blank). - ANS-Input Breaks, Output Breaks
A console with two defined sets of channel strips, one for the channel path and one for the
monitor path, is knows as a(n) (blank).
•One row of faders, split in half vertically
•Channel and Monitor paths on separate channel strips
•Not very flexible
•Relatively Straightforward
•Processing may be available in both paths - ANS-Split Console
, A console with two rows of faders, with the channel path and monitor path faders on the same
channel strip, is known as a(n) (blank).
•Two Rows of faders/Two faders per channel strip
•Channel Path and Monitor Path on same channel strip
•Usually "Swappable"
•Very Flexible
•A little more confusing
•Processing may not be available in both paths - ANS-Inline Console
An internal connection on a patch bay that eliminates the need for a patch cable is known as a
(blank). - ANS-Normal
On the AWS consoles, the stereo cue sends have which of the following characteristics? -
ANS-Pre-fader, switchable to post
On the AWS consoles, the FX sends have which of the following characteristics? -
ANS-typically Post-Fader
Put the following signal flow elements in the correct order (1-14) for mixing. This means the
order of FLOW - ANS-(1) MTR Outputs
(2) Line Amp
(3) EQ
(4) Dynamics
(5) Insert Point
(6) Monitor Fader
(7) Mix Bus Assignment
(8) Master Fader
(9) Rosetta Analog In, A/D Conversion (AES OUT)
(10) 2TR Inputs (PT AES IN)/Pro Tools Stereo Track PGM Input
(11) Pro Tools Stereo Track PGM Output/2TR Inputs (PT AES OUT)
(12) (AES IN) Rosetta D/A Conversion, Analog Out
(13) Mon SRC -- Ext B
(14) CR Level (Monitor Level)
Compressor/Gate 2:____ - ANS-Dynamics 2
The output of the third Effects Device is normalled here:____ - ANS-ST Returns 3
The output of the second Effects Device is normalled here:____ - ANS-ST Returns 2
We select this in order to monitor the output of our stereo print when printing a mix to Pro Tools.
- ANS-Mon SRC --- EXT B
If a compressor or EQ is patched into the channel, you will need to press this in order to actually
engage the processor into the signal path. - ANS-Channel Pan
When mixing, you will need to turn this on to assign the fader output to the master mix bus. -
ANS-Mix Bus Assignment
This will adjust the balance of a channel between the left and right channels of the stereo bus. -
ANS-Channel Pan
This is the input meter of the channel. - ANS-Channel Peak Meter
This will engage the Cue B Stereo send. - ANS-Cue B Switch
If the top and bottom snare mics are "out of phase", pressing this on the bottom snare may
improve the sound of the two mics together. - ANS-Polarity Inversion Switch
If you want to use the Stereo Cue send as a post fader reverb send, you would need to press
this. - ANS-Cue ST Post Switch
When recording, this will adjust the input level from the mic into the console. - ANS-Mic Pre
Gain
This is the level control to send level from a channel to the 2nd mono aux send. - ANS-Fx2/Fx4
Level
When mixing, you may need to press this on channels to receive the input from Pro Tools. -
ANS-Flip Switch
A Full-Normal can be described simply as (blank). - ANS-Input Breaks, Output Breaks
A console with two defined sets of channel strips, one for the channel path and one for the
monitor path, is knows as a(n) (blank).
•One row of faders, split in half vertically
•Channel and Monitor paths on separate channel strips
•Not very flexible
•Relatively Straightforward
•Processing may be available in both paths - ANS-Split Console
, A console with two rows of faders, with the channel path and monitor path faders on the same
channel strip, is known as a(n) (blank).
•Two Rows of faders/Two faders per channel strip
•Channel Path and Monitor Path on same channel strip
•Usually "Swappable"
•Very Flexible
•A little more confusing
•Processing may not be available in both paths - ANS-Inline Console
An internal connection on a patch bay that eliminates the need for a patch cable is known as a
(blank). - ANS-Normal
On the AWS consoles, the stereo cue sends have which of the following characteristics? -
ANS-Pre-fader, switchable to post
On the AWS consoles, the FX sends have which of the following characteristics? -
ANS-typically Post-Fader
Put the following signal flow elements in the correct order (1-14) for mixing. This means the
order of FLOW - ANS-(1) MTR Outputs
(2) Line Amp
(3) EQ
(4) Dynamics
(5) Insert Point
(6) Monitor Fader
(7) Mix Bus Assignment
(8) Master Fader
(9) Rosetta Analog In, A/D Conversion (AES OUT)
(10) 2TR Inputs (PT AES IN)/Pro Tools Stereo Track PGM Input
(11) Pro Tools Stereo Track PGM Output/2TR Inputs (PT AES OUT)
(12) (AES IN) Rosetta D/A Conversion, Analog Out
(13) Mon SRC -- Ext B
(14) CR Level (Monitor Level)
Compressor/Gate 2:____ - ANS-Dynamics 2
The output of the third Effects Device is normalled here:____ - ANS-ST Returns 3
The output of the second Effects Device is normalled here:____ - ANS-ST Returns 2
We select this in order to monitor the output of our stereo print when printing a mix to Pro Tools.
- ANS-Mon SRC --- EXT B
