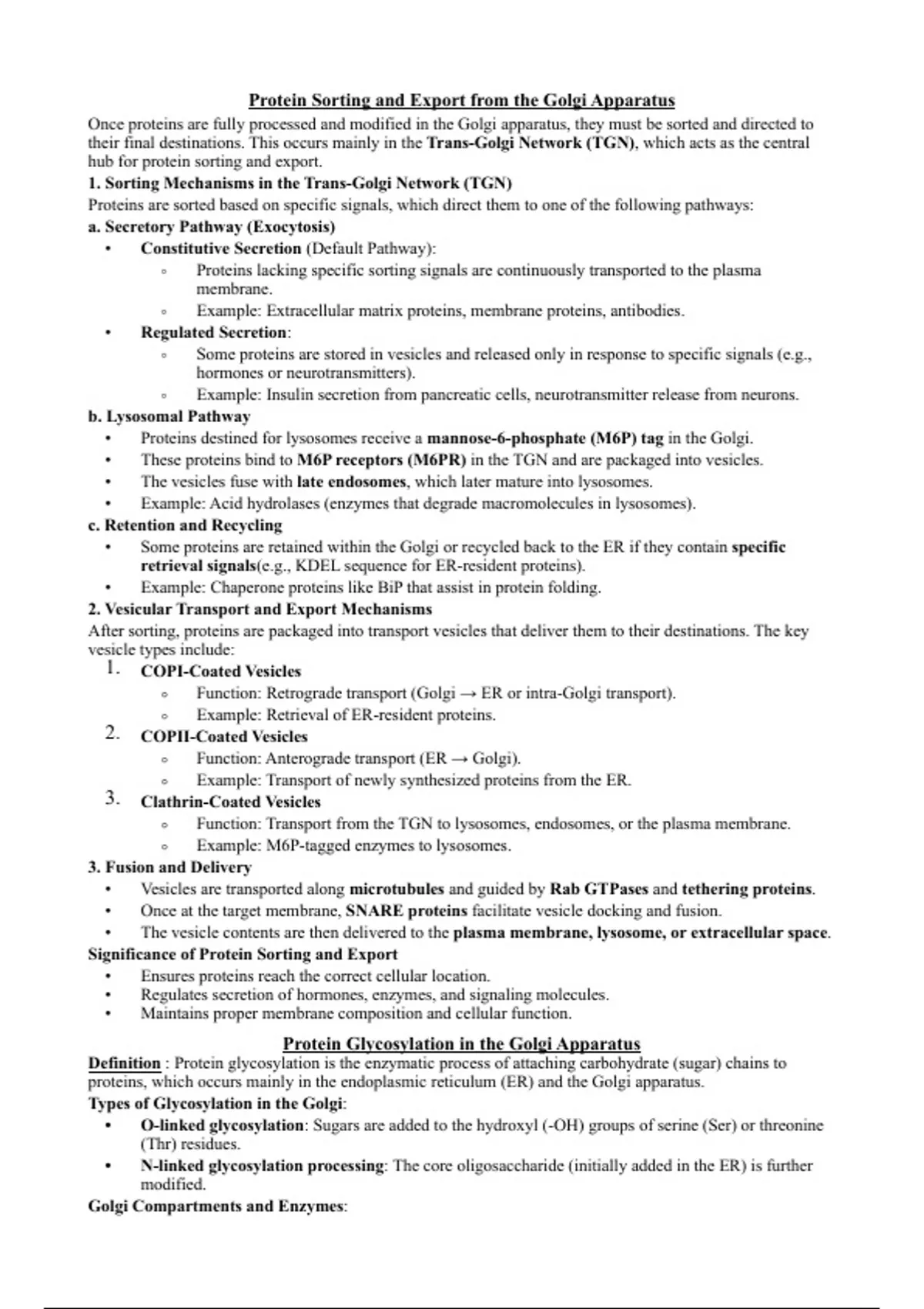

Protein Sorting and Export from the Golgi Apparatus
Once proteins are fully processed and modified in the Golgi apparatus, they must be sorted and directed to
their final destinations. This occurs mainly in the Trans-Golgi Network (TGN), which acts as the central
hub for protein sorting and export.
1. Sorting Mechanisms in the Trans-Golgi Network (TGN)
Proteins are sorted based on specific signals, which direct them to one of the following pathways:
a. Secretory Pathway (Exocytosis)
• Constitutive Secretion (Default Pathway):
◦ Proteins lacking specific sorting signals are continuously transported to the plasma
membrane.
◦ Example: Extracellular matrix proteins, membrane proteins, antibodies.
• Regulated Secretion:
◦ Some proteins are stored in vesicles and released only in response to specific signals (e.g.,
hormones or neurotransmitters).
◦ Example: Insulin secretion from pancreatic cells, neurotransmitter release from neurons.
b. Lysosomal Pathway
• Proteins destined for lysosomes receive a mannose-6-phosphate (M6P) tag in the Golgi.
• These proteins bind to M6P receptors (M6PR) in the TGN and are packaged into vesicles.
• The vesicles fuse with late endosomes, which later mature into lysosomes.
• Example: Acid hydrolases (enzymes that degrade macromolecules in lysosomes).
c. Retention and Recycling
• Some proteins are retained within the Golgi or recycled back to the ER if they contain specific
retrieval signals(e.g., KDEL sequence for ER-resident proteins).
• Example: Chaperone proteins like BiP that assist in protein folding.
2. Vesicular Transport and Export Mechanisms
After sorting, proteins are packaged into transport vesicles that deliver them to their destinations. The key
vesicle types include:
1. COPI-Coated Vesicles
◦ Function: Retrograde transport (Golgi → ER or intra-Golgi transport).
◦ Example: Retrieval of ER-resident proteins.
2. COPII-Coated Vesicles
◦ Function: Anterograde transport (ER → Golgi).
◦ Example: Transport of newly synthesized proteins from the ER.
3. Clathrin-Coated Vesicles
◦ Function: Transport from the TGN to lysosomes, endosomes, or the plasma membrane.
◦ Example: M6P-tagged enzymes to lysosomes.
3. Fusion and Delivery
• Vesicles are transported along microtubules and guided by Rab GTPases and tethering proteins.
• Once at the target membrane, SNARE proteins facilitate vesicle docking and fusion.
• The vesicle contents are then delivered to the plasma membrane, lysosome, or extracellular space.
Significance of Protein Sorting and Export
• Ensures proteins reach the correct cellular location.
• Regulates secretion of hormones, enzymes, and signaling molecules.
• Maintains proper membrane composition and cellular function.
Protein Glycosylation in the Golgi Apparatus
Definition : Protein glycosylation is the enzymatic process of attaching carbohydrate (sugar) chains to
proteins, which occurs mainly in the endoplasmic reticulum (ER) and the Golgi apparatus.
Types of Glycosylation in the Golgi:
• O-linked glycosylation: Sugars are added to the hydroxyl (-OH) groups of serine (Ser) or threonine
(Thr) residues.
• N-linked glycosylation processing: The core oligosaccharide (initially added in the ER) is further
modified.
Golgi Compartments and Enzymes:
, • Cis-Golgi Network (CGN): Phosphorylation of lysosomal proteins and trimming of N-linked
oligosaccharides.
• Medial-Golgi: Addition of N-acetylglucosamine (GlcNAc), mannose trimming, and addition of
galactose.
• Trans-Golgi Network (TGN): Sulfation of tyrosine residues, final modifications, and sorting of
glycoproteins for secretion or transport.
Enzymatic Modifications:
• Glycosyltransferases add sugars like GlcNAc, galactose, fucose, and sialic acid.
• Glycosidases trim specific sugars for precise glycan structures.
Function of Glycosylation:
• Enhances protein stability and folding.
• Influences cell-cell recognition and signaling.
• Directs proteins to their correct cellular destinations.
Biological Significance:
◦ Essential for immune response (glycoproteins in antibodies).
◦ Plays a role in diseases like congenital disorders of glycosylation (CDG).
Procedure: Arrival at the Golgi
• Glycoproteins, initially modified in the endoplasmic reticulum (ER), are transported to the Golgi
apparatus in vesicles.
Entry into the Cis-Golgi
• In the cis-Golgi network, the glycoprotein encounters its first set of Golgi-resident enzymes.
• Mannosidases trim some of the mannose residues from the N-linked oligosaccharides that were
added in the ER.
• This trimming sets the stage for the creation of more complex glycan structures.
Modifications in the Medial-Golgi
• The glycoprotein moves into the medial-Golgi, where additional enzymes modify the glycan
structures.
• Glycosyltransferases add sugars such as N-acetylglucosamine (GlcNAc) and galactose.
• For O-linked glycosylation (which starts in the Golgi), an initial sugar (typically N-
acetylgalactosamine, GalNAc) is attached to the hydroxyl group of serine or threonine residues.
• Further sugars may be sequentially added to build up the carbohydrate chain.
Final Modifications in the Trans-Golgi Network (TGN)
• In the trans-Golgi, additional modifications refine the glycan structure.
• Sialylation: Sialic acid residues may be added, which often cap the ends of glycan chains.
• Fucosylation and Sulfation: In some proteins, fucose groups are added or sulfate groups are
attached, which can be important for the protein’s final function and recognition.
• These modifications contribute to the protein’s stability, activity, and sorting signals.
Sorting and Vesicular Transport
• Once fully processed, the glycoproteins are sorted in the TGN.
• Specific sorting signals, often encoded by the glycan structures, direct the glycoproteins into vesicles
destined for the plasma membrane, lysosomes, or secretion outside the cell.
Semi-Autonomous Nature of Mitochondria
1. Dual Membrane Structure
◦ Mitochondria have an outer membrane (protective barrier) and an inner membrane (folds into
cristae to enhance ATP production).
2. Presence of Mitochondrial DNA (mtDNA)
◦ Mitochondria contain their own circular DNA, similar to bacterial genomes.
◦ This allows them to encode some of their own proteins needed for oxidative phosphorylation.
3. Independent Protein Synthesis
◦ They have their own ribosomes (similar to bacterial ribosomes) for synthesizing certain
proteins.
Once proteins are fully processed and modified in the Golgi apparatus, they must be sorted and directed to
their final destinations. This occurs mainly in the Trans-Golgi Network (TGN), which acts as the central
hub for protein sorting and export.
1. Sorting Mechanisms in the Trans-Golgi Network (TGN)
Proteins are sorted based on specific signals, which direct them to one of the following pathways:
a. Secretory Pathway (Exocytosis)
• Constitutive Secretion (Default Pathway):
◦ Proteins lacking specific sorting signals are continuously transported to the plasma
membrane.
◦ Example: Extracellular matrix proteins, membrane proteins, antibodies.
• Regulated Secretion:
◦ Some proteins are stored in vesicles and released only in response to specific signals (e.g.,
hormones or neurotransmitters).
◦ Example: Insulin secretion from pancreatic cells, neurotransmitter release from neurons.
b. Lysosomal Pathway
• Proteins destined for lysosomes receive a mannose-6-phosphate (M6P) tag in the Golgi.
• These proteins bind to M6P receptors (M6PR) in the TGN and are packaged into vesicles.
• The vesicles fuse with late endosomes, which later mature into lysosomes.
• Example: Acid hydrolases (enzymes that degrade macromolecules in lysosomes).
c. Retention and Recycling
• Some proteins are retained within the Golgi or recycled back to the ER if they contain specific
retrieval signals(e.g., KDEL sequence for ER-resident proteins).
• Example: Chaperone proteins like BiP that assist in protein folding.
2. Vesicular Transport and Export Mechanisms
After sorting, proteins are packaged into transport vesicles that deliver them to their destinations. The key
vesicle types include:
1. COPI-Coated Vesicles
◦ Function: Retrograde transport (Golgi → ER or intra-Golgi transport).
◦ Example: Retrieval of ER-resident proteins.
2. COPII-Coated Vesicles
◦ Function: Anterograde transport (ER → Golgi).
◦ Example: Transport of newly synthesized proteins from the ER.
3. Clathrin-Coated Vesicles
◦ Function: Transport from the TGN to lysosomes, endosomes, or the plasma membrane.
◦ Example: M6P-tagged enzymes to lysosomes.
3. Fusion and Delivery
• Vesicles are transported along microtubules and guided by Rab GTPases and tethering proteins.
• Once at the target membrane, SNARE proteins facilitate vesicle docking and fusion.
• The vesicle contents are then delivered to the plasma membrane, lysosome, or extracellular space.
Significance of Protein Sorting and Export
• Ensures proteins reach the correct cellular location.
• Regulates secretion of hormones, enzymes, and signaling molecules.
• Maintains proper membrane composition and cellular function.
Protein Glycosylation in the Golgi Apparatus
Definition : Protein glycosylation is the enzymatic process of attaching carbohydrate (sugar) chains to
proteins, which occurs mainly in the endoplasmic reticulum (ER) and the Golgi apparatus.
Types of Glycosylation in the Golgi:
• O-linked glycosylation: Sugars are added to the hydroxyl (-OH) groups of serine (Ser) or threonine
(Thr) residues.
• N-linked glycosylation processing: The core oligosaccharide (initially added in the ER) is further
modified.
Golgi Compartments and Enzymes:
, • Cis-Golgi Network (CGN): Phosphorylation of lysosomal proteins and trimming of N-linked
oligosaccharides.
• Medial-Golgi: Addition of N-acetylglucosamine (GlcNAc), mannose trimming, and addition of
galactose.
• Trans-Golgi Network (TGN): Sulfation of tyrosine residues, final modifications, and sorting of
glycoproteins for secretion or transport.
Enzymatic Modifications:
• Glycosyltransferases add sugars like GlcNAc, galactose, fucose, and sialic acid.
• Glycosidases trim specific sugars for precise glycan structures.
Function of Glycosylation:
• Enhances protein stability and folding.
• Influences cell-cell recognition and signaling.
• Directs proteins to their correct cellular destinations.
Biological Significance:
◦ Essential for immune response (glycoproteins in antibodies).
◦ Plays a role in diseases like congenital disorders of glycosylation (CDG).
Procedure: Arrival at the Golgi
• Glycoproteins, initially modified in the endoplasmic reticulum (ER), are transported to the Golgi
apparatus in vesicles.
Entry into the Cis-Golgi
• In the cis-Golgi network, the glycoprotein encounters its first set of Golgi-resident enzymes.
• Mannosidases trim some of the mannose residues from the N-linked oligosaccharides that were
added in the ER.
• This trimming sets the stage for the creation of more complex glycan structures.
Modifications in the Medial-Golgi
• The glycoprotein moves into the medial-Golgi, where additional enzymes modify the glycan
structures.
• Glycosyltransferases add sugars such as N-acetylglucosamine (GlcNAc) and galactose.
• For O-linked glycosylation (which starts in the Golgi), an initial sugar (typically N-
acetylgalactosamine, GalNAc) is attached to the hydroxyl group of serine or threonine residues.
• Further sugars may be sequentially added to build up the carbohydrate chain.
Final Modifications in the Trans-Golgi Network (TGN)
• In the trans-Golgi, additional modifications refine the glycan structure.
• Sialylation: Sialic acid residues may be added, which often cap the ends of glycan chains.
• Fucosylation and Sulfation: In some proteins, fucose groups are added or sulfate groups are
attached, which can be important for the protein’s final function and recognition.
• These modifications contribute to the protein’s stability, activity, and sorting signals.
Sorting and Vesicular Transport
• Once fully processed, the glycoproteins are sorted in the TGN.
• Specific sorting signals, often encoded by the glycan structures, direct the glycoproteins into vesicles
destined for the plasma membrane, lysosomes, or secretion outside the cell.
Semi-Autonomous Nature of Mitochondria
1. Dual Membrane Structure
◦ Mitochondria have an outer membrane (protective barrier) and an inner membrane (folds into
cristae to enhance ATP production).
2. Presence of Mitochondrial DNA (mtDNA)
◦ Mitochondria contain their own circular DNA, similar to bacterial genomes.
◦ This allows them to encode some of their own proteins needed for oxidative phosphorylation.
3. Independent Protein Synthesis
◦ They have their own ribosomes (similar to bacterial ribosomes) for synthesizing certain
proteins.
