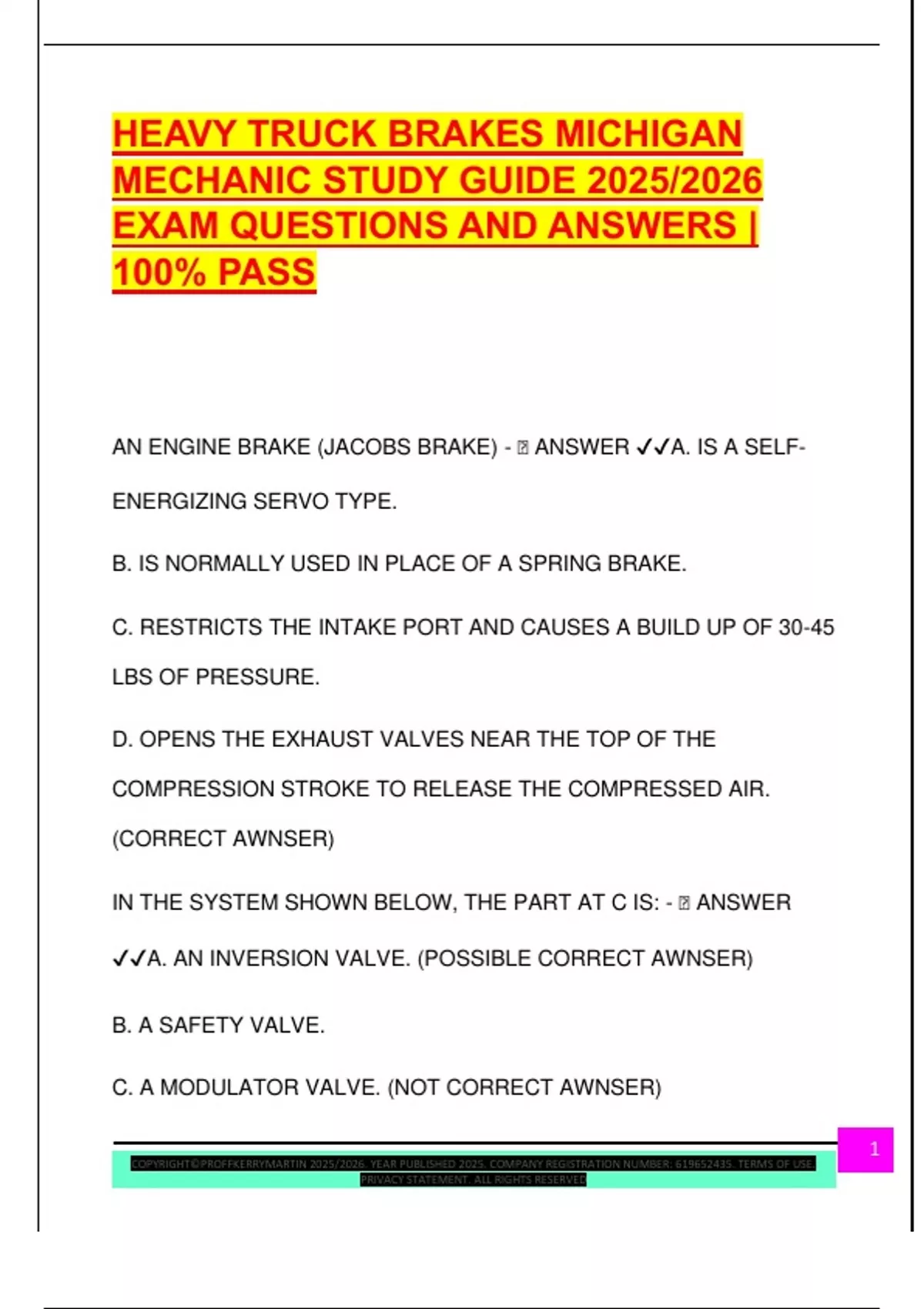

HEAVY TRUCK BRAKES MICHIGAN
MECHANIC STUDY GUIDE 2025/2026
EXAM QUESTIONS AND ANSWERS |
100% PASS
AN ENGINE BRAKE (JACOBS BRAKE) - 🧠 ANSWER ✔✔A. IS A SELF-
ENERGIZING SERVO TYPE.
B. IS NORMALLY USED IN PLACE OF A SPRING BRAKE.
C. RESTRICTS THE INTAKE PORT AND CAUSES A BUILD UP OF 30-45
LBS OF PRESSURE.
D. OPENS THE EXHAUST VALVES NEAR THE TOP OF THE
COMPRESSION STROKE TO RELEASE THE COMPRESSED AIR.
(CORRECT AWNSER)
IN THE SYSTEM SHOWN BELOW, THE PART AT C IS: - 🧠 ANSWER
✔✔A. AN INVERSION VALVE. (POSSIBLE CORRECT AWNSER)
B. A SAFETY VALVE.
C. A MODULATOR VALVE. (NOT CORRECT AWNSER)
1
COPYRIGHT©PROFFKERRYMARTIN 2025/2026. YEAR PUBLISHED 2025. COMPANY REGISTRATION NUMBER: 619652435. TERMS OF USE.
PRIVACY STATEMENT. ALL RIGHTS RESERVED
,D. A RELAY VALVE.
A MECHANIC HAS REMOVED A BRAKE DRUM AND FOUND THE
BRAKE LININGS SOAKED WITH GREASE. THE BRAKE LININGS
SHOULD BE: - 🧠 ANSWER ✔✔A. REPLACED. (CORRECT AWNSER)
B. SANDED TO ROUGHEN UP THE FRICTION SURFACE.
C. DIPPED IN LACQUER THINNER.
D. WASHED WITH DENATURED ALCOHOL.
IN THE DRAWING BELOW, THE PARKING BRAKES ARE APPLIED BY: -
🧠 ANSWER ✔✔A. AIR PRESSURE AT POINT F.
B. VACUUM IN AREA B.
C. SPRING AT POINT C.
D. PRESSURE IN AREA A. (NOT CORRECT AWNSER)
WHAT IS THE PURPOSE OF A VACUUM BOOSTER? - 🧠 ANSWER
✔✔A. TO DECREASE BRAKE PEDAL EFFORT. (POSSIBLE CORRECT
AWNSER)
B. TO PREVENT FADE UNDER HEAVY BRAKING.
2
COPYRIGHT©PROFFKERRYMARTIN 2025/2026. YEAR PUBLISHED 2025. COMPANY REGISTRATION NUMBER: 619652435. TERMS OF USE.
PRIVACY STATEMENT. ALL RIGHTS RESERVED
, C. TO PROVIDE ASSISTANCE WHEN THE ENGINE VACUUM IS LOW.
(NOT CORRECT AWNSER)
D. TO MAINTAIN UNIFORM PEDAL TRAVEL AS THE LININGS WEAR.
THE TRAILER BRAKES DO NOT WORK. THE TRACTOR SYSTEM IS AT
NORMAL PRESSURE. THERE ARE NO LEAKS AND THE SERVICE AND
EMERGENCY LINES ARE HOOKED UP RIGHT. WHAT COULD CAUSE
THIS PROBLEM? - 🧠 ANSWER ✔✔A. ICE IN THE LINES AT THE
TRAILER.
B. A BAD RELAY VALVE.
C. A BAD SAFETY RELIEF VALVE.
D. BOTH A AND B. (CORRECT AWNSER)
THE RESIDUAL VALVE IN THE MASTER CYLINDER: - 🧠 ANSWER ✔✔A.
LIMITS PRESSURE BUILD UP IN THE SYSTEM.
B. STOPS THE FLOW TO DAMAGED BRAKE LINES.
C. KEEPS SOME PRESSURE IN THE SYTEM WHEN THE BRAKES ARE
RELEASED. (CORRECT AWNSER)
D. IS OPERATED BY ENGINE VACUUM.
3
COPYRIGHT©PROFFKERRYMARTIN 2025/2026. YEAR PUBLISHED 2025. COMPANY REGISTRATION NUMBER: 619652435. TERMS OF USE.
PRIVACY STATEMENT. ALL RIGHTS RESERVED
