UNIT IV TREES AND GRAPHS 12
Trees and Graphs: Binary Trees –Operation, tree traversals – Graph Implementation –
Definition, Types of graph, Traversal– Shortest Path Problems, Dijikstra’s algorithm.

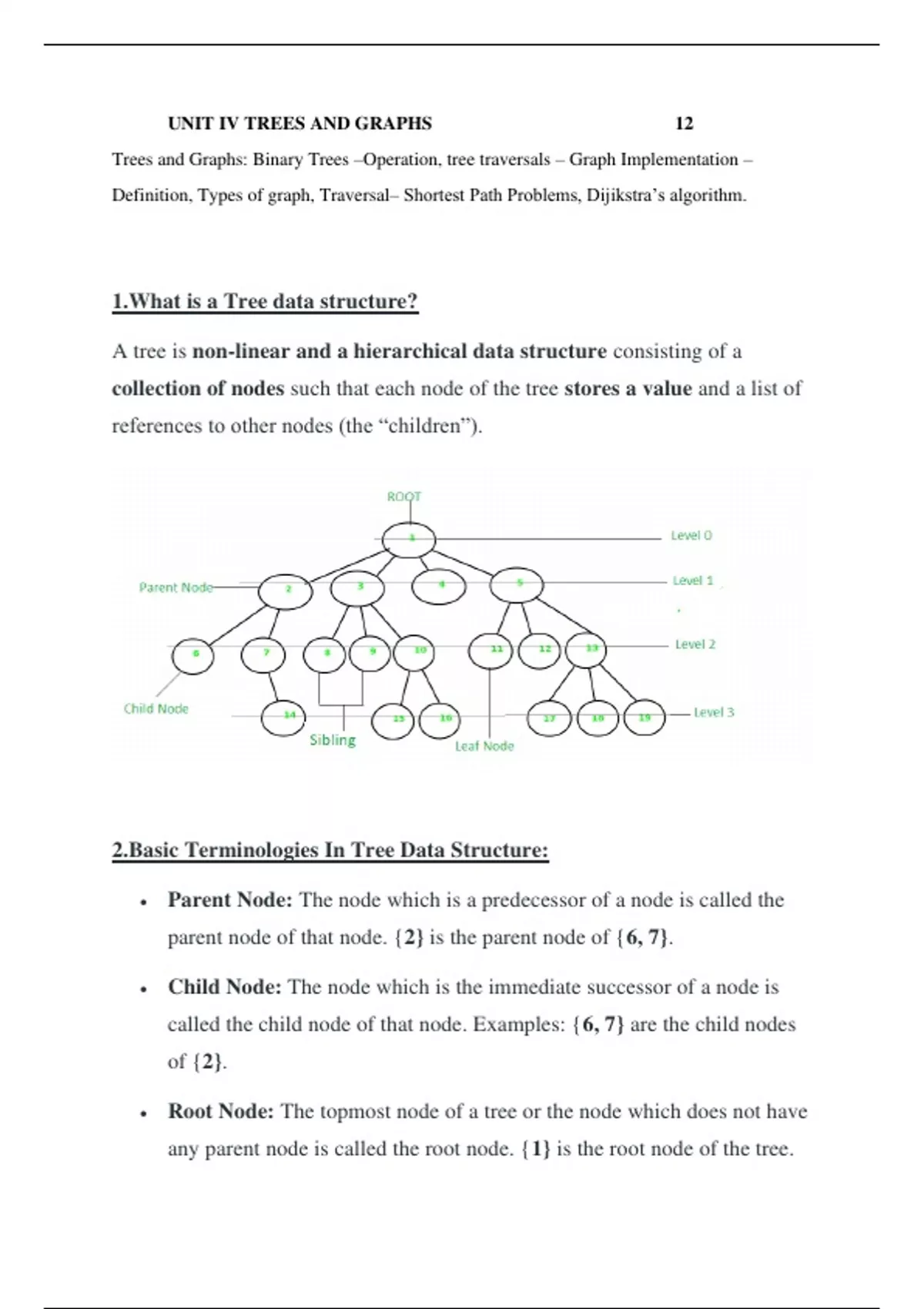

1.What is a Tree data structure?
A tree is non-linear and a hierarchical data structure consisting of a
collection of nodes such that each node of the tree stores a value and a list of
references to other nodes (the “children”).
2.Basic Terminologies In Tree Data Structure:
• Parent Node: The node which is a predecessor of a node is called the
parent node of that node. {2} is the parent node of {6, 7}.
• Child Node: The node which is the immediate successor of a node is
called the child node of that node. Examples: {6, 7} are the child nodes
of {2}.
• Root Node: The topmost node of a tree or the node which does not have
any parent node is called the root node. {1} is the root node of the tree.
, A non-empty tree must contain exactly one root node and exactly one
path from the root to all other nodes of the tree.
• Leaf Node or External Node: The nodes which do not have any child
nodes are called leaf nodes. {6, 14, 8, 9, 15, 16, 4, 11, 12, 17, 18,
19} are the leaf nodes of the tree.
• Ancestor of a Node: Any predecessor nodes on the path of the root to
that node are called Ancestors of that node. {1, 2} are the ancestor nodes
of the node {7}
• Descendant: Any successor node on the path from the leaf node to that
node. {7, 14} are the descendants of the node. {2}.
• Sibling: Children of the same parent node are called siblings. {8, 9,
10} are called siblings.
• Level of a node: The count of edges on the path from the root node to
that node. The root node has level 0.
• Internal node: A node with at least one child is called Internal Node.
• Neighbour of a Node: Parent or child nodes of that node are called
neighbors of that node.
• Subtree: Any node of the tree along with its descendant.
3.Properties of a Tree:
• Number of edges: An edge can be defined as the connection between
two nodes. If a tree has N nodes then it will have (N-1) edges. There is
only one path from each node to any other node of the tree.
• Depth of a node: The depth of a node is defined as the length of the
path from the root to that node. Each edge adds 1 unit of length to the
, path. So, it can also be defined as the number of edges in the path from
the root of the tree to the node.
• Height of a node: The height of a node can be defined as the length of
the longest path from the node to a leaf node of the tree.
• Height of the Tree: The height of a tree is the length of the longest path
from the root of the tree to a leaf node of the tree.
• Degree of a Node: The total count of subtrees attached to that node is
called the degree of the node. The degree of a leaf node must be 0. The
degree of a tree is the maximum degree of a node among all the nodes in
the tree.
Some more properties are:
• Traversing in a tree is done by depth first search and breadth first search
algorithm.
• It has no loop and no circuit
• It has no self-loop
• Its hierarchical model.
4.Types of Tree in Data Structures
1. General Tree
2. Binary Tree
3. Binary search Tree
4. AVL Tree
1.General Tree
The general tree is the type of tree where there are no constraints on the
hierarchical structure.
Properties
• The general tree follows all properties of the tree data structure.
