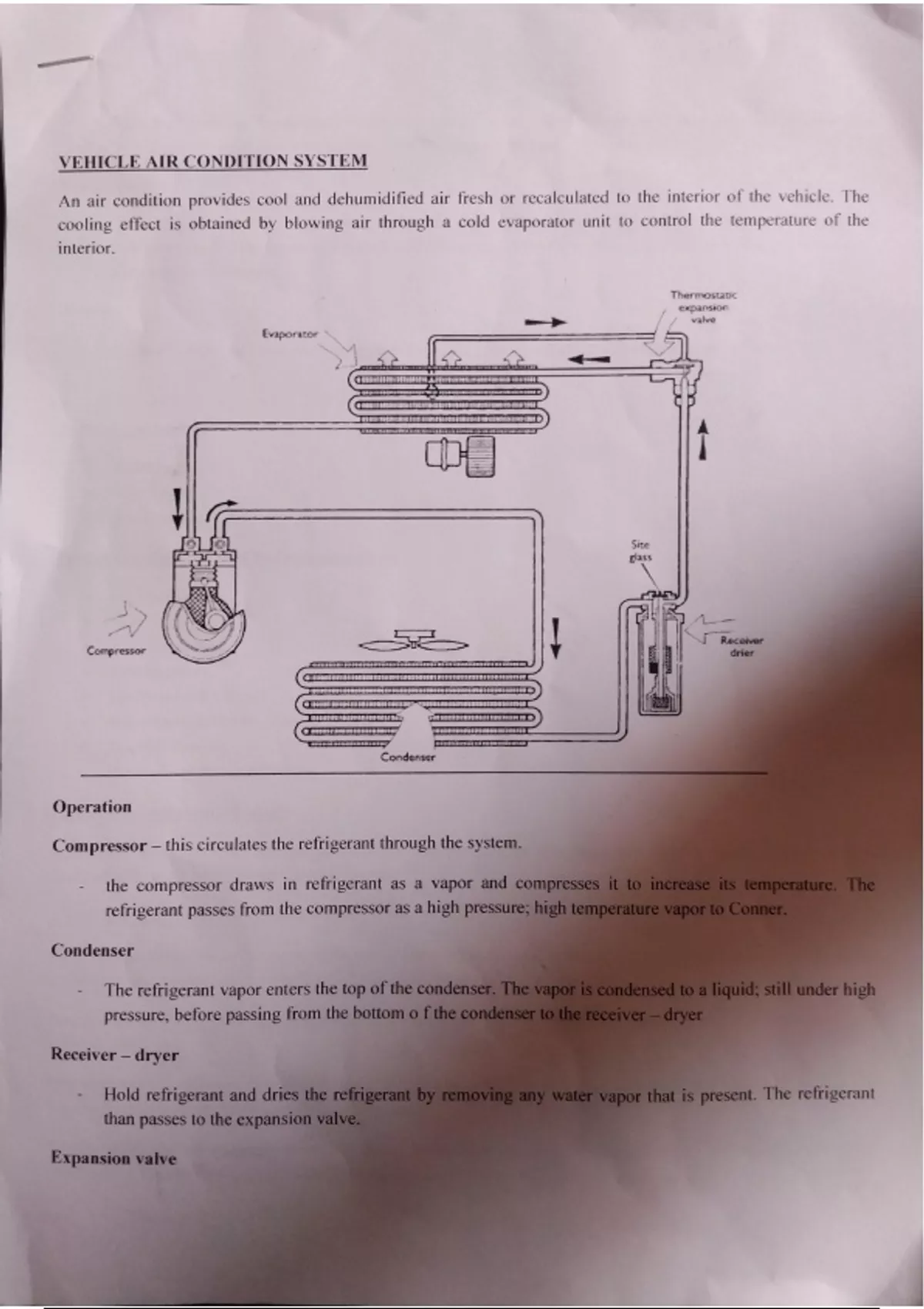

Vehicle Air condition system

In automotive engineering, the vehicle conditioning system refers to the various components and systems used to control the interior climate and environmental comfort of a vehicle. The most common and widely used vehicle conditioning system is the Heating, Ventilation, and Air Conditioning (HVAC) system. Description of the Vehicle Conditioning System (HVAC System): 1. Purpose: To regulate the temperature, humidity, air quality, and airflow inside the vehicle cabin. To provide comfort to passengers and assist in defogging or defrosting windows for clear visibility. 2. Main Components: Compressor: Pressurizes the refrigerant and circulates it through the system. Condenser: Located at the front of the vehicle, it cools and condenses the refrigerant gas into a liquid. Receiver/Dryer or Accumulator: Removes moisture and filters debris from the refrigerant. Expansion Valve or Orifice Tube: Controls the flow of refrigerant into the evaporator. Evaporator: Absorbs heat from the cabin air, causing the refrigerant to evaporate and cool the air. Blower Motor: Pushes air through the HVAC system and into the vehicle interior. Heater Core: Transfers heat from the engine coolant to the air for heating the cabin. Control System (ECU or manual): Allows the driver to set desired temperature, fan speed, and airflow direction. 3. Working Principle: The HVAC system uses the refrigeration cycle to cool the air and the engine’s cooling system to heat it. Ventilation draws in fresh or recirculated air and distributes it through ducts and vents. The system is often electronically controlled to maintain desired cabin conditions automatically. 4. Types of Systems: Manual HVAC: User-controlled temperature and fan settings. Automatic Climate Control (ACC): Automatically maintains set temperature using sensors and actuators. 5. Additional Features (in modern vehicles): Dual-zone or tri-zone climate control. Air purification and ionization. Rear passenger conditioning systems. Integration with hybrid or electric vehicle battery cooling systems. Would you like a diagram or explanation for a specific vehicle conditioning component?
