Understanding Memory Hierarchy: A Creative Guide to Computer Storage Levels

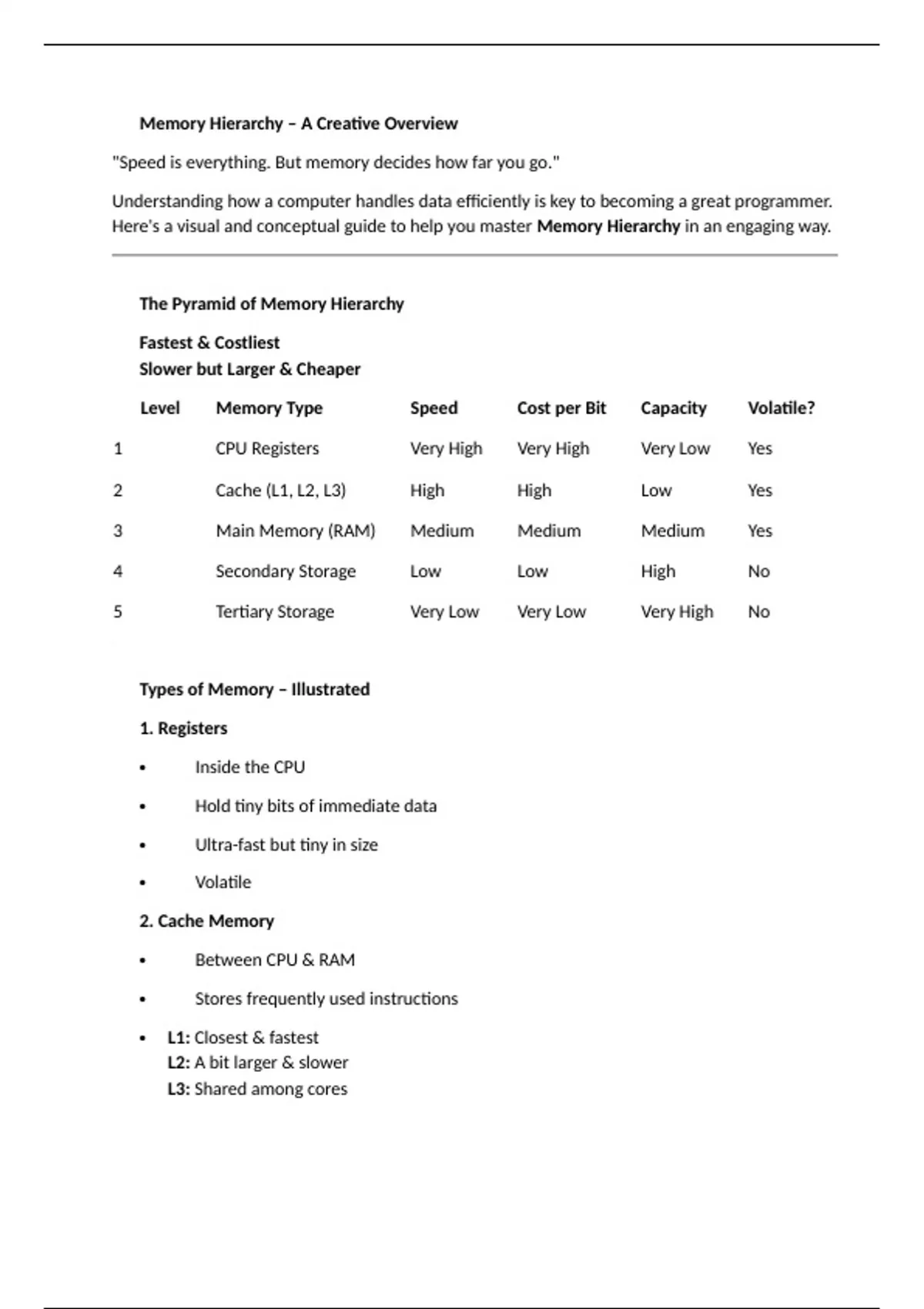

📚 Memory Hierarchy – A Creative Overview

"Speed is everything. But memory decides how far you go."

Understanding how a computer handles data efficiently is key to becoming a great programmer.
Here's a visual and conceptual guide to help you master Memory Hierarchy in an engaging way.



🏗️
The Pyramid of Memory Hierarchy

🔺 Fastest & Costliest
⬇️Slower but Larger & Cheaper

🔢 Level 💾 Memory Type ⚡ Speed 💰 Cost per Bit 📦 Capacity 🔌 Volatile?

1 🔧 CPU Registers 🚀 Very High 💸 Very High 🧊 Very Low ✅ Yes

2 📥 Cache (L1, L2, L3) ⚡ High 💸 High 💾 Low ✅ Yes

3 🧠 Main Memory (RAM) ⏩ Medium 💲 Medium 🎒 Medium ✅ Yes

4 💽 Secondary Storage 🚶 Low 🪙 Low 🗄️
High ❌ No

5 📀 Tertiary Storage 🐢 Very Low 🪙 Very Low 📦 Very High ❌ No



🧠 Types of Memory – Illustrated

🔧 1. Registers

 🧬 Inside the CPU

 🏃 Hold tiny bits of immediate data

 🔥 Ultra-fast but tiny in size

 🔌 Volatile

📥 2. Cache Memory

 🏎️
Between CPU & RAM

 🧠 Stores frequently used instructions

 L1: Closest & fastest
L2: A bit larger & slower
L3: Shared among cores
