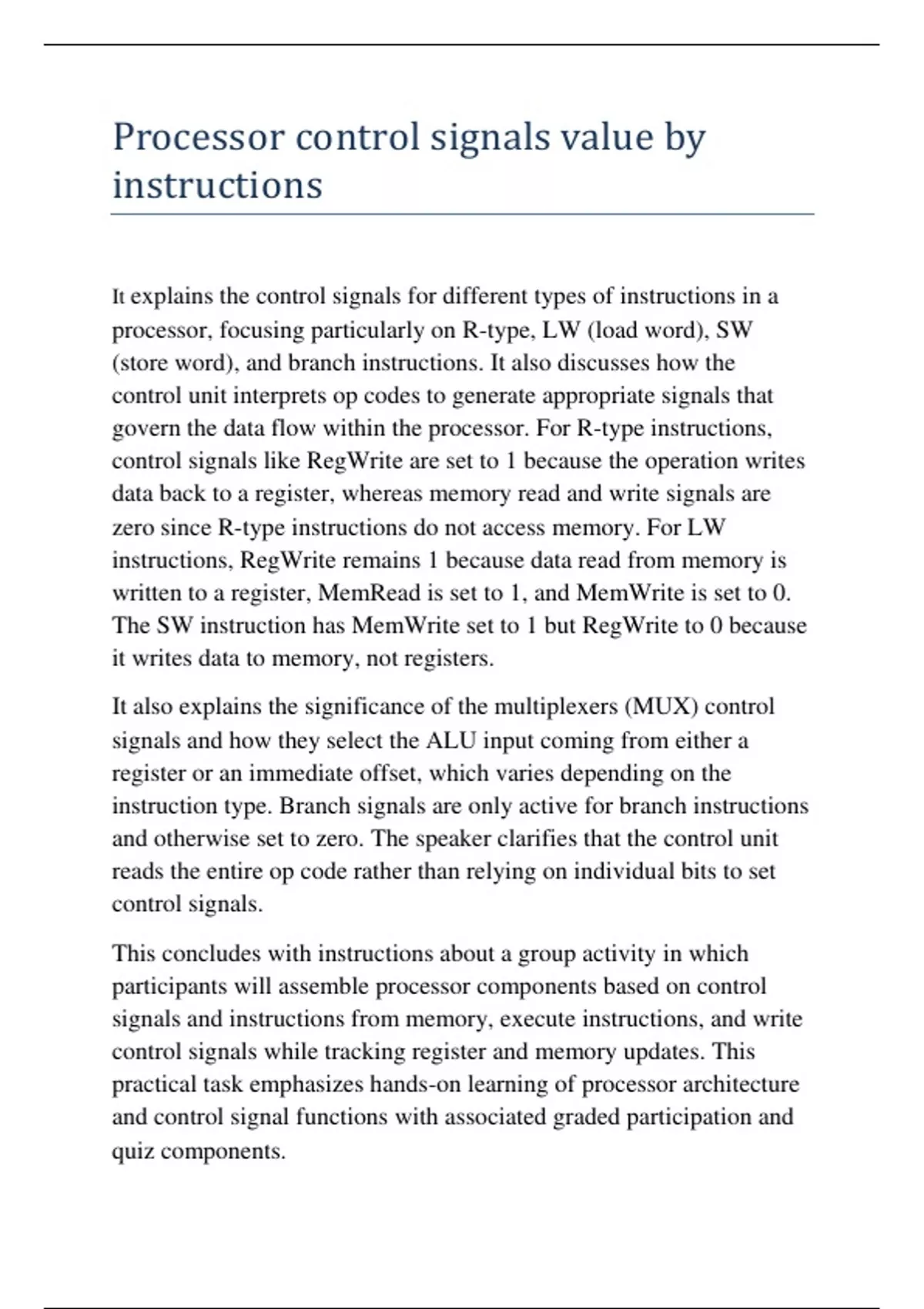

Processor control signals value by
instructions
It explains the control signals for different types of instructions in a
processor, focusing particularly on R-type, LW (load word), SW
(store word), and branch instructions. It also discusses how the
control unit interprets op codes to generate appropriate signals that
govern the data flow within the processor. For R-type instructions,
control signals like RegWrite are set to 1 because the operation writes
data back to a register, whereas memory read and write signals are
zero since R-type instructions do not access memory. For LW
instructions, RegWrite remains 1 because data read from memory is
written to a register, MemRead is set to 1, and MemWrite is set to 0.
The SW instruction has MemWrite set to 1 but RegWrite to 0 because
it writes data to memory, not registers.
It also explains the significance of the multiplexers (MUX) control
signals and how they select the ALU input coming from either a
register or an immediate offset, which varies depending on the
instruction type. Branch signals are only active for branch instructions
and otherwise set to zero. The speaker clarifies that the control unit
reads the entire op code rather than relying on individual bits to set
control signals.
This concludes with instructions about a group activity in which
participants will assemble processor components based on control
signals and instructions from memory, execute instructions, and write
control signals while tracking register and memory updates. This
practical task emphasizes hands-on learning of processor architecture
and control signal functions with associated graded participation and
quiz components.
