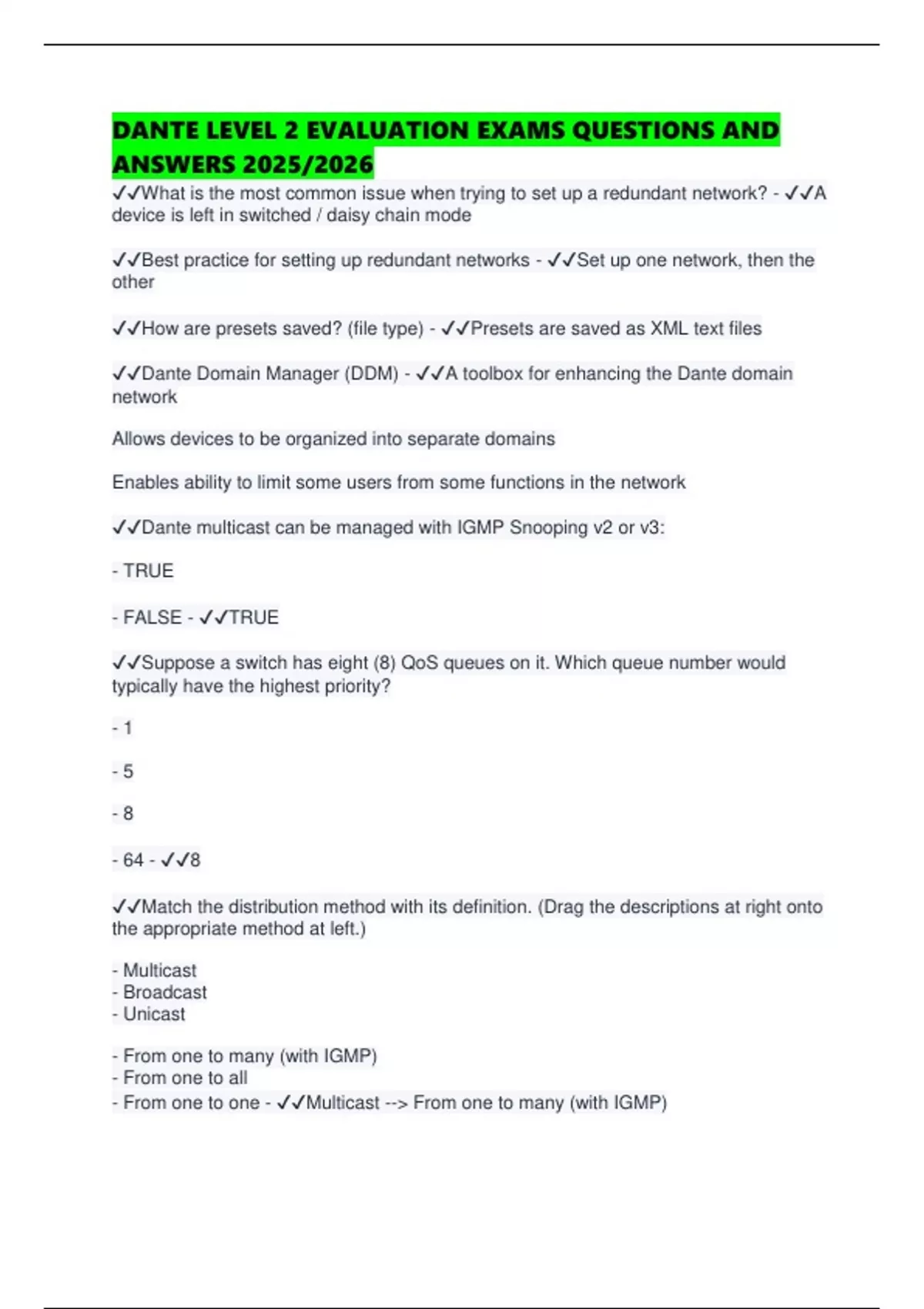

DANTE LEVEL 2 EVALUATION EXAMS QUESTIONS AND
ANSWERS 2025/2026
✔✔What is the most common issue when trying to set up a redundant network? - ✔✔A
device is left in switched / daisy chain mode
✔✔Best practice for setting up redundant networks - ✔✔Set up one network, then the
other
✔✔How are presets saved? (file type) - ✔✔Presets are saved as XML text files
✔✔Dante Domain Manager (DDM) - ✔✔A toolbox for enhancing the Dante domain
network
Allows devices to be organized into separate domains
Enables ability to limit some users from some functions in the network
✔✔Dante multicast can be managed with IGMP Snooping v2 or v3:
- TRUE
- FALSE - ✔✔TRUE
✔✔Suppose a switch has eight (8) QoS queues on it. Which queue number would
typically have the highest priority?
-1
-5
-8
- 64 - ✔✔8
✔✔Match the distribution method with its definition. (Drag the descriptions at right onto
the appropriate method at left.)
- Multicast
- Broadcast
- Unicast
- From one to many (with IGMP)
- From one to all
- From one to one - ✔✔Multicast --> From one to many (with IGMP)
, Broadcast --> From one to all
Unicast --> From one to one
✔✔If a switch has ten (10) 1Gbps ports, how much switching capacity would a switch
need to be considered "non-blocking"?
- 5Gbps
- 10Gbps
- 20Gbps
- 40Gbps - ✔✔20Gbps
✔✔When configuring IGMP Snooping, how many switches should be set as an IGMP
Querier?
- None - you made this feature up
- One - there can be only one
- Two - a primary and back up
- All - they compare notes and follow the majority rule - ✔✔One - there can be only one
✔✔Connect the Dante chipsets with the maximum number of audio channels they
support. (Drag the configurations at right onto the appropriate chipset at left.):
- HC and IP Core
- Dante AV
- Brooklyn II
- Broadway
- Ultimo-X
- PCIe Card
- 16x16
- 64x64
- 128x128
- 1 video, 8 audio
- 512x512
- 4x0, 2x2, 0x4 - ✔✔HC and IP Core --> 512x512
Dante AV --> 1 video, 8 audio
