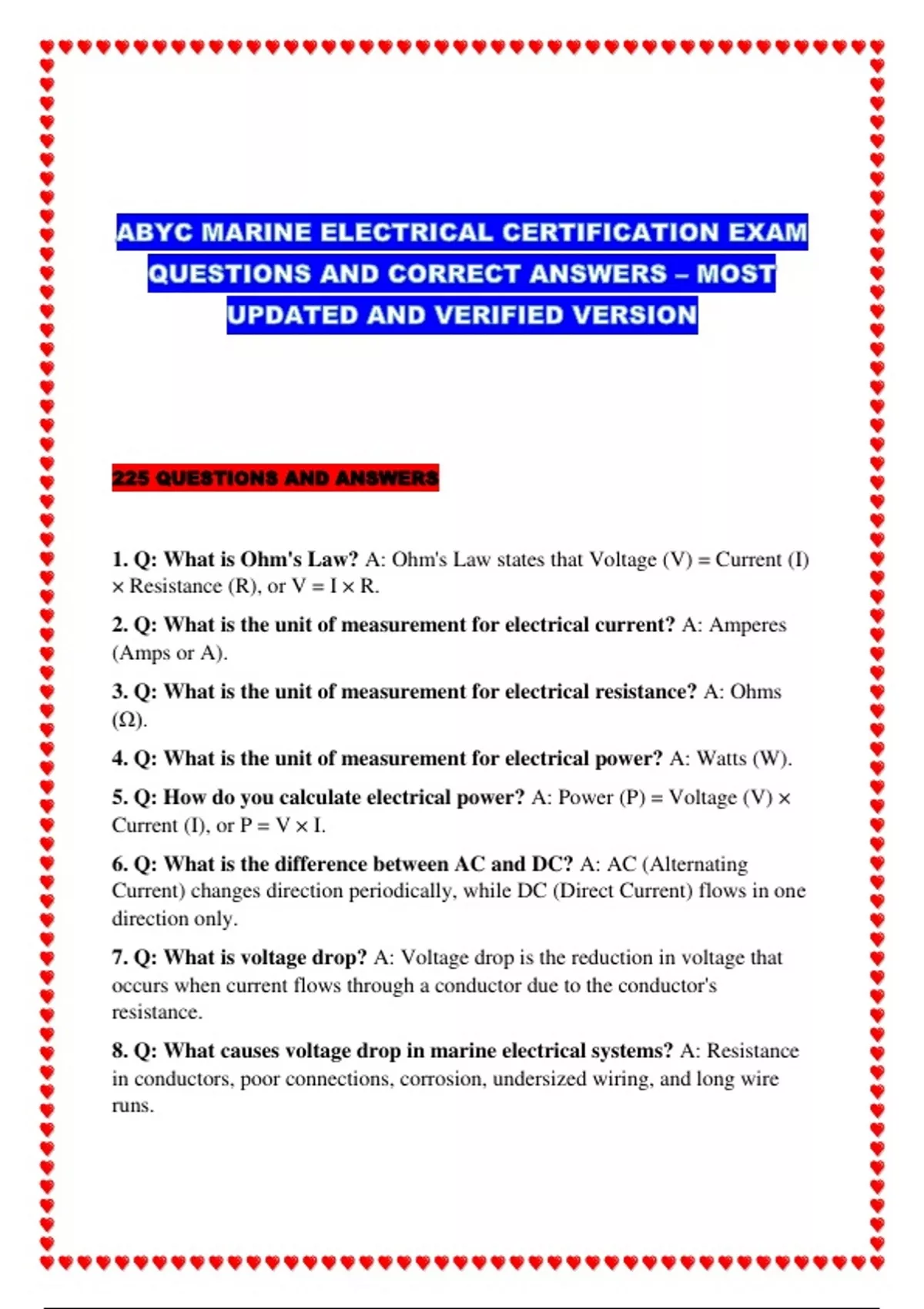

225 QUESTIONS AND ANSWERS
1. Q: What is Ohm's Law? A: Ohm's Law states that Voltage (V) = Current (I)
× Resistance (R), or V = I × R.
2. Q: What is the unit of measurement for electrical current? A: Amperes
(Amps or A).
3. Q: What is the unit of measurement for electrical resistance? A: Ohms
(Ω).
4. Q: What is the unit of measurement for electrical power? A: Watts (W).
5. Q: How do you calculate electrical power? A: Power (P) = Voltage (V) ×
Current (I), or P = V × I.
6. Q: What is the difference between AC and DC? A: AC (Alternating
Current) changes direction periodically, while DC (Direct Current) flows in one
direction only.
7. Q: What is voltage drop? A: Voltage drop is the reduction in voltage that
occurs when current flows through a conductor due to the conductor's
resistance.
8. Q: What causes voltage drop in marine electrical systems? A: Resistance
in conductors, poor connections, corrosion, undersized wiring, and long wire
runs.
,9. Q: What is the maximum allowable voltage drop for DC circuits
according to ABYC standards? A: 3% for critical circuits (navigation lights,
bilge pumps) and 10% for non-critical circuits.
10. Q: What is Kirchhoff's Voltage Law? A: The sum of all voltage drops in a
closed circuit equals the applied voltage.
11. Q: What is Kirchhoff's Current Law? A: The sum of currents entering a
junction equals the sum of currents leaving that junction.
12. Q: What is impedance? A: The total opposition to current flow in an AC
circuit, combining resistance and reactance.
13. Q: What is the relationship between voltage and current in a series
circuit? A: Current is the same throughout all components, while voltage
divides across each component.
14. Q: What is the relationship between voltage and current in a parallel
circuit? A: Voltage is the same across all branches, while current divides
among the branches.
15. Q: What is a short circuit? A: An unintended low-resistance path that
allows excessive current flow, bypassing the normal load.
16. Q: What is an open circuit? A: A break in the circuit path that prevents
current flow.
17. Q: What is electrical continuity? A: An unbroken path for electrical
current to flow through a circuit.
18. Q: What is electrical ground? A: A reference point in an electrical circuit,
typically connected to the vessel's bonding system or battery negative.
19. Q: What is the difference between grounding and bonding? A:
Grounding provides electrical safety and circuit completion, while bonding
connects metallic components to prevent galvanic corrosion.
20. Q: What is electrical polarity? A: The distinction between positive and
negative terminals or conductors in a DC circuit.
21. Q: What happens when you connect batteries in series? A: Voltages add
together while current capacity remains the same as a single battery.
22. Q: What happens when you connect batteries in parallel? A: Current
capacity adds together while voltage remains the same as a single battery.
, 23. Q: What is electrical load? A: Any device or component that consumes
electrical power in a circuit.
24. Q: What is electrical capacity? A: The ability of a component to store or
handle electrical energy, measured in amp-hours for batteries.
25. Q: What is frequency in AC circuits? A: The number of complete cycles
per second, measured in Hertz (Hz).
26. Q: What is the standard frequency for marine AC systems in North
America? A: 60 Hz.
27. Q: What is RMS voltage? A: Root Mean Square voltage - the effective AC
voltage equivalent to DC voltage for power calculations.
28. Q: What is peak voltage in AC circuits? A: The maximum instantaneous
voltage reached during an AC cycle, approximately 1.414 times the RMS
voltage.
29. Q: What is three-phase power? A: An AC power system using three
alternating voltages 120 degrees out of phase with each other.
30. Q: What is power factor? A: The ratio of real power to apparent power in
AC circuits, indicating efficiency.
31. Q: What is inductive load? A: A load that creates a magnetic field, like
motors and transformers, causing current to lag voltage.
32. Q: What is capacitive load? A: A load that stores electrical energy in an
electric field, causing current to lead voltage.
33. Q: What is resistive load? A: A load that converts electrical energy
directly to heat, with current and voltage in phase.
34. Q: What is electrical efficiency? A: The ratio of useful power output to
total power input, expressed as a percentage.
35. Q: What is electrical conductivity? A: The ability of a material to conduct
electrical current.
36. Q: What is electrical insulation? A: Material that prevents the flow of
electrical current.
37. Q: What is dielectric strength? A: The maximum electric field a material
can withstand before breaking down.
38. Q: What is electrical arcing? A: The flow of electrical current through air
or another insulator, creating visible sparks.
