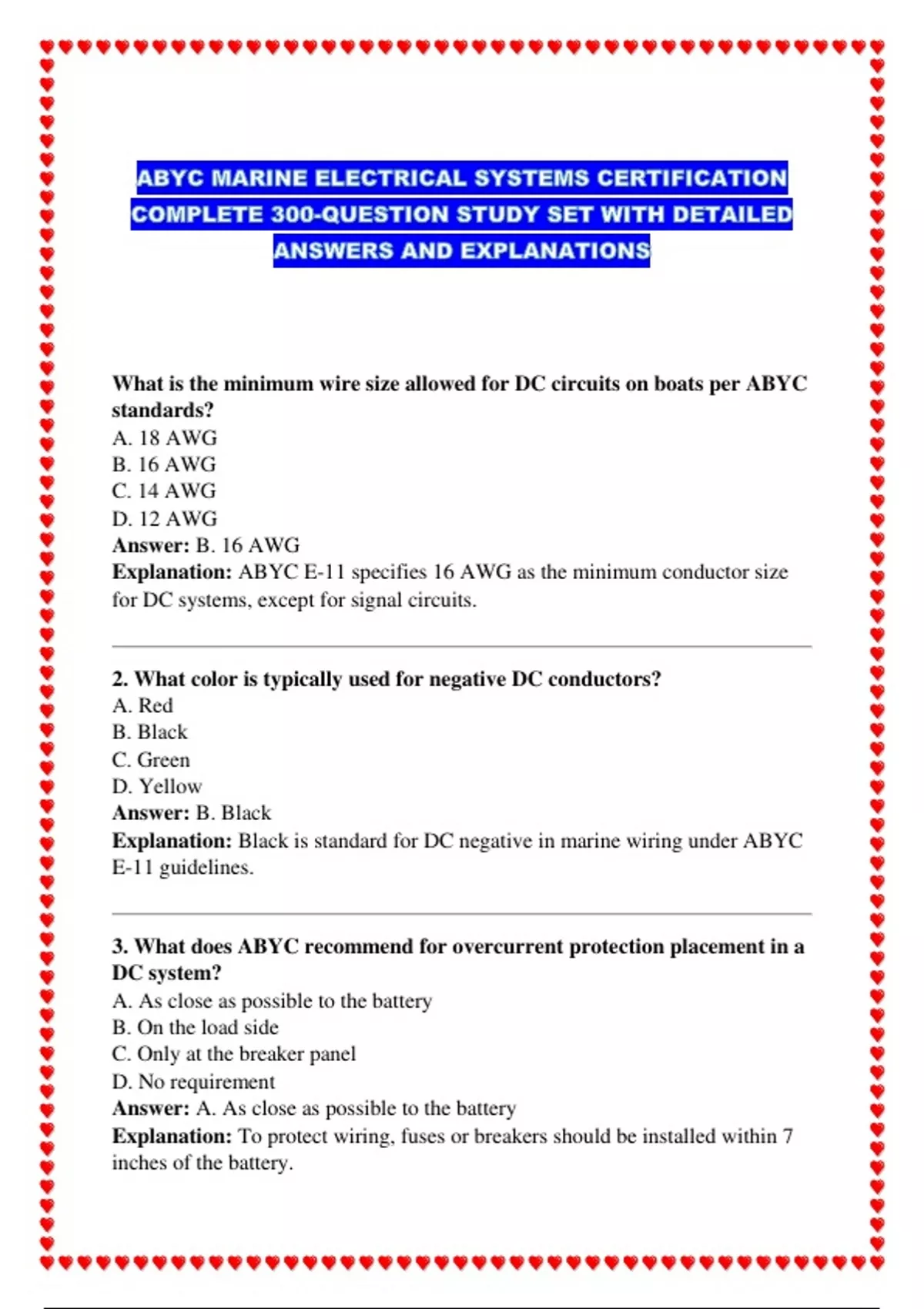

ABYC MARINE ELECTRICAL SYSTEMS CERTIFICATION COMPLETE 300-QUESTION STUDY SET WITH DETAILED ANSWERS AND EXPLANATIONS

What is the minimum wire size allowed for DC circuits on boats per ABYC
standards?
A. 18 AWG
B. 16 AWG
C. 14 AWG
D. 12 AWG
Answer: B. 16 AWG
Explanation: ABYC E-11 specifies 16 AWG as the minimum conductor size
for DC systems, except for signal circuits.


2. What color is typically used for negative DC conductors?
A. Red
B. Black
C. Green
D. Yellow
Answer: B. Black
Explanation: Black is standard for DC negative in marine wiring under ABYC
E-11 guidelines.


3. What does ABYC recommend for overcurrent protection placement in a
DC system?
A. As close as possible to the battery
B. On the load side
C. Only at the breaker panel
D. No requirement
Answer: A. As close as possible to the battery
Explanation: To protect wiring, fuses or breakers should be installed within 7
inches of the battery.

,4. According to ABYC, what is the maximum voltage drop allowed for
lighting and general appliances?
A. 10%
B. 5%
C. 3%
D. 15%
Answer: A. 10%
Explanation: ABYC recommends no more than 10% voltage drop for lighting
and non-critical loads.


5. For critical circuits like bilge pumps, what is the maximum allowed
voltage drop?
A. 5%
B. 7%
C. 10%
D. 15%
Answer: A. 5%
Explanation: Critical systems must maintain low voltage drop for reliable
operation.


6. What is the ABYC standard that governs AC and DC electrical systems
on boats?
A. E-1
B. E-11
C. A-31
D. H-33
Answer: B. E-11
Explanation: ABYC E-11 covers AC and DC electrical systems on boats.


7. What is the correct wire color for DC positive conductors in marine
wiring?
A. Black
B. Green
C. Red
D. Blue

,Answer: C. Red
Explanation: Red is used for DC positive conductors per ABYC color coding.


8. Which standard applies to battery switch installations?
A. E-11
B. A-20
C. A-25
D. A-31
Answer: A. E-11
Explanation: Battery switches and wiring fall under the E-11 standard.


9. What does ABYC require for battery venting?
A. Only AGM batteries need vents
B. All batteries must be sealed
C. Batteries must be vented to outside air
D. Batteries need no venting
Answer: C. Batteries must be vented to outside air
Explanation: Ventilation prevents buildup of explosive gases.


10. What type of insulation is required for marine wire?
A. Thermoplastic
B. Teflon
C. XLPE
D. Oil- and moisture-resistant with a high-temperature rating
Answer: D. Oil- and moisture-resistant with a high-temperature rating
Explanation: ABYC requires marine-grade wire that resists corrosion and heat.


11. What is the ABYC-required minimum current rating for ignition
protection devices?
A. 100A
B. 30A
C. 25A
D. Depends on the load
Answer: D. Depends on the load
Explanation: Overcurrent devices must match the wire and load requirements.

, 12. Which color wire is used for grounding (bonding) systems?
A. Yellow
B. Green or green with yellow stripe
C. Black
D. Red
Answer: B. Green or green with yellow stripe
Explanation: This color denotes grounding/bonding in marine systems.


13. What is the minimum insulation temperature rating for marine cable?
A. 60°C
B. 75°C
C. 105°C
D. 90°C
Answer: C. 105°C
Explanation: ABYC requires 105°C-rated insulation for marine conductors.


14. How often should a marine electrical system be inspected for
compliance?
A. Every 2 years
B. Every 5 years
C. Annually
D. Only during repairs
Answer: C. Annually
Explanation: Regular inspections help prevent failure and ensure compliance.


15. What is used to prevent corrosion at terminal connections?
A. Solder
B. Heat shrink tubing
C. Dielectric grease or anti-corrosion compound
D. Tape
Answer: C. Dielectric grease or anti-corrosion compound
Explanation: These products protect connections in a marine environment.


16. What kind of wire should be used for marine applications?
A. Solid wire
B. Non-tinned stranded wire
