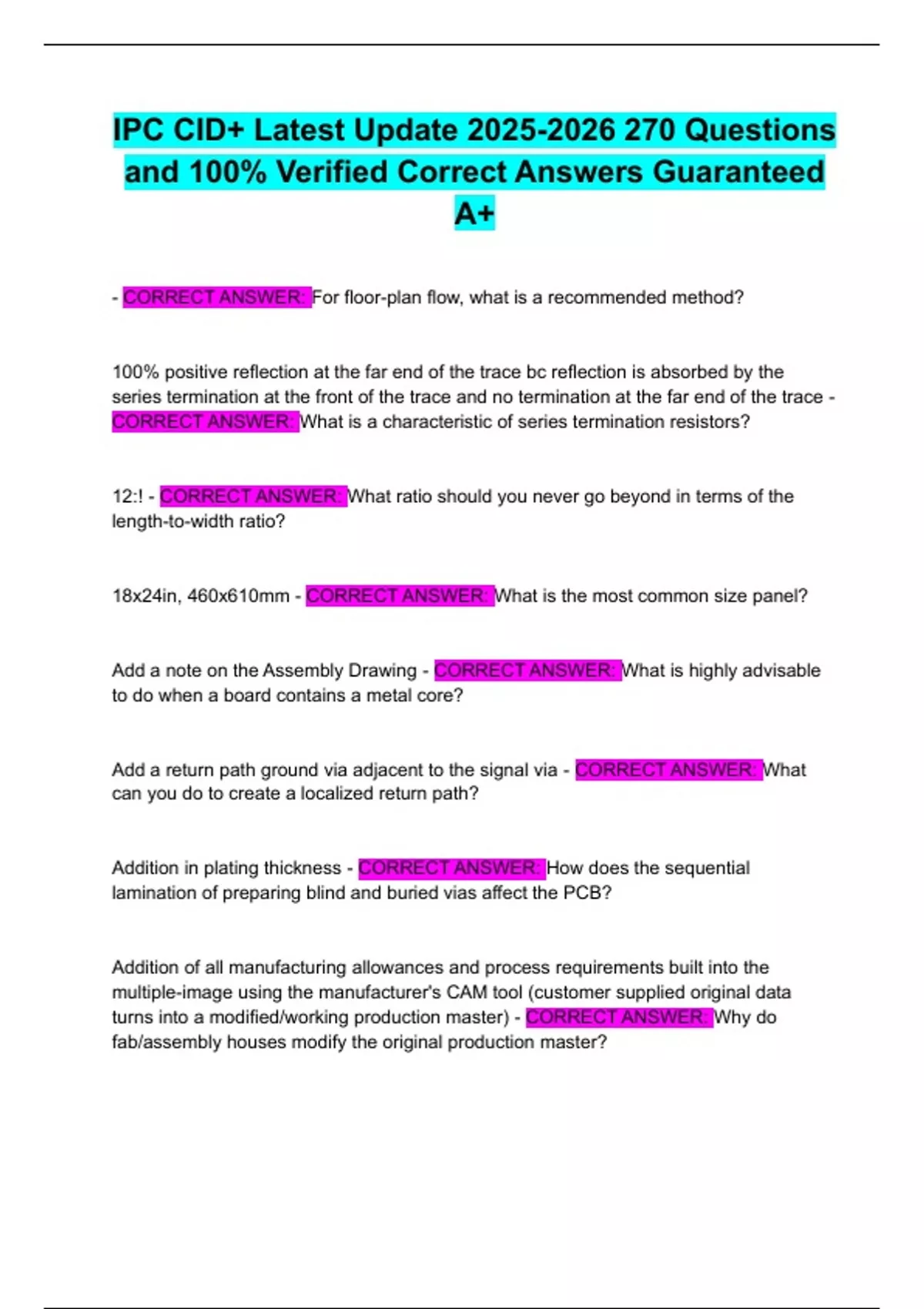

IPC CID+ Latest Update 2025-2026 270 Questions
and 100% Verified Correct Answers Guaranteed
A+
- CORRECT ANSWER: For floor-plan flow, what is a recommended method?
100% positive reflection at the far end of the trace bc reflection is absorbed by the
series termination at the front of the trace and no termination at the far end of the trace -
CORRECT ANSWER: What is a characteristic of series termination resistors?
12:! - CORRECT ANSWER: What ratio should you never go beyond in terms of the
length-to-width ratio?
18x24in, 460x610mm - CORRECT ANSWER: What is the most common size panel?
Add a note on the Assembly Drawing - CORRECT ANSWER: What is highly advisable
to do when a board contains a metal core?
Add a return path ground via adjacent to the signal via - CORRECT ANSWER: What
can you do to create a localized return path?
Addition in plating thickness - CORRECT ANSWER: How does the sequential
lamination of preparing blind and buried vias affect the PCB?
Addition of all manufacturing allowances and process requirements built into the
multiple-image using the manufacturer's CAM tool (customer supplied original data
turns into a modified/working production master) - CORRECT ANSWER: Why do
fab/assembly houses modify the original production master?
,Air, Dk=1 - CORRECT ANSWER: What is the fastest dielectric constant and what is it?
Alignment fiducials - CORRECT ANSWER: What should the designer consider adding
to help the stencil manufacturers?
As least as great as the distance to the nearest power/ground plane - CORRECT
ANSWER: To maintain coupling of 10% or under, you should keep spacing between
conductors ___:
Aspect Ratio - CORRECT ANSWER: Ratio of the thickness of a PCB compared to the
diameter of the smallest hold drilled in the PCB
Assembly Array - CORRECT ANSWER: Printed board image/patterns plus the
additional contiguous deliverable material from the panel (+ tabs, fiducials, tooling holes,
etc...)
At or beyond the last load - CORRECT ANSWER: Where do you put termination stubs
when it is parallel?
Bar codes - CORRECT ANSWER: Easy method in the form of labels for operators to
record documentation
Because of shorter lead lengths in SMT parts, the stress induced by shock and vibe is
considerably smaller compared to through hole leads - CORRECT ANSWER: What's
the advantage of surface mount parts?
BEST FILE FORMAT
Manage technical communication between engineering, design, purchasing, board
fabrication, assembly, test, and reliability engineering - CORRECT ANSWER: What
does intelligent data in the IPC-2581 file do?
, Bilateral Toleraing - CORRECT ANSWER: A tolerance in which a variation is permitted
in both directions from the specific dimension for size and position
Bow and Twist - CORRECT ANSWER: What important effect is reduced as an output
from copper balancing from the center to either side in the laminated product
Burn-in - CORRECT ANSWER: Eliminate infant mortality
Capacitance and inductance - CORRECT ANSWER: What electric properties would a
trace see?
Circuit density, balanced construction, pin escape & routability, signal return path &
minimizing parasitic cross-talk, lamination, drill, and via plating process, dielectric
material properties, and thickness, impedance requirements, overall board thickness,
metal thickness and surface finish, annular ring and drill size & hole producing process -
CORRECT ANSWER: What feature of a PCB is affected b a stackup?
Complete product description in a robust format - CORRECT ANSWER: What is the
goal of good intelligent data format?
Components are rated at a temperature that can take the heat of the solder wave -
CORRECT ANSWER: For components placed on the secondary side that go through
wave soldering, what must be determined about the board?
Cons: Add additional processing steps in manufacturing
Pros: Provide additional real estate for placement and routing - CORRECT ANSWER:
Pros and cons of buried and blind vias?
Controlled depth - CORRECT ANSWER: Drill goes down only to the layers that are to
be connected and does not pierce conductors or violate minimum clearance
