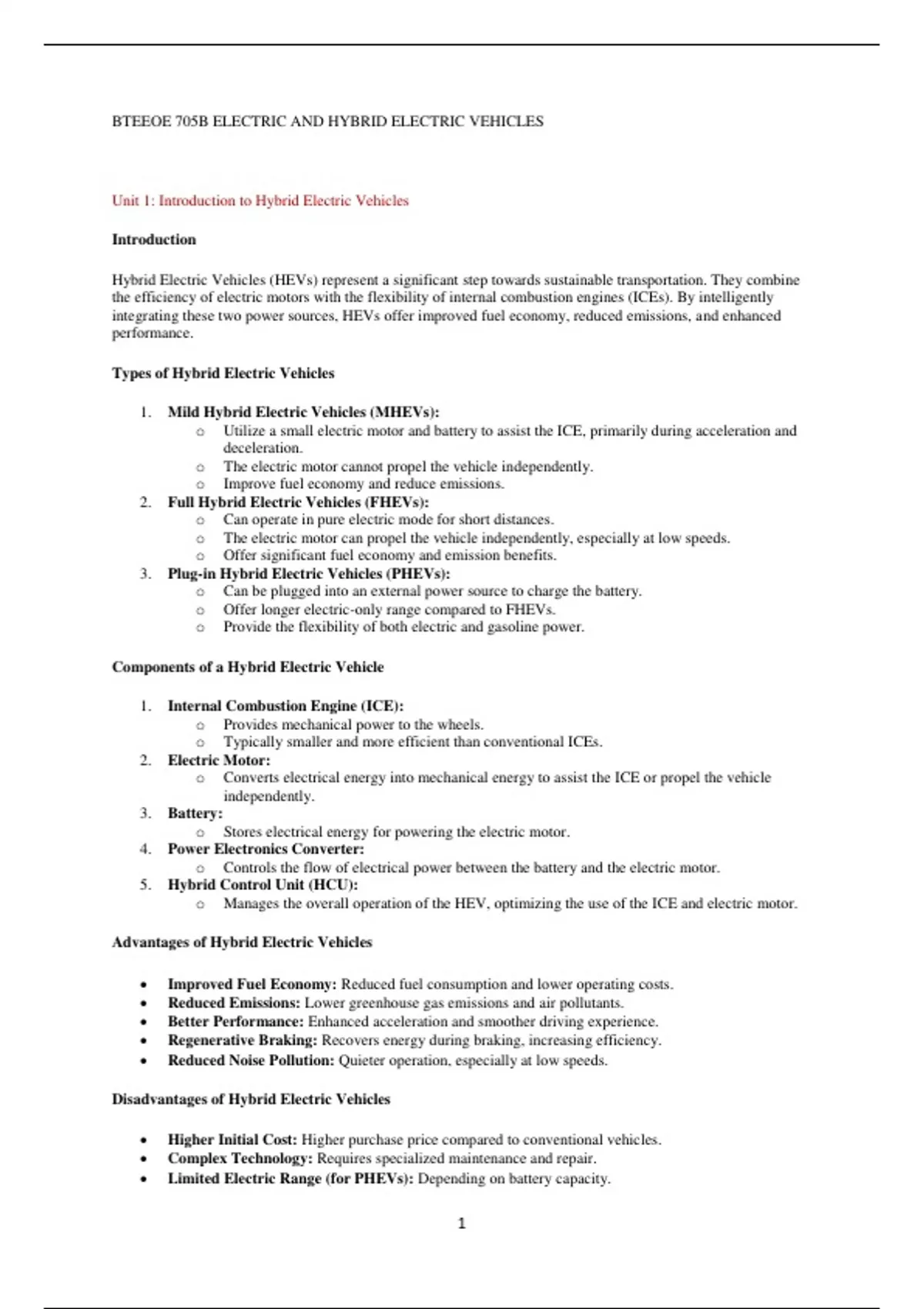

BTEEOE 705B ELECTRIC AND HYBRID ELECTRIC VEHICLES
Unit 1: Introduction to Hybrid Electric Vehicles
Introduction
Hybrid Electric Vehicles (HEVs) represent a significant step towards sustainable transportation. They combine
the efficiency of electric motors with the flexibility of internal combustion engines (ICEs). By intelligently
integrating these two power sources, HEVs offer improved fuel economy, reduced emissions, and enhanced
performance.
Types of Hybrid Electric Vehicles
1. Mild Hybrid Electric Vehicles (MHEVs):
o Utilize a small electric motor and battery to assist the ICE, primarily during acceleration and
deceleration.
o The electric motor cannot propel the vehicle independently.
o Improve fuel economy and reduce emissions.
2. Full Hybrid Electric Vehicles (FHEVs):
o Can operate in pure electric mode for short distances.
o The electric motor can propel the vehicle independently, especially at low speeds.
o Offer significant fuel economy and emission benefits.
3. Plug-in Hybrid Electric Vehicles (PHEVs):
o Can be plugged into an external power source to charge the battery.
o Offer longer electric-only range compared to FHEVs.
o Provide the flexibility of both electric and gasoline power.
Components of a Hybrid Electric Vehicle
1. Internal Combustion Engine (ICE):
o Provides mechanical power to the wheels.
o Typically smaller and more efficient than conventional ICEs.
2. Electric Motor:
o Converts electrical energy into mechanical energy to assist the ICE or propel the vehicle
independently.
3. Battery:
o Stores electrical energy for powering the electric motor.
4. Power Electronics Converter:
o Controls the flow of electrical power between the battery and the electric motor.
5. Hybrid Control Unit (HCU):
o Manages the overall operation of the HEV, optimizing the use of the ICE and electric motor.
Advantages of Hybrid Electric Vehicles
• Improved Fuel Economy: Reduced fuel consumption and lower operating costs.
• Reduced Emissions: Lower greenhouse gas emissions and air pollutants.
• Better Performance: Enhanced acceleration and smoother driving experience.
• Regenerative Braking: Recovers energy during braking, increasing efficiency.
• Reduced Noise Pollution: Quieter operation, especially at low speeds.
Disadvantages of Hybrid Electric Vehicles
• Higher Initial Cost: Higher purchase price compared to conventional vehicles.
• Complex Technology: Requires specialized maintenance and repair.
• Limited Electric Range (for PHEVs): Depending on battery capacity.
1
, ❖ History of Hybrid and Electric Vehicles
1. Early Developments (1800s to Early 1900s)
• 1830s - First Electric Vehicles (EVs):
o Inventors like Robert Anderson and Thomas Davenport developed early prototypes of
electric-powered vehicles using crude batteries.
o 1832-1839: Scottish inventor Robert Anderson created one of the first electric carriages using
non-rechargeable batteries.
• Late 1800s - Growth of Electric Vehicles:
o By the 1880s and 1890s, electric vehicles were popular in urban areas due to their simplicity,
quiet operation, and ease of use compared to steam and early internal combustion engine
(ICE) vehicles.
o 1899: La Jamais Contente, an electric vehicle, set a world speed record of 65 mph,
showcasing the potential of electric propulsion.
2. Introduction of Hybrid Vehicles
• 1898 - Ferdinand Porsche’s Hybrid Car:
o Ferdinand Porsche developed the Lohner-Porsche Mixte in 1898, one of the first hybrids
combining an electric motor with a gasoline engine. It used wheel hub motors and could drive
both electrically and with an engine for additional range.
• 1900s - Early Hybrid Designs:
o 1901: The Woods Motor Vehicle Company of Chicago produced the Woods Dual Power, a
gasoline-electric hybrid vehicle with a top speed of 20 mph.
o Early hybrids saw limited adoption, as improvements in ICE technology and the discovery of
crude oil made gasoline-powered vehicles more practical and affordable.
3. Decline of Electric Vehicles (1920s-1960s)
• Rise of Internal Combustion Engines:
o Improved fuel availability, advancements in ICE efficiency, and the mass production of
affordable gasoline vehicles by companies like Ford led to a decline in the popularity of
electric vehicles.
o The discovery of vast oil reserves and the introduction of the electric starter motor for ICE
vehicles further sidelined electric and hybrid technologies.
4. Renewed Interest in the 1970s - Oil Crisis and Environmental Concerns
• 1973 Oil Crisis:
o The oil embargo of 1973 led to skyrocketing fuel prices, sparking renewed interest in fuel-
efficient technologies, including electric and hybrid vehicles.
o Governments and automakers began funding research into alternative powertrains to reduce
dependency on oil.
• 1970s-1980s - Limited Production Hybrids:
o Companies like General Motors experimented with electric and hybrid prototypes. However,
limited battery technology and high costs prevented large-scale production.
5. Modern Hybrid Vehicles - 1990s to Early 2000s
• Toyota Prius (1997):
o In 1997, Toyota launched the Prius in Japan, the world’s first mass-produced hybrid electric
vehicle, which later became globally popular due to its fuel efficiency and low emissions.
o The Prius introduced a parallel hybrid system combining an ICE with an electric motor and a
battery, setting the standard for modern hybrids.
• Honda Insight (1999):
2
, o In 1999, Honda released the Insight, the first hybrid car available in North America. It used a
lightweight aluminum body and featured an integrated motor assist system for efficiency.
6. Advancements in Hybrid and Electric Vehicles (2010s-Present)
• Expansion of Hybrid Models:
o Other automakers, including Ford, Chevrolet, and Hyundai, launched hybrid models to meet
increasing demand for fuel-efficient vehicles.
o Plug-In Hybrid Electric Vehicles (PHEVs) were introduced, offering the ability to recharge
batteries externally and extend electric-only range.
• Growth of Pure Electric Vehicles (EVs):
o Companies like Tesla, Nissan (with the Leaf), and Chevrolet (with the Bolt) pushed
advancements in battery technology and charging infrastructure, making pure EVs more
practical for daily use.
• Global Push for Electrification:
o Governments worldwide have introduced incentives and policies supporting EVs and hybrids,
aiming to reduce carbon emissions and air pollution.
7. Future Trends and Outlook
• Battery and Charging Innovations:
o Solid-state batteries, fast-charging technology, and other advancements are being researched
to enhance EV performance and affordability.
• Shift to Zero Emissions:
o Many countries are setting target dates to phase out ICE vehicles entirely, favoring hybrids
and EVs to promote a cleaner environment.
❖ Social and Environmental Importance of Hybrid and Electric Vehicles
Hybrid and electric vehicles (HEVs and EVs) have emerged as crucial tools in addressing pressing social and
environmental challenges. Here are some of the key benefits:
Environmental Benefits:
1. Reduced Greenhouse Gas Emissions:
o EVs, especially those powered by renewable energy sources, produce zero tailpipe emissions,
significantly reducing greenhouse gas contributions to climate change.
o HEVs also emit fewer greenhouse gases compared to traditional gasoline-powered vehicles,
particularly in urban driving conditions.
2. Improved Air Quality:
o Reduced emissions of harmful pollutants like nitrogen oxides, particulate matter, and volatile
organic compounds. These pollutants contribute to respiratory illnesses, heart disease, and
other health problems.
o Cleaner air in urban areas, especially in congested cities, leading to improved public health.
3. Reduced Dependence on Fossil Fuels:
o Decreased reliance on fossil fuels like oil, which can lead to greater energy security and
reduced geopolitical tensions.
o Reduced demand for fossil fuels can also lower energy costs for consumers in the long term.
4. Conservation of Natural Resources:
o Lower demand for fossil fuels, which are finite resources.
o Reduced mining and refining activities, which can have negative environmental impacts, such
as habitat destruction and water pollution.
5. Potential for Renewable Energy Integration:
o EVs can be charged using renewable energy sources like solar and wind power, further
reducing carbon emissions and promoting sustainable energy practices.
3
, Social Benefits:
1. Improved Public Health:
o Cleaner air leads to improved respiratory health, especially for vulnerable populations like
children, the elderly, and individuals with respiratory conditions.
o Reduced traffic noise, leading to a quieter and more peaceful environment, which can have
positive impacts on mental health and well-being.
2. Economic Benefits:
o Potential for new jobs in the manufacturing, charging infrastructure, and related industries.
o Reduced healthcare costs associated with air pollution-related illnesses.
o Increased energy independence and reduced reliance on foreign oil, which can strengthen
national economies.
3. Enhanced Quality of Life:
o Quieter and less polluted urban environments.
o Smoother and more efficient driving experiences, reducing stress and improving overall
quality of life.
o Potential for smart grid integration and energy efficiency, leading to lower energy costs and a
more sustainable energy system.
4. Innovation and Technological Advancement:
o The development of electric and hybrid vehicle technology drives innovation in various fields,
such as battery technology, electric motors, and power electronics.
o These technological advancements can have positive spillover effects on other industries and
contribute to economic growth.
5. Social Equity:
o Increased access to affordable, efficient, and environmentally friendly transportation options
can benefit low-income communities and reduce transportation disparities.
o By reducing reliance on fossil fuels, electric vehicles can help mitigate the impacts of climate
change, which disproportionately affect marginalized communities.
❖ Impact of Modern Drive-Trains on Energy Supplies
Modern drive-trains, particularly in Hybrid Electric Vehicles (HEVs) and Electric Vehicles (EVs), have had a
significant impact on global energy supplies. These impacts are evident in shifts within the oil and energy
markets, renewable energy integration, and broader energy demand dynamics.
1. Reduced Demand for Oil and Fossil Fuels
• Lower Oil Consumption:
o EVs do not require gasoline, while HEVs use significantly less, reducing the overall demand
for oil and fossil fuels.
o As adoption rates of EVs and HEVs increase, the global demand for oil could stabilize or
decrease, impacting fossil fuel economies.
• Shift in Fuel Market Dynamics:
o Reduced gasoline demand from modern drive-trains could impact global oil prices, creating
challenges for regions and countries heavily reliant on oil exports.
o This shift encourages oil-dependent economies to diversify into renewable energy or invest in
other sectors to sustain their economies.
2. Increased Demand for Electricity
• Rising Electricity Consumption:
o EVs require substantial electric power, which can increase overall electricity demand. This
impacts energy providers and grid infrastructure, especially in areas with high EV adoption
rates.
o Charging times and habits (e.g., evening charging) can put strain on electricity grids,
necessitating investment in infrastructure upgrades and demand response strategies.
4
Unit 1: Introduction to Hybrid Electric Vehicles
Introduction
Hybrid Electric Vehicles (HEVs) represent a significant step towards sustainable transportation. They combine
the efficiency of electric motors with the flexibility of internal combustion engines (ICEs). By intelligently
integrating these two power sources, HEVs offer improved fuel economy, reduced emissions, and enhanced
performance.
Types of Hybrid Electric Vehicles
1. Mild Hybrid Electric Vehicles (MHEVs):
o Utilize a small electric motor and battery to assist the ICE, primarily during acceleration and
deceleration.
o The electric motor cannot propel the vehicle independently.
o Improve fuel economy and reduce emissions.
2. Full Hybrid Electric Vehicles (FHEVs):
o Can operate in pure electric mode for short distances.
o The electric motor can propel the vehicle independently, especially at low speeds.
o Offer significant fuel economy and emission benefits.
3. Plug-in Hybrid Electric Vehicles (PHEVs):
o Can be plugged into an external power source to charge the battery.
o Offer longer electric-only range compared to FHEVs.
o Provide the flexibility of both electric and gasoline power.
Components of a Hybrid Electric Vehicle
1. Internal Combustion Engine (ICE):
o Provides mechanical power to the wheels.
o Typically smaller and more efficient than conventional ICEs.
2. Electric Motor:
o Converts electrical energy into mechanical energy to assist the ICE or propel the vehicle
independently.
3. Battery:
o Stores electrical energy for powering the electric motor.
4. Power Electronics Converter:
o Controls the flow of electrical power between the battery and the electric motor.
5. Hybrid Control Unit (HCU):
o Manages the overall operation of the HEV, optimizing the use of the ICE and electric motor.
Advantages of Hybrid Electric Vehicles
• Improved Fuel Economy: Reduced fuel consumption and lower operating costs.
• Reduced Emissions: Lower greenhouse gas emissions and air pollutants.
• Better Performance: Enhanced acceleration and smoother driving experience.
• Regenerative Braking: Recovers energy during braking, increasing efficiency.
• Reduced Noise Pollution: Quieter operation, especially at low speeds.
Disadvantages of Hybrid Electric Vehicles
• Higher Initial Cost: Higher purchase price compared to conventional vehicles.
• Complex Technology: Requires specialized maintenance and repair.
• Limited Electric Range (for PHEVs): Depending on battery capacity.
1
, ❖ History of Hybrid and Electric Vehicles
1. Early Developments (1800s to Early 1900s)
• 1830s - First Electric Vehicles (EVs):
o Inventors like Robert Anderson and Thomas Davenport developed early prototypes of
electric-powered vehicles using crude batteries.
o 1832-1839: Scottish inventor Robert Anderson created one of the first electric carriages using
non-rechargeable batteries.
• Late 1800s - Growth of Electric Vehicles:
o By the 1880s and 1890s, electric vehicles were popular in urban areas due to their simplicity,
quiet operation, and ease of use compared to steam and early internal combustion engine
(ICE) vehicles.
o 1899: La Jamais Contente, an electric vehicle, set a world speed record of 65 mph,
showcasing the potential of electric propulsion.
2. Introduction of Hybrid Vehicles
• 1898 - Ferdinand Porsche’s Hybrid Car:
o Ferdinand Porsche developed the Lohner-Porsche Mixte in 1898, one of the first hybrids
combining an electric motor with a gasoline engine. It used wheel hub motors and could drive
both electrically and with an engine for additional range.
• 1900s - Early Hybrid Designs:
o 1901: The Woods Motor Vehicle Company of Chicago produced the Woods Dual Power, a
gasoline-electric hybrid vehicle with a top speed of 20 mph.
o Early hybrids saw limited adoption, as improvements in ICE technology and the discovery of
crude oil made gasoline-powered vehicles more practical and affordable.
3. Decline of Electric Vehicles (1920s-1960s)
• Rise of Internal Combustion Engines:
o Improved fuel availability, advancements in ICE efficiency, and the mass production of
affordable gasoline vehicles by companies like Ford led to a decline in the popularity of
electric vehicles.
o The discovery of vast oil reserves and the introduction of the electric starter motor for ICE
vehicles further sidelined electric and hybrid technologies.
4. Renewed Interest in the 1970s - Oil Crisis and Environmental Concerns
• 1973 Oil Crisis:
o The oil embargo of 1973 led to skyrocketing fuel prices, sparking renewed interest in fuel-
efficient technologies, including electric and hybrid vehicles.
o Governments and automakers began funding research into alternative powertrains to reduce
dependency on oil.
• 1970s-1980s - Limited Production Hybrids:
o Companies like General Motors experimented with electric and hybrid prototypes. However,
limited battery technology and high costs prevented large-scale production.
5. Modern Hybrid Vehicles - 1990s to Early 2000s
• Toyota Prius (1997):
o In 1997, Toyota launched the Prius in Japan, the world’s first mass-produced hybrid electric
vehicle, which later became globally popular due to its fuel efficiency and low emissions.
o The Prius introduced a parallel hybrid system combining an ICE with an electric motor and a
battery, setting the standard for modern hybrids.
• Honda Insight (1999):
2
, o In 1999, Honda released the Insight, the first hybrid car available in North America. It used a
lightweight aluminum body and featured an integrated motor assist system for efficiency.
6. Advancements in Hybrid and Electric Vehicles (2010s-Present)
• Expansion of Hybrid Models:
o Other automakers, including Ford, Chevrolet, and Hyundai, launched hybrid models to meet
increasing demand for fuel-efficient vehicles.
o Plug-In Hybrid Electric Vehicles (PHEVs) were introduced, offering the ability to recharge
batteries externally and extend electric-only range.
• Growth of Pure Electric Vehicles (EVs):
o Companies like Tesla, Nissan (with the Leaf), and Chevrolet (with the Bolt) pushed
advancements in battery technology and charging infrastructure, making pure EVs more
practical for daily use.
• Global Push for Electrification:
o Governments worldwide have introduced incentives and policies supporting EVs and hybrids,
aiming to reduce carbon emissions and air pollution.
7. Future Trends and Outlook
• Battery and Charging Innovations:
o Solid-state batteries, fast-charging technology, and other advancements are being researched
to enhance EV performance and affordability.
• Shift to Zero Emissions:
o Many countries are setting target dates to phase out ICE vehicles entirely, favoring hybrids
and EVs to promote a cleaner environment.
❖ Social and Environmental Importance of Hybrid and Electric Vehicles
Hybrid and electric vehicles (HEVs and EVs) have emerged as crucial tools in addressing pressing social and
environmental challenges. Here are some of the key benefits:
Environmental Benefits:
1. Reduced Greenhouse Gas Emissions:
o EVs, especially those powered by renewable energy sources, produce zero tailpipe emissions,
significantly reducing greenhouse gas contributions to climate change.
o HEVs also emit fewer greenhouse gases compared to traditional gasoline-powered vehicles,
particularly in urban driving conditions.
2. Improved Air Quality:
o Reduced emissions of harmful pollutants like nitrogen oxides, particulate matter, and volatile
organic compounds. These pollutants contribute to respiratory illnesses, heart disease, and
other health problems.
o Cleaner air in urban areas, especially in congested cities, leading to improved public health.
3. Reduced Dependence on Fossil Fuels:
o Decreased reliance on fossil fuels like oil, which can lead to greater energy security and
reduced geopolitical tensions.
o Reduced demand for fossil fuels can also lower energy costs for consumers in the long term.
4. Conservation of Natural Resources:
o Lower demand for fossil fuels, which are finite resources.
o Reduced mining and refining activities, which can have negative environmental impacts, such
as habitat destruction and water pollution.
5. Potential for Renewable Energy Integration:
o EVs can be charged using renewable energy sources like solar and wind power, further
reducing carbon emissions and promoting sustainable energy practices.
3
, Social Benefits:
1. Improved Public Health:
o Cleaner air leads to improved respiratory health, especially for vulnerable populations like
children, the elderly, and individuals with respiratory conditions.
o Reduced traffic noise, leading to a quieter and more peaceful environment, which can have
positive impacts on mental health and well-being.
2. Economic Benefits:
o Potential for new jobs in the manufacturing, charging infrastructure, and related industries.
o Reduced healthcare costs associated with air pollution-related illnesses.
o Increased energy independence and reduced reliance on foreign oil, which can strengthen
national economies.
3. Enhanced Quality of Life:
o Quieter and less polluted urban environments.
o Smoother and more efficient driving experiences, reducing stress and improving overall
quality of life.
o Potential for smart grid integration and energy efficiency, leading to lower energy costs and a
more sustainable energy system.
4. Innovation and Technological Advancement:
o The development of electric and hybrid vehicle technology drives innovation in various fields,
such as battery technology, electric motors, and power electronics.
o These technological advancements can have positive spillover effects on other industries and
contribute to economic growth.
5. Social Equity:
o Increased access to affordable, efficient, and environmentally friendly transportation options
can benefit low-income communities and reduce transportation disparities.
o By reducing reliance on fossil fuels, electric vehicles can help mitigate the impacts of climate
change, which disproportionately affect marginalized communities.
❖ Impact of Modern Drive-Trains on Energy Supplies
Modern drive-trains, particularly in Hybrid Electric Vehicles (HEVs) and Electric Vehicles (EVs), have had a
significant impact on global energy supplies. These impacts are evident in shifts within the oil and energy
markets, renewable energy integration, and broader energy demand dynamics.
1. Reduced Demand for Oil and Fossil Fuels
• Lower Oil Consumption:
o EVs do not require gasoline, while HEVs use significantly less, reducing the overall demand
for oil and fossil fuels.
o As adoption rates of EVs and HEVs increase, the global demand for oil could stabilize or
decrease, impacting fossil fuel economies.
• Shift in Fuel Market Dynamics:
o Reduced gasoline demand from modern drive-trains could impact global oil prices, creating
challenges for regions and countries heavily reliant on oil exports.
o This shift encourages oil-dependent economies to diversify into renewable energy or invest in
other sectors to sustain their economies.
2. Increased Demand for Electricity
• Rising Electricity Consumption:
o EVs require substantial electric power, which can increase overall electricity demand. This
impacts energy providers and grid infrastructure, especially in areas with high EV adoption
rates.
o Charging times and habits (e.g., evening charging) can put strain on electricity grids,
necessitating investment in infrastructure upgrades and demand response strategies.
4
