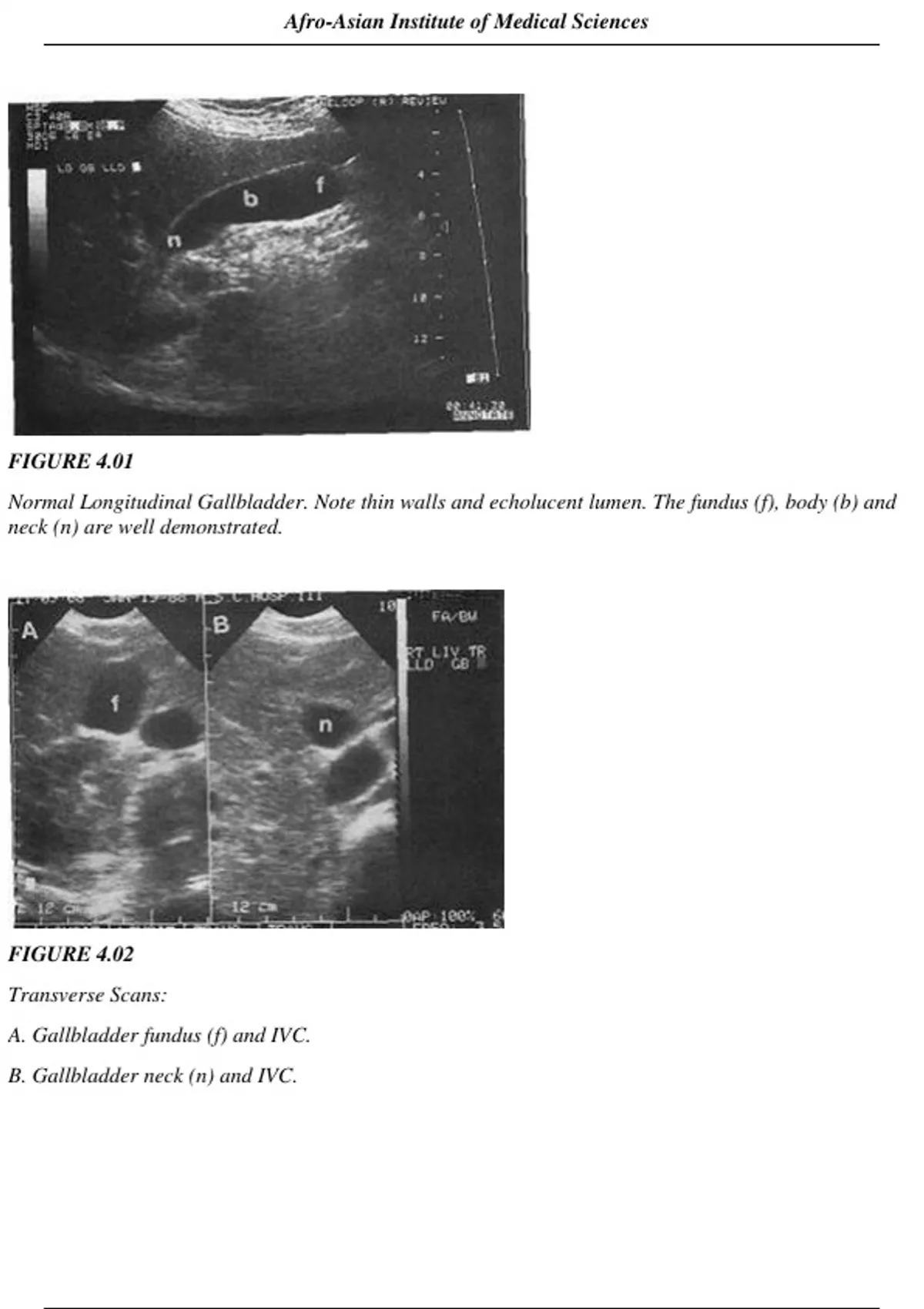

FIGURE 4.01
Normal Longitudinal Gallbladder. Note thin walls and echolucent lumen. The fundus (f), body (b) and
neck (n) are well demonstrated.
FIGURE 4.02
Transverse Scans:
A. Gallbladder fundus (f) and IVC.
B. Gallbladder neck (n) and IVC.
