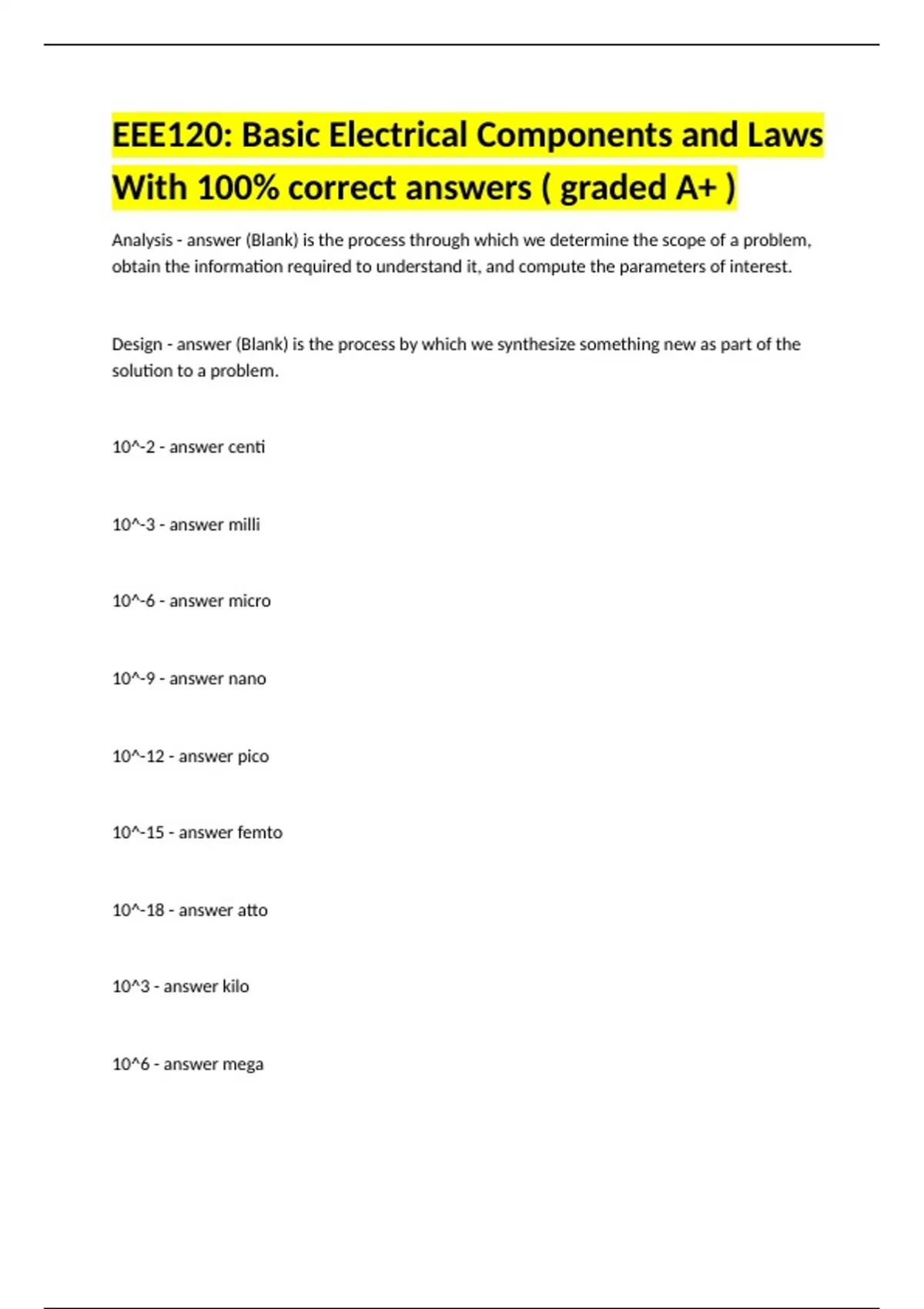

EEE120: Basic Electrical Components and Laws
With 100% correct answers ( graded A+ )
Analysis - answer (Blank) is the process through which we determine the scope of a problem,
obtain the information required to understand it, and compute the parameters of interest.
Design - answer (Blank) is the process by which we synthesize something new as part of the
solution to a problem.
10^-2 - answer centi
10^-3 - answer milli
10^-6 - answer micro
10^-9 - answer nano
10^-12 - answer pico
10^-15 - answer femto
10^-18 - answer atto
10^3 - answer kilo
10^6 - answer mega
, 10^9 - answer giga
10^12 - answer tera
Electricity - answer (Blank) is "formed" when particles become charged
Charge - answer The most fundamental quantity of electric circuits.
1.602x10^-19 coulombs - answer In most electric circuits, the basic charge is that of an electron,
which is (blank)
Voltage - answer (Blank) across a terminal pair is a measure of the work required to move
charge through the element.
Power - answer (Blank) must be proportional both to the no. of coulombs transferred per
second (current) and to the energy needed to transfer one coulomb through the element
(voltage)
absorbed - answer The power (blank) by the element is p=vi
generates - answer the element (blank) or supplies a power p=−vi.
0 - answer In any electric circuit, the algebraic sum of the power must be (blank)
independent source - answer A/An (blank) is a voltage or current generator not dependent on
other circuit variables
