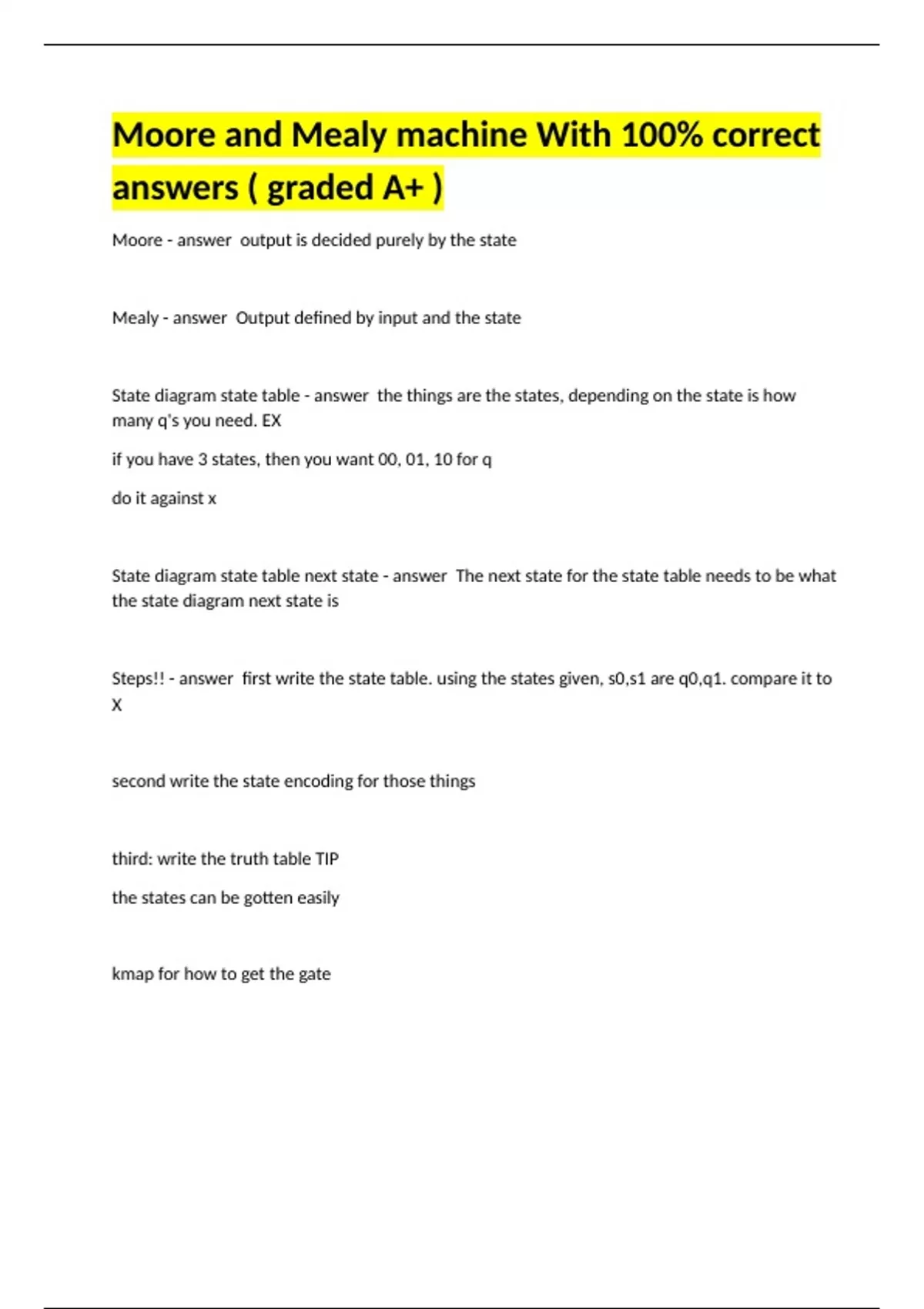

Moore and Mealy machine With 100% correct
answers ( graded A+ )
Moore - answer output is decided purely by the state
Mealy - answer Output defined by input and the state
State diagram state table - answer the things are the states, depending on the state is how
many q's you need. EX
if you have 3 states, then you want 00, 01, 10 for q
do it against x
State diagram state table next state - answer The next state for the state table needs to be what
the state diagram next state is
Steps!! - answer first write the state table. using the states given, s0,s1 are q0,q1. compare it to
X
second write the state encoding for those things
third: write the truth table TIP
the states can be gotten easily
kmap for how to get the gate
