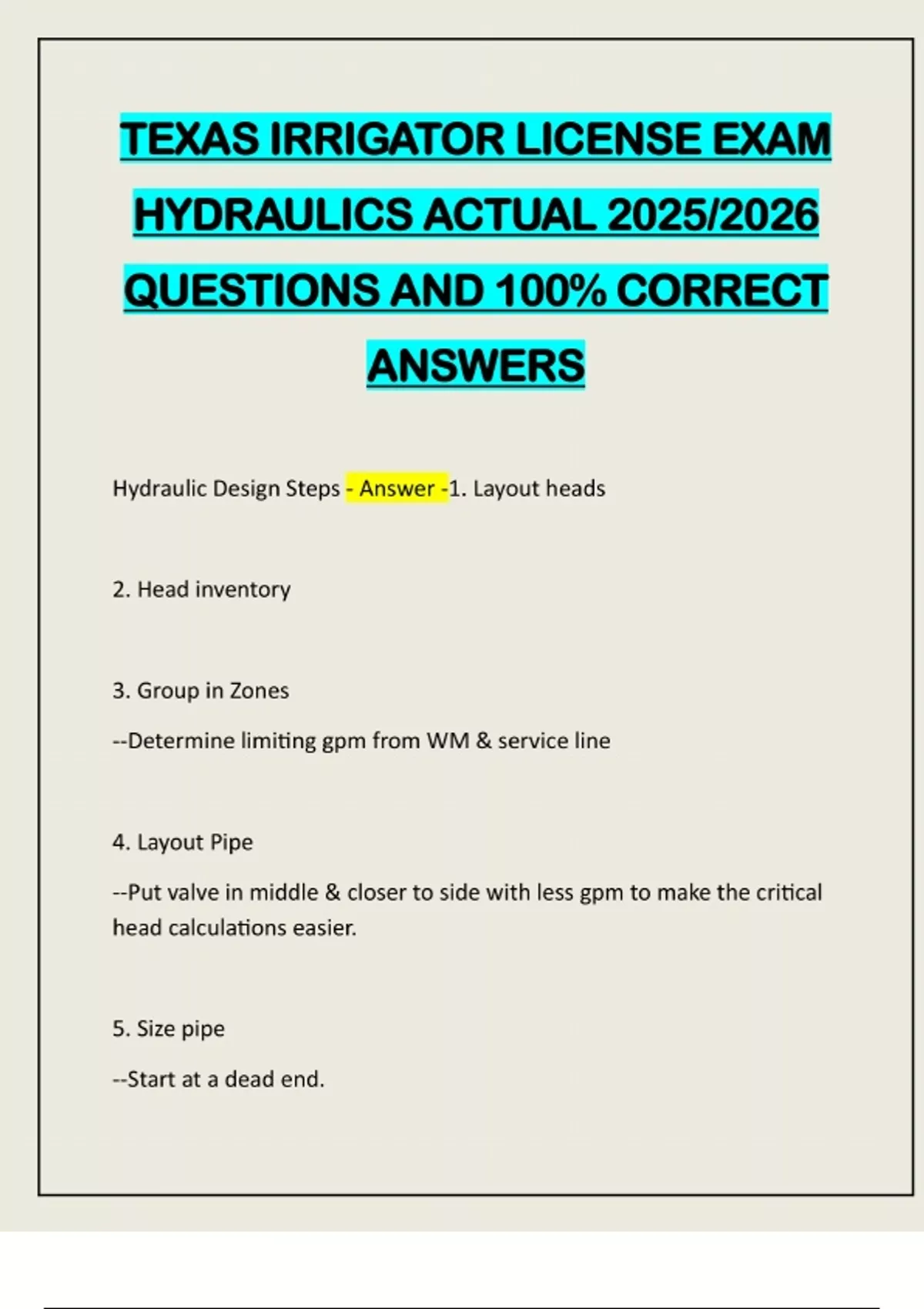

TEXAS IRRIGATOR LICENSE EXAM HYDRAULICS ACTUAL 2025/2026 QUESTIONS AND 100% CORRECT ANSWERS
Rating
Sold
-
Pages
7
Grade
A+
Uploaded on
23-06-2025
Written in
2024/2025
TEXAS IRRIGATOR LICENSE EXAM HYDRAULICS ACTUAL 2025/2026 QUESTIONS AND 100% CORRECT ANSWERS Hydraulic Design Steps - Answer -1. Layout heads 2. Head inventory 3. Group in Zones --Determine limiting gpm from WM & service line 4. Layout Pipe --Put valve in middle & closer to side with less gpm to make the critical head calculations easier. 5. Size pipe --Start at a dead end.--Work towards the water source. --Don't size a pipe unless everything downstream has been sized. --Make mainlines 1" or larger 6. Check Critical Head --L. F. D. 100. I. A. (Ladies Fall Down 100x In Abeline) --Length of pipe, Flow, Diameter of pipe, pressure loss per 100', Item loss, Accumulated loss --LFD. Use Design
