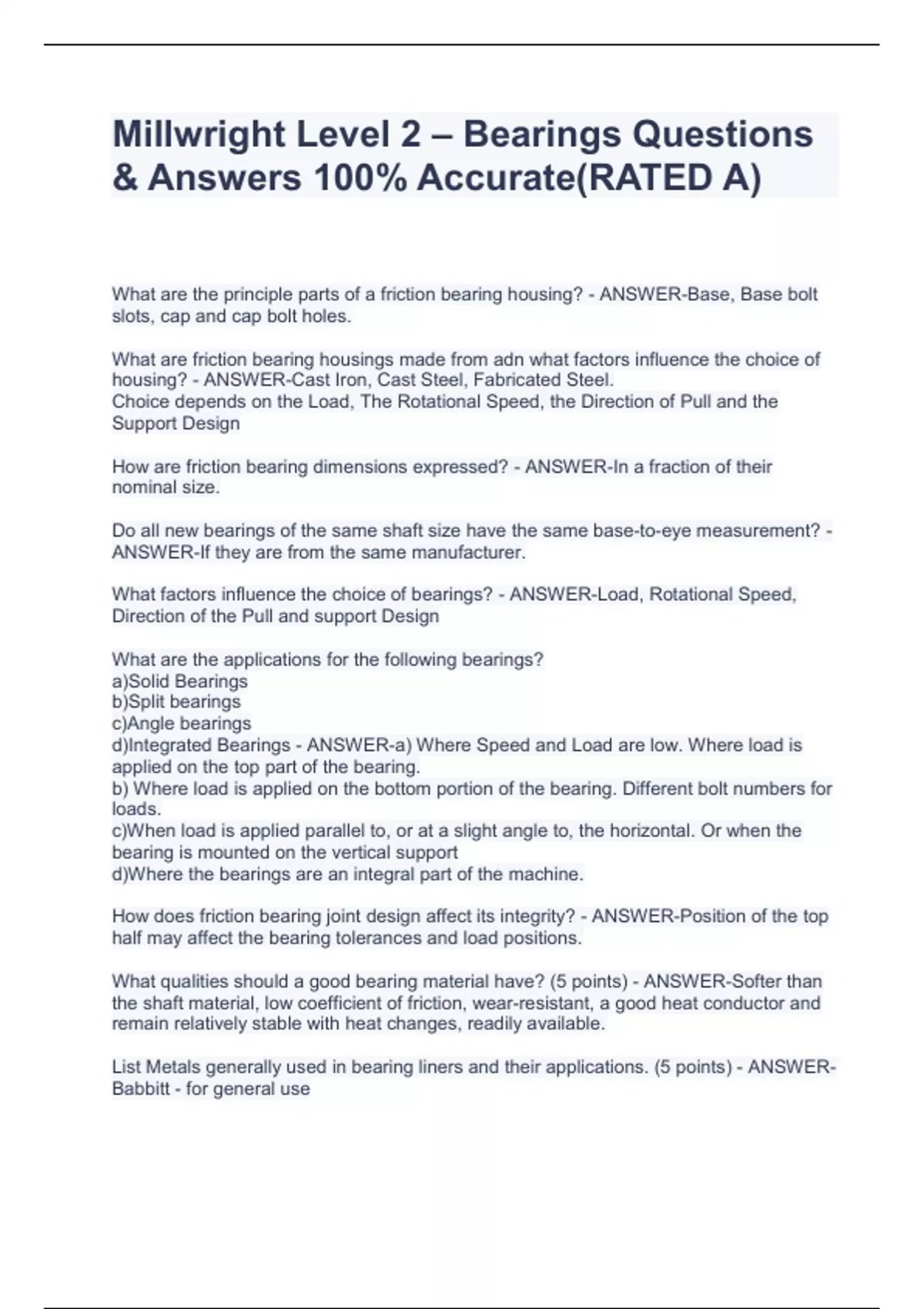

Millwright Level 2 – Bearings Questions
& Answers 100% Accurate(RATED A)
What are the principle parts of a friction bearing housing? - ANSWER-Base, Base bolt
slots, cap and cap bolt holes.
What are friction bearing housings made from adn what factors influence the choice of
housing? - ANSWER-Cast Iron, Cast Steel, Fabricated Steel.
Choice depends on the Load, The Rotational Speed, the Direction of Pull and the
Support Design
How are friction bearing dimensions expressed? - ANSWER-In a fraction of their
nominal size.
Do all new bearings of the same shaft size have the same base-to-eye measurement? -
ANSWER-If they are from the same manufacturer.
What factors influence the choice of bearings? - ANSWER-Load, Rotational Speed,
Direction of the Pull and support Design
What are the applications for the following bearings?
a)Solid Bearings
b)Split bearings
c)Angle bearings
d)Integrated Bearings - ANSWER-a) Where Speed and Load are low. Where load is
applied on the top part of the bearing.
b) Where load is applied on the bottom portion of the bearing. Different bolt numbers for
loads.
c)When load is applied parallel to, or at a slight angle to, the horizontal. Or when the
bearing is mounted on the vertical support
d)Where the bearings are an integral part of the machine.
How does friction bearing joint design affect its integrity? - ANSWER-Position of the top
half may affect the bearing tolerances and load positions.
What qualities should a good bearing material have? (5 points) - ANSWER-Softer than
the shaft material, low coefficient of friction, wear-resistant, a good heat conductor and
remain relatively stable with heat changes, readily available.
List Metals generally used in bearing liners and their applications. (5 points) - ANSWER-
Babbitt - for general use
, Brass (copper zinc alloy) - for higher speeds and heavier load than babbit
Bronze (coper tin alloy) - for higher speeds and heavier loading than babbitt
Aluminum - hydraulic pumps
Sintered Bronze - Porous bronze with a built in oil supply. 2:1 ratio.
What characteristics of nylon polyurethanes and phenol laminates affect their
applications? - ANSWER-Heat, , water saturation.
What is the hardest and toughest babbitt made from? - ANSWER-Tin (90%)
How does overheating affect babitt? - ANSWER-Service life is greatly reduced
How is babbitt held in bearing casting? - ANSWER-Holes or slots.
Describe the procedure for pouring a babbitt bearing using a mandrel. (6 Steps) -
ANSWER-1. Gather Equipment ( oxyacetylene torch putt pliers, babbitt)
2. Fit the torch with a large tip and melt out the remaining babbitt in the casting
3.Smoke the shaft with a straight acetylene flame.
4.Put a putty dam around the shaft and bearing
5. Hold the babbitt with the pair of pliers
6. Melt it into the bearing with the torch.
What must be checked when fitting a bearing? (4 points) - ANSWER-surface finish area
of contact, running clearance, lubrication entry, and grooves
Describe the purpose of tinning. - ANSWER-To secure a thin skin of babbitt to a metallic
backing.
Describe the tools used to fit a friction bearing. - ANSWER-Scraper, files, groove
chisels.
Describe procedure for fitting a bearing. - ANSWER-1. Chamfer the top edges or cut an
oil groove
2. check bearing for contact by coating mandrel in bluing and rotating mandrel
3. Shave down high spots indicated by bluing
Describe the procedure fro shimming a bearing to the correct amount of clearance. -
ANSWER-Insert shims, make sure they do not make contact with the shaft or the
chamfer. Tighten bolts to specs and rotate the shaft. Add shims or realign the cap.
Describe the procedure for checking bearing clearance with a dial indicator, Pastigage
and lead wire. (3 points) - ANSWER-1. Place indicator on both ends of the shaft and
adjust to acquire an even reading.
2. Insert plastigage and tight cap to proper torque and measure width to determine
clearance.
3.Same way as plastigage
& Answers 100% Accurate(RATED A)
What are the principle parts of a friction bearing housing? - ANSWER-Base, Base bolt
slots, cap and cap bolt holes.
What are friction bearing housings made from adn what factors influence the choice of
housing? - ANSWER-Cast Iron, Cast Steel, Fabricated Steel.
Choice depends on the Load, The Rotational Speed, the Direction of Pull and the
Support Design
How are friction bearing dimensions expressed? - ANSWER-In a fraction of their
nominal size.
Do all new bearings of the same shaft size have the same base-to-eye measurement? -
ANSWER-If they are from the same manufacturer.
What factors influence the choice of bearings? - ANSWER-Load, Rotational Speed,
Direction of the Pull and support Design
What are the applications for the following bearings?
a)Solid Bearings
b)Split bearings
c)Angle bearings
d)Integrated Bearings - ANSWER-a) Where Speed and Load are low. Where load is
applied on the top part of the bearing.
b) Where load is applied on the bottom portion of the bearing. Different bolt numbers for
loads.
c)When load is applied parallel to, or at a slight angle to, the horizontal. Or when the
bearing is mounted on the vertical support
d)Where the bearings are an integral part of the machine.
How does friction bearing joint design affect its integrity? - ANSWER-Position of the top
half may affect the bearing tolerances and load positions.
What qualities should a good bearing material have? (5 points) - ANSWER-Softer than
the shaft material, low coefficient of friction, wear-resistant, a good heat conductor and
remain relatively stable with heat changes, readily available.
List Metals generally used in bearing liners and their applications. (5 points) - ANSWER-
Babbitt - for general use
, Brass (copper zinc alloy) - for higher speeds and heavier load than babbit
Bronze (coper tin alloy) - for higher speeds and heavier loading than babbitt
Aluminum - hydraulic pumps
Sintered Bronze - Porous bronze with a built in oil supply. 2:1 ratio.
What characteristics of nylon polyurethanes and phenol laminates affect their
applications? - ANSWER-Heat, , water saturation.
What is the hardest and toughest babbitt made from? - ANSWER-Tin (90%)
How does overheating affect babitt? - ANSWER-Service life is greatly reduced
How is babbitt held in bearing casting? - ANSWER-Holes or slots.
Describe the procedure for pouring a babbitt bearing using a mandrel. (6 Steps) -
ANSWER-1. Gather Equipment ( oxyacetylene torch putt pliers, babbitt)
2. Fit the torch with a large tip and melt out the remaining babbitt in the casting
3.Smoke the shaft with a straight acetylene flame.
4.Put a putty dam around the shaft and bearing
5. Hold the babbitt with the pair of pliers
6. Melt it into the bearing with the torch.
What must be checked when fitting a bearing? (4 points) - ANSWER-surface finish area
of contact, running clearance, lubrication entry, and grooves
Describe the purpose of tinning. - ANSWER-To secure a thin skin of babbitt to a metallic
backing.
Describe the tools used to fit a friction bearing. - ANSWER-Scraper, files, groove
chisels.
Describe procedure for fitting a bearing. - ANSWER-1. Chamfer the top edges or cut an
oil groove
2. check bearing for contact by coating mandrel in bluing and rotating mandrel
3. Shave down high spots indicated by bluing
Describe the procedure fro shimming a bearing to the correct amount of clearance. -
ANSWER-Insert shims, make sure they do not make contact with the shaft or the
chamfer. Tighten bolts to specs and rotate the shaft. Add shims or realign the cap.
Describe the procedure for checking bearing clearance with a dial indicator, Pastigage
and lead wire. (3 points) - ANSWER-1. Place indicator on both ends of the shaft and
adjust to acquire an even reading.
2. Insert plastigage and tight cap to proper torque and measure width to determine
clearance.
3.Same way as plastigage
