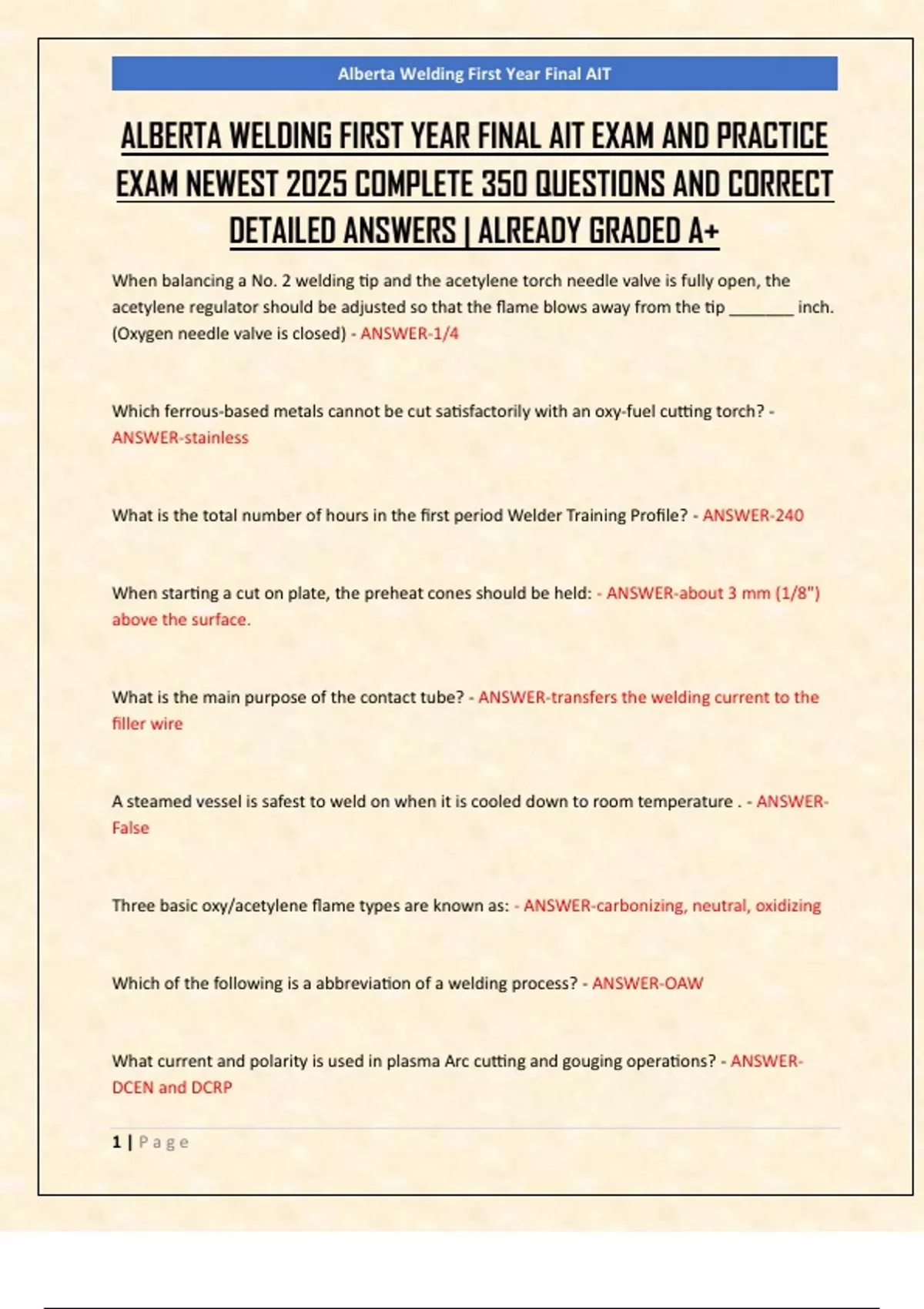

Alberta Welding First Year Final AIT
ALBERTA WELDING FIRST YEAR FINAL AIT EXAM AND PRACTICE
EXAM NEWEST 2025 COMPLETE 350 QUESTIONS AND CORRECT
DETAILED ANSWERS | ALREADY GRADED A+
When balancing a No. 2 welding tip and the acetylene torch needle valve is fully open, the
acetylene regulator should be adjusted so that the flame blows away from the tip _______ inch.
(Oxygen needle valve is closed) - ANSWER-1/4
Which ferrous-based metals cannot be cut satisfactorily with an oxy-fuel cutting torch? -
ANSWER-stainless
What is the total number of hours in the first period Welder Training Profile? - ANSWER-240
When starting a cut on plate, the preheat cones should be held: - ANSWER-about 3 mm (1/8")
above the surface.
What is the main purpose of the contact tube? - ANSWER-transfers the welding current to the
filler wire
A steamed vessel is safest to weld on when it is cooled down to room temperature . - ANSWER-
False
Three basic oxy/acetylene flame types are known as: - ANSWER-carbonizing, neutral, oxidizing
Which of the following is a abbreviation of a welding process? - ANSWER-OAW
What current and polarity is used in plasma Arc cutting and gouging operations? - ANSWER-
DCEN and DCRP
1|Page
, Alberta Welding First Year Final AIT
"Nesting" in GMAW wire feeder can be caused by: - ANSWER-drive roll pressure is set to high
In the AWS designation ER70T-6, the digit '0' would tell you that: - ANSWER-This is a flat and
horizontal filler metal
Grossly unequal pressure of gases may cause a: - ANSWER-flashback.
What is the definition of sling angle? - ANSWER-the angle formed by the legs to the horizontal
plane
Where the rigging was assembled or fabricated by the employer, what percent of the ultimate
breaking strength of the weakest component must the working load not exceed if the rigging is
used to support workers? - ANSWER-10%
How much electrode stickout is recommended when using gas shielded FCAW with 1.2 mm
(0.045") wire? - ANSWER-10 mm to 19 mm (3/8" to 3/4")
What type of wire feed set-up is used with CV power sources? - ANSWER-constant speed
What would the recommended regulator pressure be if we were to safely balance a No. 3
welding tip? - ANSWER-3 lbs. oxygen and 3 lbs. acetylene
Excessive penetration on a root pass would likely be caused by: - ANSWER-travel speeds too
low.
The amount of oxygen and acetylene, from cylinders, required to form a neutral cone is: -
ANSWER-one part oxygen, one part acetylene.
2|Page
, Alberta Welding First Year Final AIT
In the GMAW short-circuiting transfer mode, metal is transferred: - ANSWER-when the
electrode comes in contact with the weld pool.
A Material Safety Data Sheet must be reviewed whenever new information becomes available
or at least how often? - ANSWER-every three years
What is the total number of hours of work experience, including technical training, required per
year in the Welder Apprenticeship Program? - ANSWER-1800
Voltage-sensing wire feeders set their speed according to: - ANSWER-arc voltage.
How much electrode stickout is recommended when using gas shielded FCAW with 1.2 mm
(0.045") wire? - ANSWER-10 mm to 19 mm (3/8" to 3/4")
One of the main functions of the contact tube is to: - ANSWER-transfer current to the electrode.
Flame propagation means the speed at which the fuel gas will travel - ANSWER-False
What height limitation is in place when using freestanding scaffolding? - ANSWER-For free
standing scaffolds, the scaffold must not be taller than three (3) times its smallest dimension in
height
The best reference point for dimensioning on pressure vessels is the: - ANSWER-datum line
Which of the following is an abbreviation of a Non destructive test ? - ANSWER-UT
3|Page
, Alberta Welding First Year Final AIT
In common fabricating practice, there are how many basic joint types? - ANSWER-5
Single "V" butt joints are used on material thicknesses of: - ANSWER-3/8" -1" (9.5 -25.4mm)
A small change in sling angle can drastically affect the: - ANSWER-sling load.
The power sources used for pulsed spray transfer are: - ANSWER-DC synergic, microprocessor-
controlled.
Single "V" butt joints are used on material thicknesses of: - ANSWER-3/8" -1" (9.5 -25.4mm)
If you must apply force to a suspended load, always pull the load towards you. - ANSWER-
When installing clips, the saddle side of the clip must be placed on the: - ANSWER-Live side of
the wire
When properly applying wire rope clips, the strength of the wire rope is reduced by: - ANSWER-
20%
What is the primary concern when unreeling wire rope? - ANSWER-Twisting of the rope
What Part and Section of the OHS Code describes the requirements and options for protective
footwear? - ANSWER-Part 18, Section 233
What Part and Section of the OHS Code describes the requirements for workers training about
WHMIS? - ANSWER-Part 29, Section 397
4|Page
