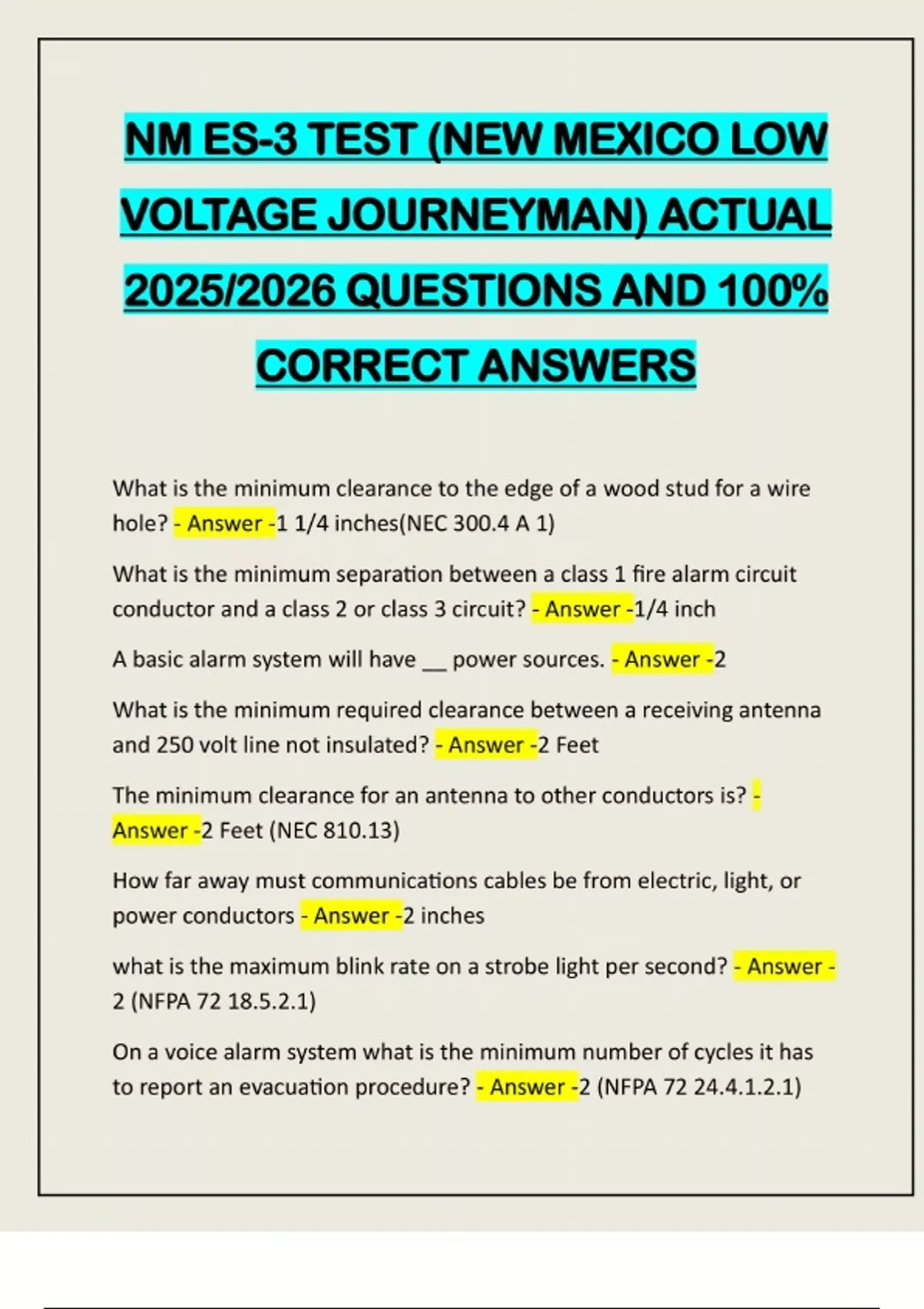

NM ES-3 TEST (NEW MEXICO LOW VOLTAGE JOURNEYMAN) ACTUAL 2025/2026 QUESTIONS AND 100% CORRECT ANSWERS
NM ES-3 TEST (NEW MEXICO LOW VOLTAGE JOURNEYMAN) ACTUAL 2025/2026 QUESTIONS AND 100% CORRECT ANSWERS What is the minimum clearance to the edge of a wood stud for a wire hole? - Answer -1 1/4 inches(NEC 300.4 A 1) What is the minimum separation between a class 1 fire alarm circuit conductor and a class 2 or class 3 circuit? - Answer -1/4 inch A basic alarm system will have __ power sources. - Answer -2 What is the minimum required clearance between a receiving antenna and 250 volt line not insulated? - Answer -2 Feet The minimum clearance for an antenna to other conductors is? - Answer -2 Feet (NEC 810.13) How far away must communications cables be from electric, light, or power conductors - Answer -2 inches what is the maximum blink rate on a strobe light per second? - Answer - 2 (NFPA 72 18.5.2.1) On a voice alarm system what is the minimum number of cycles it has to report an evacuation procedure? - Answer -2 (NFPA 72 24.4.1.2.1)What is the minimum required height for a propriety manual pull fire alarm? - Answer -3 1/2 feet or 42 inches An overhead feeder must have a clearance of __ from chimneys, radio, and television antennas. - Answer -3 Feet (NEC 225.19 B) The NEC classifies Continuous Load as equipment running at a maximum load of __ ____? - Answer -3 hours A continuous load is a load where the maximum current is expected to continue for a certain length of time. This amount of time is? - Answer - 3 hours or more The minimum head room of working space above service equipment, switchboards, panel boards, or motor control centers shall be at least: - Answer -6.5 feet What is the minimum required separation between communication cables and lighting conductors? - Answer -6 feet What is the minimum separation required between coaxial cable in a CATV system and lighting conductors - Answer -6 feet On a radio antenna receiving station what is the minimum clearance between lead-in conductors and conductors f
Geschreven voor
- Instelling
- NM ES-3
- Vak
- NM ES-3
Documentinformatie
- Geüpload op
- 7 juli 2025
- Aantal pagina's
- 11
- Geschreven in
- 2024/2025
- Type
- Tentamen (uitwerkingen)
- Bevat
- Vragen en antwoorden
Onderwerpen
-
nm es 3 test new mexico low voltage journeyman
