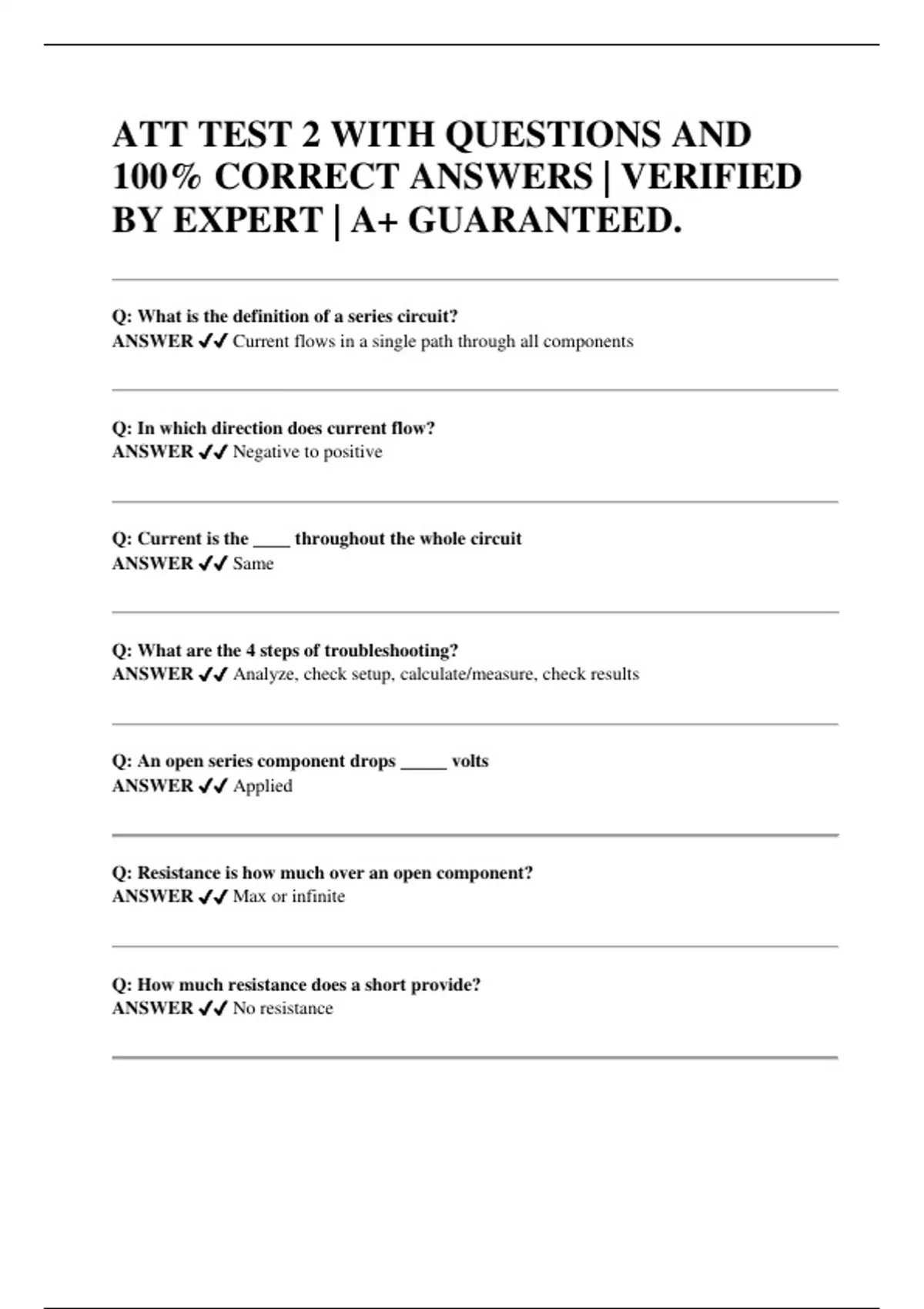

ATT TEST 2 WITH QUESTIONS AND
100% CORRECT ANSWERS | VERIFIED
BY EXPERT | A+ GUARANTEED.
Q: What is the definition of a series circuit?
ANSWER ✔✔ Current flows in a single path through all components
Q: In which direction does current flow?
ANSWER ✔✔ Negative to positive
Q: Current is the ____ throughout the whole circuit
ANSWER ✔✔ Same
Q: What are the 4 steps of troubleshooting?
ANSWER ✔✔ Analyze, check setup, calculate/measure, check results
Q: An open series component drops _____ volts
ANSWER ✔✔ Applied
Q: Resistance is how much over an open component?
ANSWER ✔✔ Max or infinite
Q: How much resistance does a short provide?
ANSWER ✔✔ No resistance
, Q: How many volts do shorts read?
ANSWER ✔✔ 0 volts!!!
Q: Is current or volts the same at all points in a parallel circuit?
ANSWER ✔✔ Volts. Each branch reads applied volts
Q: How much current do open components in a parallel branch have?
ANSWER ✔✔ 0 A
Q: Current is (blank) with an open in a parallel branch
ANSWER ✔✔ Lowered
Q: What happens to current with a short in a parallel branch?
ANSWER ✔✔ Increases to MAX
Q: Opening what series-parallel component will cause amps to be 0?
ANSWER ✔✔ Series component. Volts dropped across open
Q: Current (increases/decreases) if a parallel component opens in series-parallel
ANSWER ✔✔ Decreases
Q: With an open in a parallel branch of a series-parallel circuit: series volt drops
(increase/decrease) and parallel volt drop (increase/decrease)
ANSWER ✔✔ Decrease, increase
Q: Current increases or decreases with a short in a series component (s-p circuit)?
ANSWER ✔✔ Increases
