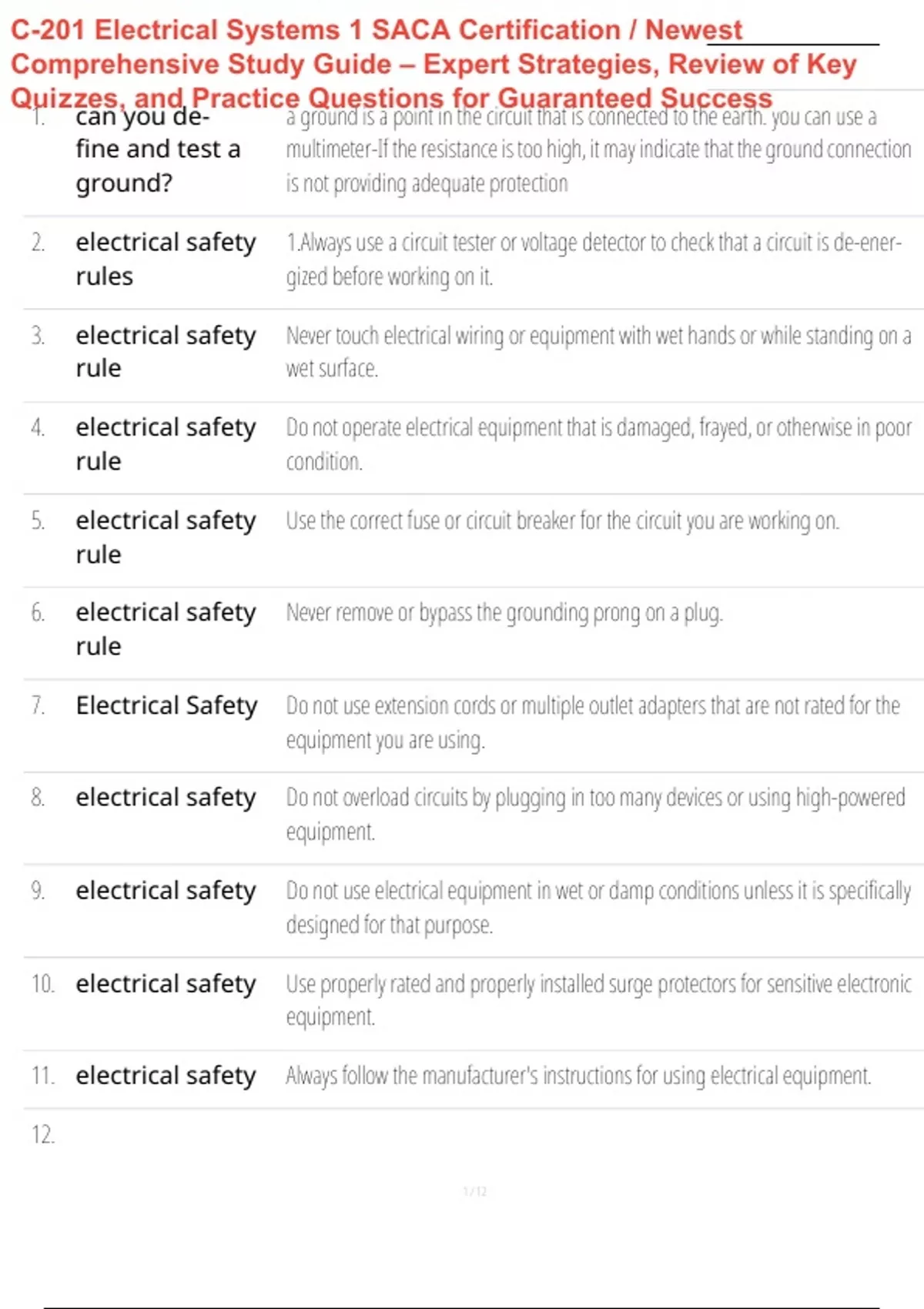

C-201 Electrical
c-201 Electrical Systems sSystems 1 SACA Certification
1 SACA Certification / Newest
Comprehensive Study Guide – Expert Strategies, Review of Key
Study online at https://quizlet.com/_chtcl1
Quizzes, and Practice Questions for Guaranteed Success
1. can you de- a ground is a point in the circuit that is connected to the earth. you can use a
fine and test a multimeter-If the resistance is too high, it may indicate that the ground connection
ground? is not providing adequate protection
2. electrical safety 1.Always use a circuit tester or voltage detector to check that a circuit is de-ener-
rules gized before working on it.
3. electrical safety Never touch electrical wiring or equipment with wet hands or while standing on a
rule wet surface.
4. electrical safety Do not operate electrical equipment that is damaged, frayed, or otherwise in poor
rule condition.
5. electrical safety Use the correct fuse or circuit breaker for the circuit you are working on.
rule
6. electrical safety Never remove or bypass the grounding prong on a plug.
rule
7. Electrical Safety Do not use extension cords or multiple outlet adapters that are not rated for the
equipment you are using.
8. electrical safety Do not overload circuits by plugging in too many devices or using high-powered
equipment.
9. electrical safety Do not use electrical equipment in wet or damp conditions unless it is specifically
designed for that purpose.
10. electrical safety Use properly rated and properly installed surge protectors for sensitive electronic
equipment.
11. electrical safety Always follow the manufacturer's instructions for using electrical equipment.
12.
, c-201 Electrical sSystems 1 SACA Certification
Study online at https://quizlet.com/_chtcl1
purpose of lock- to prevent unexpected energization or startup of machinery or equipment while it
out tag out is being serviced or repaired.
13. state the two AC and DC
types of electrical
current
14. how to use a cir- To test a circuit, first locate the circuit breaker or fuse that controls the circuit you
cuit tester want to test. Then, using the circuit tester, touch the red probe to the live wire and
the black probe to the neutral or ground wire.
15. what is a power The power source is the source of electrical energy for the circuit. It can be a battery,
source a generator, or a power outlet. The power source provides the electrical current
that flows through the circuit.
16. what is a conduc- The conductor is a material that allows electricity to flow through it, such as a wire.
tor The conductor carries the electrical current from the power source to the load.
17. what is a load The load is the device or appliance that is being powered by the circuit. It can be a
light bulb, a motor, or any other device that uses electricity. The load converts the
electrical energy from the circuit into some other form of energy, such as light or
motion.
18. what is a switch The switch is a device that is used to control the flow of electrical current in the
circuit. It can be used to turn the circuit on or off, allowing the load to be powered
or de-powered as needed.
19. two types of pow- AC and DC
er supplies and
schematic sym-
bol
20. be able to inter- on youtube look up engineering mindset- Single Phase Electricity Explained -
perate an elec- wiring diagram energy meter
