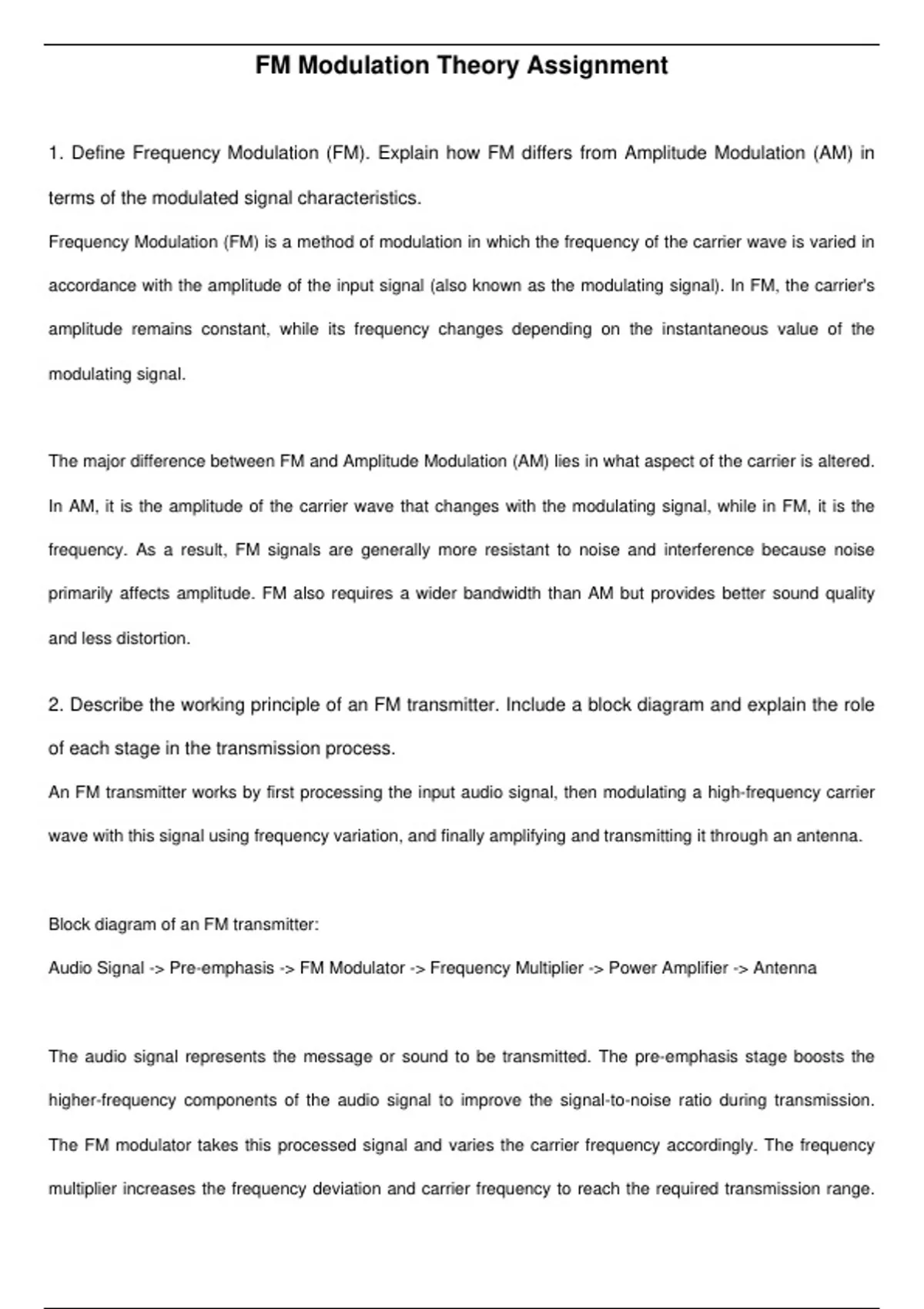

FM Modulation Theory Assignment
1. Define Frequency Modulation (FM). Explain how FM differs from Amplitude Modulation (AM) in
terms of the modulated signal characteristics.
Frequency Modulation (FM) is a method of modulation in which the frequency of the carrier wave is varied in
accordance with the amplitude of the input signal (also known as the modulating signal). In FM, the carrier's
amplitude remains constant, while its frequency changes depending on the instantaneous value of the
modulating signal.
The major difference between FM and Amplitude Modulation (AM) lies in what aspect of the carrier is altered.
In AM, it is the amplitude of the carrier wave that changes with the modulating signal, while in FM, it is the
frequency. As a result, FM signals are generally more resistant to noise and interference because noise
primarily affects amplitude. FM also requires a wider bandwidth than AM but provides better sound quality
and less distortion.
2. Describe the working principle of an FM transmitter. Include a block diagram and explain the role
of each stage in the transmission process.
An FM transmitter works by first processing the input audio signal, then modulating a high-frequency carrier
wave with this signal using frequency variation, and finally amplifying and transmitting it through an antenna.
Block diagram of an FM transmitter:
Audio Signal -> Pre-emphasis -> FM Modulator -> Frequency Multiplier -> Power Amplifier -> Antenna
The audio signal represents the message or sound to be transmitted. The pre-emphasis stage boosts the
higher-frequency components of the audio signal to improve the signal-to-noise ratio during transmission.
The FM modulator takes this processed signal and varies the carrier frequency accordingly. The frequency
multiplier increases the frequency deviation and carrier frequency to reach the required transmission range.
, The power amplifier strengthens the signal to a level suitable for broadcasting. Finally, the antenna radiates
the signal into space.
3. What is frequency deviation in FM? How does the frequency deviation affect the bandwidth of an
FM signal?
Frequency deviation in FM is the maximum amount by which the carrier frequency is allowed to shift above or
below its unmodulated center frequency due to the presence of the modulating signal. It represents the extent
of frequency variation from the normal carrier frequency and is typically expressed in kilohertz (kHz).
The frequency deviation directly influences the bandwidth of the FM signal. A higher frequency deviation
means the signal occupies a larger portion of the frequency spectrum. Therefore, as frequency deviation
increases, the bandwidth required to transmit the signal also increases. This makes wideband FM more
suited for high-fidelity applications like music broadcasting.
4. State and explain Carson's Rule. How is Carson's Rule used to determine the bandwidth of an
FM signal?
Carson's Rule is an approximation used to estimate the bandwidth required to transmit a
frequency-modulated signal effectively. It is expressed mathematically as:
Bandwidth = 2 × (Maximum Frequency Deviation + Maximum Modulating Frequency)
That is,
B = 2(f + fm)
Where f is the maximum frequency deviation of the carrier, and fm is the highest frequency component of the
modulating signal.
This rule helps engineers determine how much frequency space an FM signal will occupy in a communication
channel. By applying Carson's Rule, one can ensure that most of the significant energy of the FM signal is
