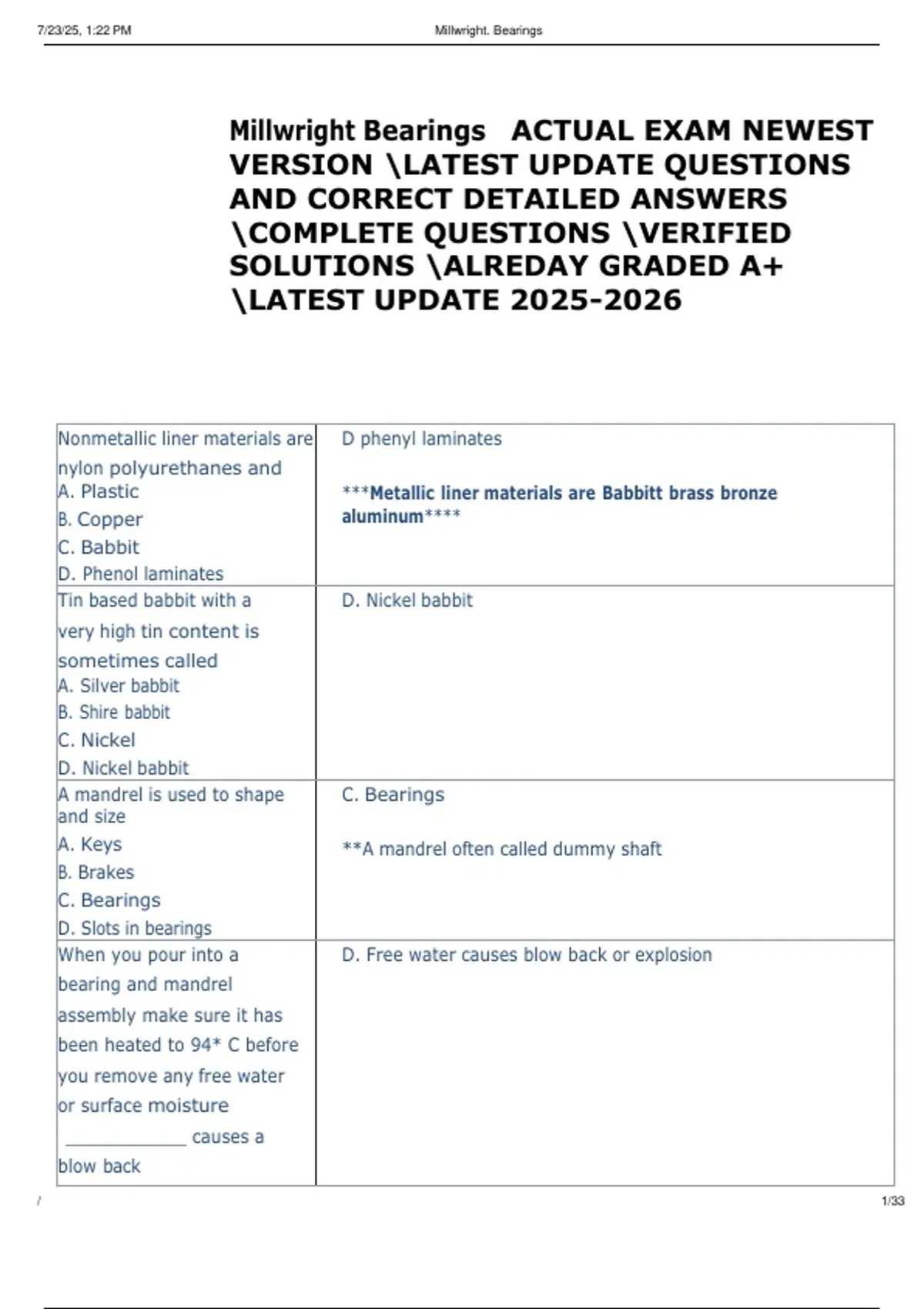

7/23/25, 1:22 PM Millwright. Bearings
Millwright Bearings ACTUAL EXAM NEWEST
VERSION \LATEST UPDATE QUESTIONS
AND CORRECT DETAILED ANSWERS
\COMPLETE QUESTIONS \VERIFIED
SOLUTIONS \ALREDAY GRADED A+
\LATEST UPDATE 2025-2026
Nonmetallic liner materials are D phenyl laminates
nylon polyurethanes and
A. Plastic ***Metallic liner materials are Babbitt brass bronze
B. Copper aluminum****
C. Babbit
D. Phenol laminates
Tin based babbit with a D. Nickel babbit
very high tin content is
sometimes called
A. Silver babbit
B. Shire babbit
C. Nickel
D. Nickel babbit
A mandrel is used to shape C. Bearings
and size
A. Keys **A mandrel often called dummy shaft
B. Brakes
C. Bearings
D. Slots in bearings
When you pour into a D. Free water causes blow back or explosion
bearing and mandrel
assembly make sure it has
been heated to 94* C before
you remove any free water
or surface moisture
_____________ causes a
blow back
/ 1/33
,7/23/25, 1:22 PM Millwright. Bearings
or explosion.
A. Heat
B. Shrinkage
C. Casting
D. Free water
The top edge of the bearing D. Chamfered
must be _______ almost to
the corners this channel is
the
lubricant to the shaft
A. Keys
B. Cut
C. Relieved
D. Chamfered
This prevents binding or A. Clearance
clamping action on the
shaft
A. Clearance
B. Tolerance
C. Deviation
D. Fitt
Shims are made for material C. Oil
that will not compress and is
not affected by
A. Rotational speed
B. Axis diameter
C. Oil
D. Compression
In general any shaft bearing D. Medium to loose
assembly with constant
One Direction load and
rotation bearing
clearance can be from
A. Medium to light
B. Light to heavy
/ 2/33
,7/23/25, 1:22 PM Millwright. Bearings
C. Medium to heavy
D. Medium to loose
With reversing rotation and D. Medium to tight
fluctuating load bearing
clearance can be from ** with reciprocating action clearance must be tight
A. Medium to light
B. Light to heavy
C. Medium to heavy
D. Medium to tight
Thrust of a shaft is a. shaft shoulder
controlled by the a
a. shaft shoulder
b. thrust washer
c. shaft collar
d. bearing cover
Thrust in a plain bearing is c. shaft collar
controlled by
a. shaft shoulder
b. thrust washer
c. shaft collar
d. bearing cover
Amount the shaft moves axially c. end float
in a bearing
a. clearance
b. tolerance
c. end float
d. axial diameter
This special thrust bearing d. Kingsbury bearing
is designed to take high
speeds and heavy loads. It A revolving ring with a flat contact surface, usully hardened and
ground
comes in a variety of styles
a. guide bearing
b. shoe bearing
c. bushings
d. Kingsbury bearing
/ 3/33
, 7/23/25, 1:22 PM Millwright. Bearings
Kingsbury thrust bearings c. fixed pad, floating pad
come in the following styles
a. fixed, pitted -Fixed pad has convex backing
b. tilting pad, pit pad -floating pad individual load blocks
c. fixed pad, floating pad
d. tilting pad, twist pad
A ____ bearing is used as a. guide bearing
positioning
device or guide for linear
motion. It is used for such
things as machining tools
and gas compressors
a. guide bearing
b. shoe bearing
c. bushings
d. Kingsbury bearing
The _____ bearing is a split c. pivoted shoe
journal
bearing, used mostly for high
speeds and shaft
stabilization
a. guide bearing
b. shoe bearing
c. pivoted shoe
d. Kingsbury bearing
The advantages of _ bearings c. anti friction
are
versatility, low friction
operation, ability to be
packed to avoid frequent
lubrication
a. friction
b. thrust
c. anti friction
d. guide
/ 4/33
