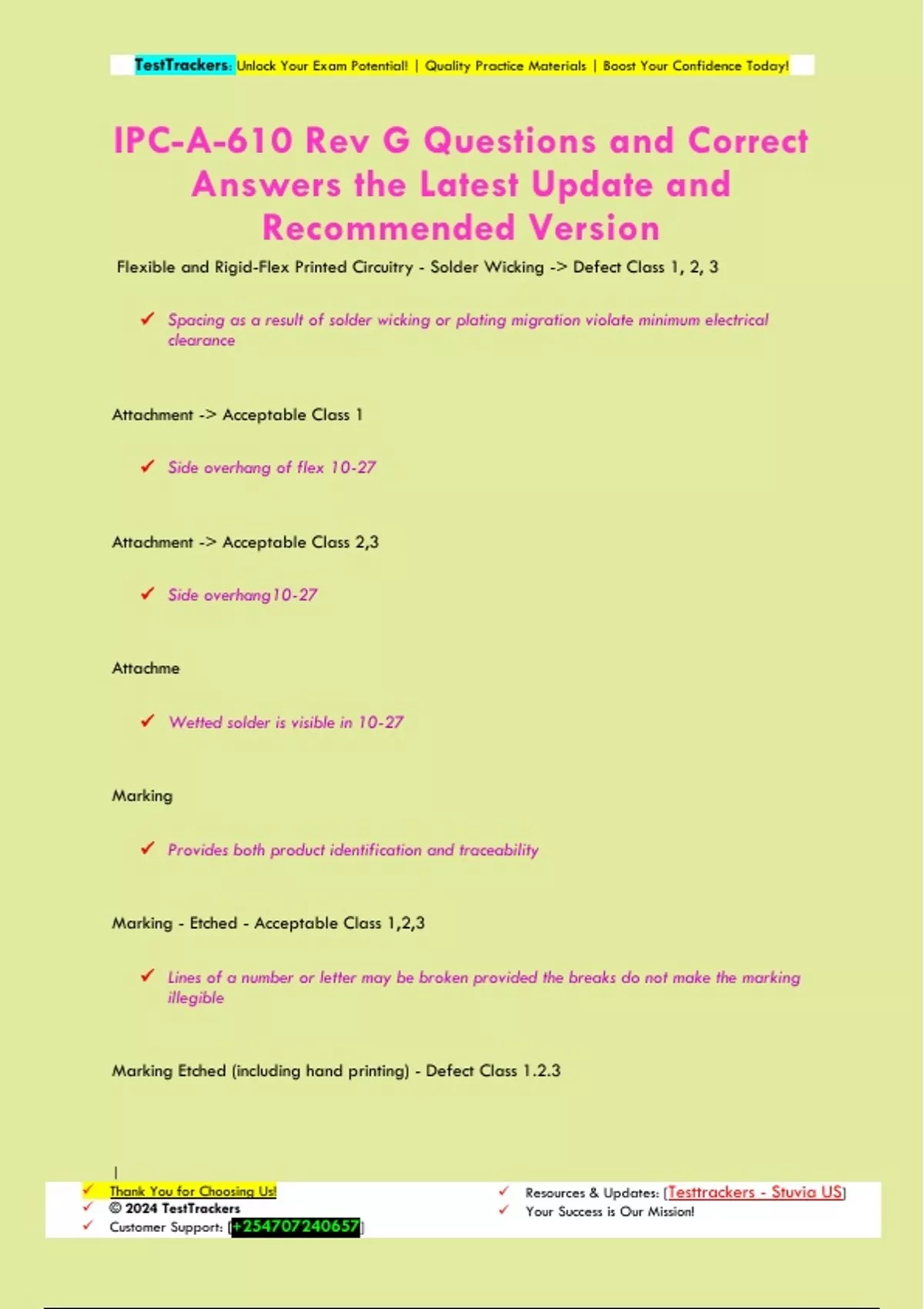

IPC-A-610 Rev G Questions and Correct
Answers the Latest Update and
Recommended Version
Flexible and Rigid-Flex Printed Circuitry - Solder Wicking -> Defect Class 1, 2, 3
✓ Spacing as a result of solder wicking or plating migration violate minimum electrical
clearance
Attachment -> Acceptable Class 1
✓ Side overhang of flex 10-27
Attachment -> Acceptable Class 2,3
✓ Side overhang10-27
Attachme
✓ Wetted solder is visible in 10-27
Marking
✓ Provides both product identification and traceability
Marking - Etched - Acceptable Class 1,2,3
✓ Lines of a number or letter may be broken provided the breaks do not make the marking
illegible
Marking Etched (including hand printing) - Defect Class 1.2.3
|
✓ Thank You for Choosing Us! ✓ Resources & Updates: [Testtrackers - Stuvia US]
✓ © 2024 TestTrackers ✓ Your Success is Our Mission!
✓ Customer Support: [+254707240657]
, TestTrackers: Unlock Your Exam Potential! | Quality Practice Materials | Boost Your Confidence Today!
✓ Lines forming a character are missing or broken to the extent that the character is not
legible or is likely to be confused with another character
Marking - Screened | Process Indicator - Class 1,2,3
✓ Lines of a number or letter may be broken (or the ink thin over a portion of
Marking - Screened | Defect - Class 1,2,3
✓ Open areas of characters are filled and are not legible, or are likely to be confused with
another number or letter
Marking - Stamped | Acceptable - Class 1, Process Indicator - Class 2,3
✓ - Marking that has been smeared or blurred but is still legible
✓ - Multiple stamped markings are acceptable provided the general intent can be
determined
Marking - Laser | Acceptable - Class 1, Process Indicator - Class 2,3
✓ - Multiple image is still legible
✓ - Missing marking is not more than 10% of the character
kjlkj
✓
Marking - Lables - Readability | Acceptable - Class 1,2,3
✓ Spots or voids on printed surfaces or machine is readable code as permiss
Defect- Class 1,2,3
|
